"304 stainless steel, rust-resistant, long-lasting wire rope clip for outdoor use" Made of high-quality 304 stainless steel that is resistant to rust, suitable for long-term outdoor installation.
Excellent heat resistance and strength, making it suitable for fixing outdoor air conditioning units, securing ship ropes, and wire tying at construction sites, maintaining a clean appearance even when exposed to rain and wind.

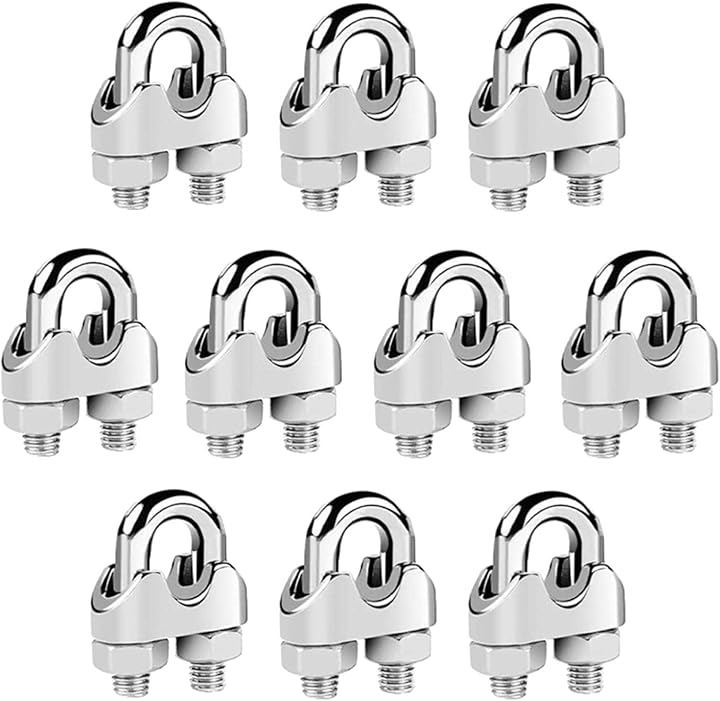

Simple structure consisting of U-bolt + main clip + two hex nuts, providing solid support for end processing of wire ropes.

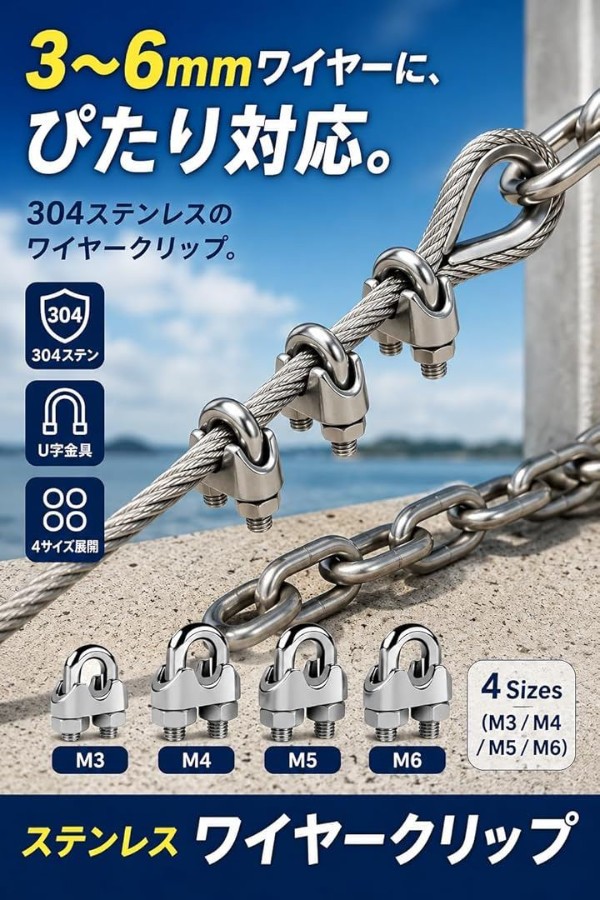

"Available in 4 sizes from M3 to M6, with model numbers indicating wire diameter (mm)" M3 supports 3mm, M4 supports 4mm, M5 supports 5mm, and M6 supports 6mm wire ropes, with clear model number = wire diameter notation, offering 4 sizes.
A wide lineup available to match your wire diameter.
You can select the optimal size according to your wire diameter and application.

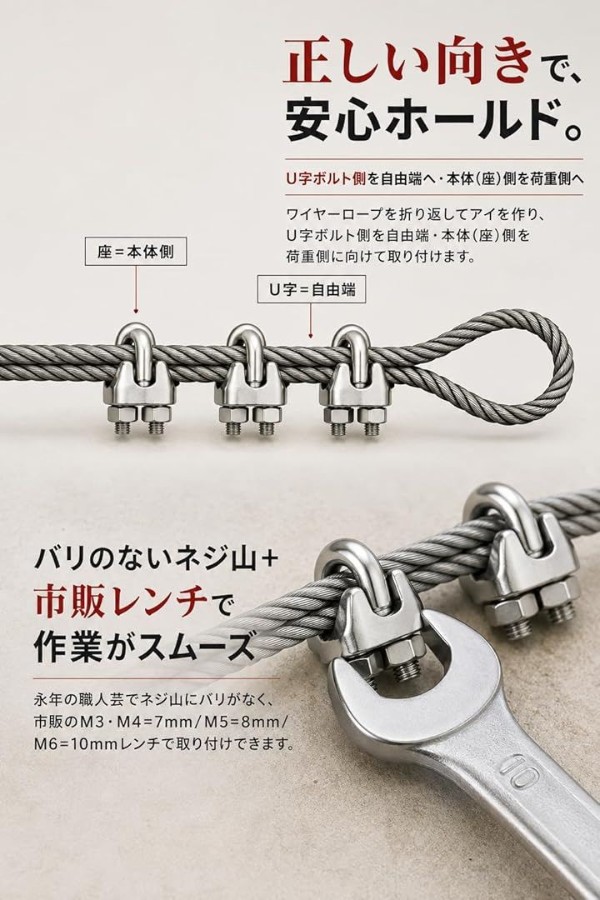

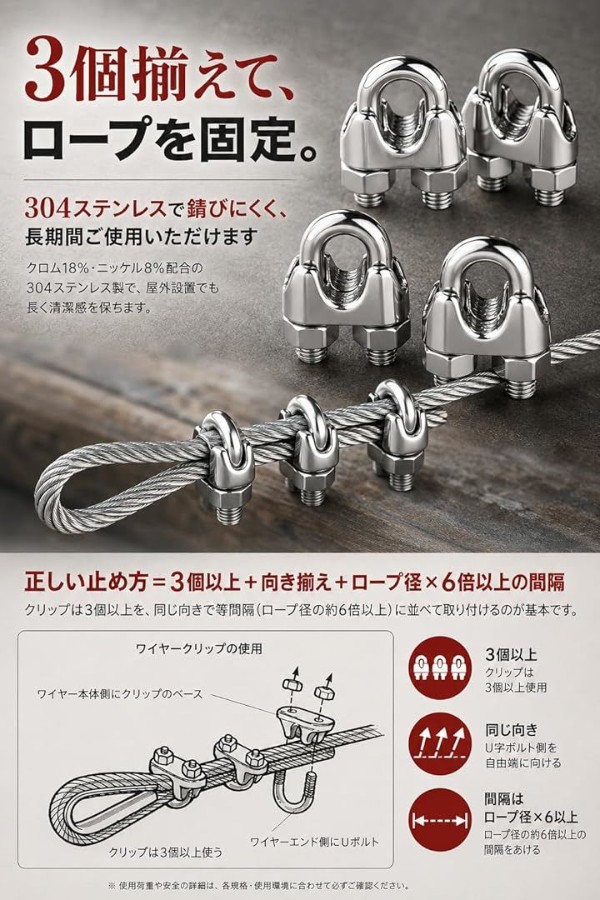

"Correct fastening points: use 3 or more clips, align the orientation, and space at least 6 times the rope diameter" It is basic to use 3 or more wire clips, attach with the U-bolt side as the free end (dead end), and the main body (seat) side facing the load side.
Create an eye (loop) by folding back the wire rope, then fix by overlapping the folded end with the main rope.
Ensure the spacing between clips and the length of the end rope is at least about 6 times the rope diameter.
Retighten the nuts after applying load in both directions.
"Smooth screw threads without burrs + anti-slip processed inner wall + available wrench sizes" Processed with craftsmanship over many years, resulting in no burrs and a smooth finish.
The inner wall of the U-shaped fitting has anti-slip processing with unevenness, increasing friction with the wire rope for a secure fit.
Recommended wrench sizes are common tools available in sizes M3 and M4=7mm, M5=8mm, M6=10mm, allowing quick installation with your existing spanner, and the set of 10 pieces is suitable for DIY and field use.

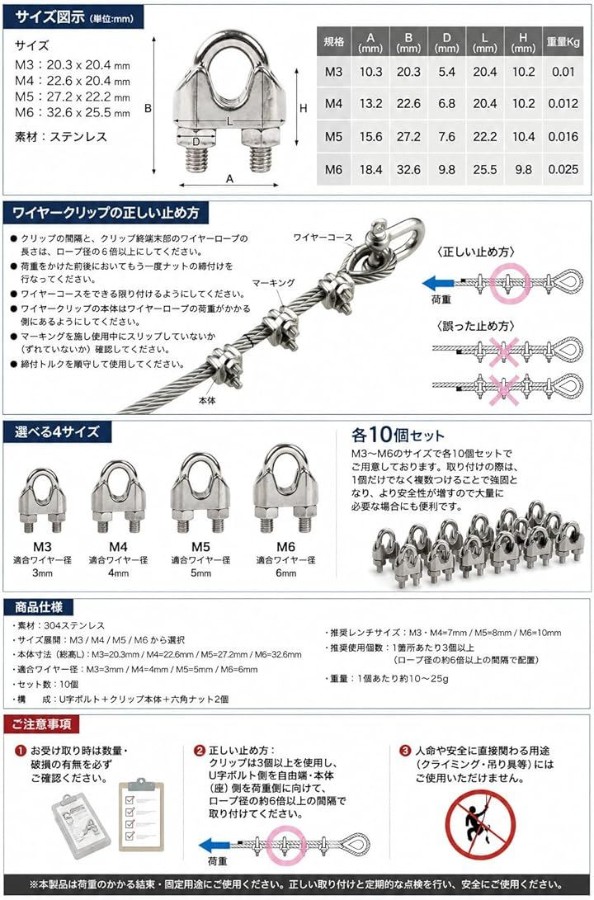

Material: 304 stainless steel / Size: M3 (total height 20.3mm / compatible wire diameter 3mm) / Set quantity: 10 pieces / Composition: U-bolt + main clip + 2 hex nuts / Recommended wrench sizes: M3/M4=7mm, M5=8mm, M6=10mm / Recommended number per location: 3 or more (arranged at intervals of at least 6 times the rope diameter) / Weight: approximately 10-25g per piece
"Precautions" Please check the quantity and for any damage upon receipt.
As a correct fastening method, use 3 or more clips, attach with the U-bolt side as the free end and the main body (seat) side as the load side, and install at intervals of at least 6 times the rope diameter.
This product is not suitable for applications directly related to human life or safety (climbing,吊具, etc.).
2026/07/06 17:12:23#a7c23bbaace2d7d0f128be5ec57ffc9e93dcbff2
| Product # | 2B2YJPGW9K |
|---|---|
| Weight | 90 g |
| Specifications |
サイズ: M3 |
