[Features]
● Uses an aluminum lightweight coupling for extremely smooth workability when attaching air tools.
● Achieves surprising flexibility with the use of special resin for the hose.
● Compatible with general couplings.
● Uses a resin spring guard on the socket side, making it resistant to breakage.
● Small bending radius and excellent workability. (Minimum bending radius 40mm)
[Applications]
● For air tools (tackers, nail guns, impact wrenches).
● For air tools/paint spraying in factories.
[Specifications]
● Color: Green (orange line)
● Outer diameter (mm): 10
● Inner diameter (mm): 6.5
● Total length (m): 20
● Wall thickness (mm): 1.75
● Fluid: Air
[Specifications 2]
● Fluid temperature: -5 to 60°C (do not freeze)
● Operating pressure: 1MPa (at normal temperature)
● With couplings on both ends
[Materials/Finish]
● Hose: Special elastomer

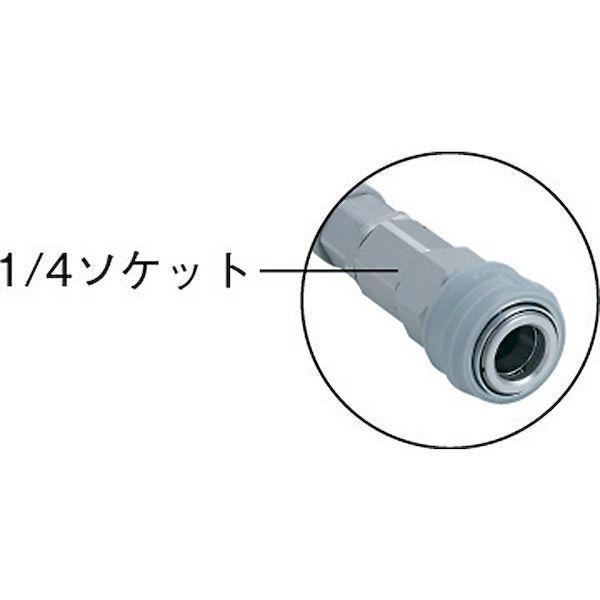

● Socket: Aluminum (with resin spring guard)

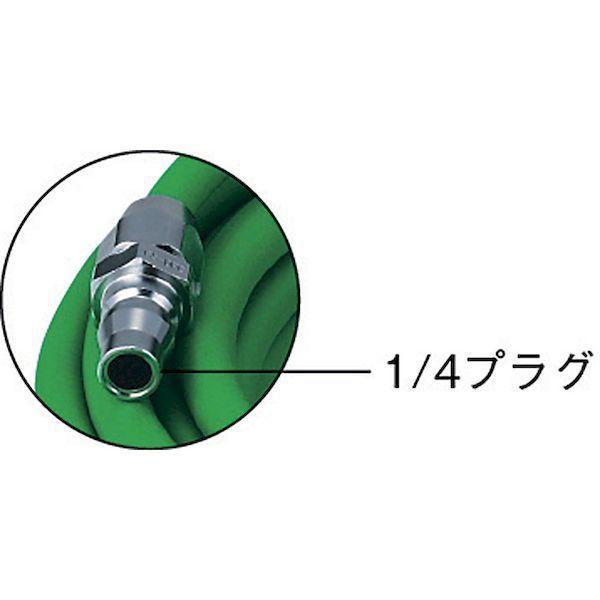

● Plug: Iron
[Notes]
● Do not use in locations where the connection fitting may be subjected to impact or snagging (such as floor steps or checkered plate joints). This can lead to unexpected accidents such as "connection fittings coming off".
● Separate the connection fittings while holding the fitting by hand.
● After connecting, pull lightly on both sides of the connection fittings to confirm that they are securely connected.
● The normal temperature environment for operating pressure is approximately 20°C.
[Country of Origin]
Japan
| Product # | ED546435 |
|---|
