[Features]
● Excellent stability and turning performance unique to double caster wheels.
● The stopper is a single stopper type that can firmly fix the wheels by entering the groove with a one-touch operation of the lever.
● RoHS 2 directive compliant product.
● This is the most versatile product among small double caster wheels.
[Applications]
● Widely applicable to products for indoor use such as store fixtures, medical fixtures/equipment, and office furniture.
[Specifications]
● Load capacity (daN): 40
● Load capacity (kgf): 40

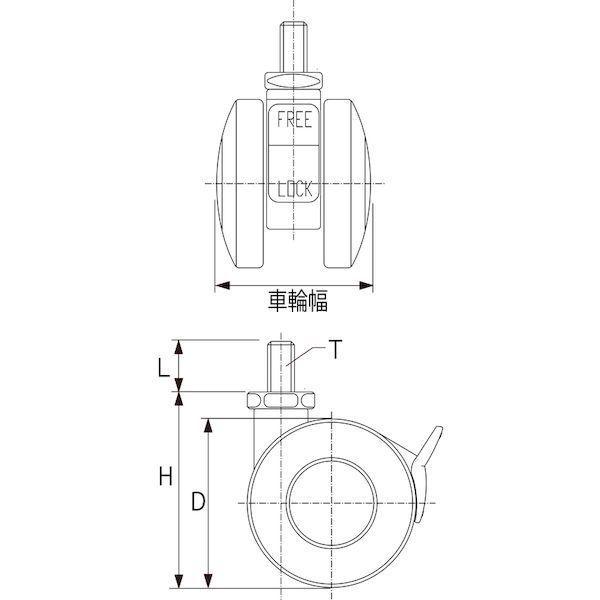

● Wheel diameter D (mm): 40
● Wheel width (mm): 40.5
● Mounting height H (mm): 47
● Spindle length L (mm): 15
● Screw T: M8
● Screw pitch (mm): 1.25
● Color: Black
● Flat diameter (mm): 14
● Swivel radius (mm): 44
[Specifications 2]
● Screw-in type
● Swivel with stopper
● Swivel type (with stopper)
[Materials/Finish]
● Fitting: Carbon steel for cold forging (SWCH)
● Fitting surface treatment: Trivalent chromium plating finish
● Body: Nylon
● Wheels: Nylon
[Notes]
● Mounting can be shortened by using the lower hexagon. Partially fix with an electric drill, and always perform final tightening with a manual wrench. Please note that excessive tightening torque may cause breakage.
[Country of Origin]
Japan
| Product # | ED3304524 |
|---|
