Features
●Since it uses flame-retardant polyurethane resin, it prevents melting and ignition caused by sparks such as splashes.
●It has characteristics similar to polyurethane hoses, such as lightweight, flexibility, and abrasion resistance, making it easy to handle.
●The outer sheath is made of water-resistant polyurethane material, offering excellent weather resistance, so it is safe for outdoor work.
Applications
●For pneumatic and instrumentation control equipment, etc.
Specifications
●Color: Green
●Outer diameter (mm): 10
●Inner diameter (mm): 6.5
●Total length (m): 10
●Wall thickness (mm): 1.75
●Working pressure (MPa): 1.5
●Fluid used: Air
●Allowable bending radius: SPB-6.5-10 50mm, SPB-8.5-10 60mm, SPB-11-10 80mm
●Connecting fittings: CHS-6.5H-MP/C4P-6.5H
Specifications 2
●Fluid temperature: -5 to 60°C (without freezing)
●Operating pressure: 1.5 MPa (at room temperature)

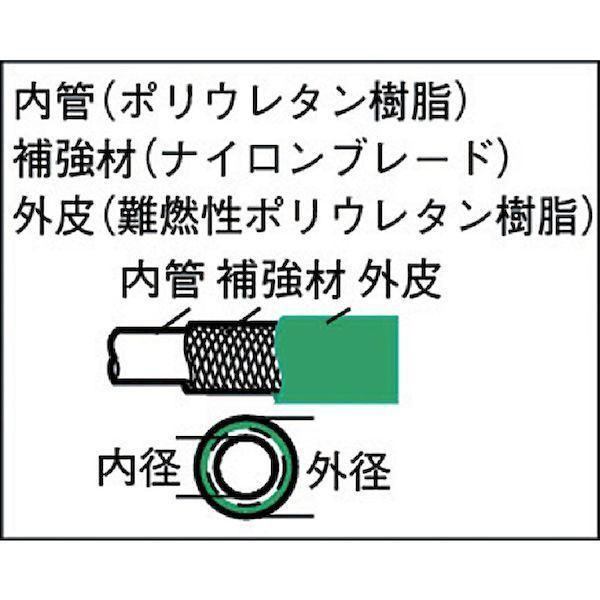

Materials/Finish
●Flame-retardant polyurethane resin
Precautions
●Do not use in places where connecting fittings may be subjected to impact or snagging (such as floor steps or seam plates), as this can cause unexpected accidents such as the connection fittings popping out.
●Disconnect the connecting fittings while holding the fittings by hand.
●After connecting, lightly pull from both sides to confirm that the fittings do not come apart.
●The ambient temperature for normal operating pressure is approximately 20°C.
Country of origin
Japan
| Product # | 796-28398 |
|---|
