**Features**
Lightweight and compact design. This handheld scanner features a compact design that is easy for anyone to operate. It offers high cost performance, extensive customization options, and excellent scanning capabilities. It can be utilized in various settings such as offices, retail stores, logistics, warehouses, libraries, schools, and for personal book collection management. It can also comfortably read barcodes displayed on LCD screens. Notifications via buzzer, vibration, and LED make it easy to understand even in noisy environments.

**2.4G Wireless / USB Cable Data Transmission Both Supported**
No dedicated driver is required; simply connect to your computer via USB cable or dongle for immediate use. If your scanning workspace is outside the transmission range, you can use the data storage mode.

**Long-Term Use Possible**

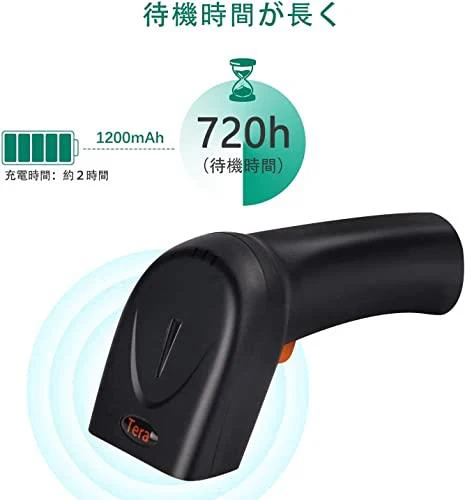

With its small size and a weight of only 115g, it is comfortable for extended use without fatigue. The built-in 1200mAh battery allows for 3-5 days of normal use. A 2-hour charge can provide a standby time of approximately 30 days. It also boasts high impact resistance, capable of withstanding multiple drops from a height of 1.5 meters onto a concrete floor.

**Customizable Settings for Operating Modes, Scanning Methods, etc.**

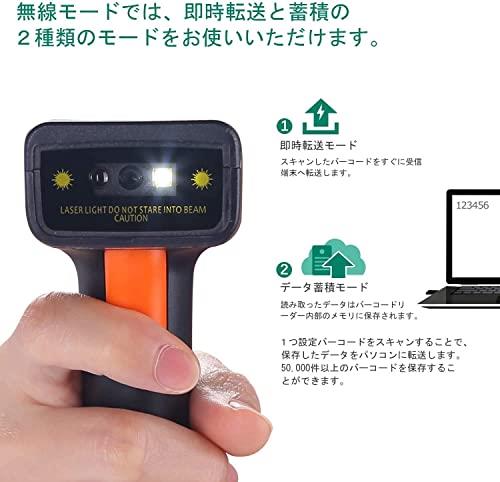

You can configure the scanner to transmit read data immediately or to store it for batch transmission later. It can temporarily store approximately 50,000 barcode data entries in its memory. Scanning methods can be set to trigger mode, continuous scan mode, or auto-detection mode.

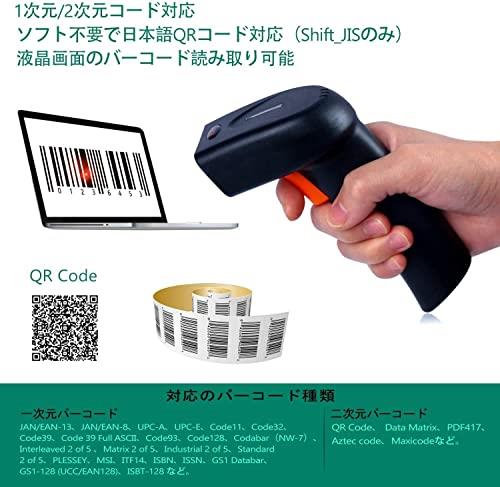

**Supports Common 1D and 2D Symbols**
2D: QR Code, Data Matrix, PDF417, Aztec code, Maxicode.
1D: JAN/EAN-13, JAN/EAN-8, UPC-A, UPC-E, Code11, Code32, Code39, Code 39 Full ASCII, Code93, Code128, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5, PLESSEY, MSI, ITF14, ISBN, ISSN, GS1 Databar, GS1-128 (UCC/EAN128), ISBT-128, etc.
*Note: Does not support GS1 Databar medical barcodes.*

**Barcode Reader Specifications:**
* Communication Distance: 100m (no radio interference), 10-50m (with obstacles)
* Memory Capacity: 16MB, over 50,000 barcodes
* Operating Time: 3-5 days
* Decoder: ARM Cortex 32bit
* Error Rate: 1/20,000,000
* Button Lifespan: 8,000,000 times
* Interface: USB
* Charging Voltage/Current: 5V/1A
* Continuous Operation Time: Approx. 8 hours at room temperature (scanning once every 5 seconds)
* Charging Time: Approx. 2 hours
* Standby Time: Approx. 30 days
* Operating Temperature: 0℃ to 40℃
* Storage Temperature: -40℃ to 60℃
* Humidity: 5% to 95% (non-condensing)
* Drop Resistance: Can withstand multiple impacts from a drop of approximately 1.5 meters onto a concrete floor.
* Supported OS: Windows XP, Win7, Win8, Win10, Mac.

**Product Features:**
* Can read barcodes on LCD screens.
* Trigger Modes: Button trigger mode, automatic continuous scan mode, auto-detection mode.
* Data Transmission Method: Read data can be set to transmit immediately or to transmit in batches after storage. Approximately 50,000 barcode data entries can be temporarily stored in memory.
* Drop-resistant structure with a 1.5m drop height.
* Built-in 1200mAh battery allows for long-term use.
* Supports the following barcodes:
* 2D Barcodes: QR Code, Data Matrix, PDF417, Aztec code, Maxicode.
* 1D Barcodes: JAN/EAN-13, JAN/EAN-8, UPC-A, UPC-E, Code11, Code32, Code39, Code 39 Full ASCII, Code93, Code128, Codabar (NW-7), Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5, PLESSEY, MSI, ITF14, ISBN, ISSN, GS1 Databar, GS1-128 (UCC/EAN128), ISBT-128.

**Package Contents:**
* Barcode Scanner x 1
* USB Cable x 1
* Receiver x 1

**Frequently Asked Questions:**
1. **Outputting data including Japanese characters:** Set to "Japanese QR Setting" on page 10 of the manual. (Default is "OFF")
2. **Reading Jan-13 with a leading "0" without removing the "0":** Set to "Convert UPC-A to EAN-13 - ON" on page 11 of the manual. (Default is "OFF")
3. **Codabar (NW-7) not readable:** Set to "Codabar (NW7) - ON" on page 14 of the manual. (Default is "OFF")
4. **Removing leading/trailing alphabets (start/stop characters) from Codabar (NW-7):** Set to "Codabar (NW7) - Do not transmit start/stop characters" on page 14 of the manual. (Default is "ON")
5. **Adding "*" at the beginning/end of Code39:** Set to "Code39 - Transmit start/stop characters" on page 13 of the manual. (Default is "OFF")
6. Some settings in the manual are module settings and do not produce a reading sound. Successful setting can be confirmed by the LED indicator.
