[Features]

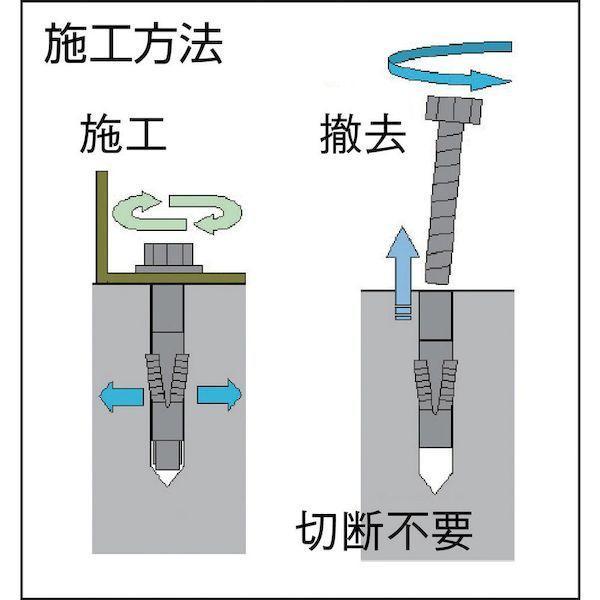

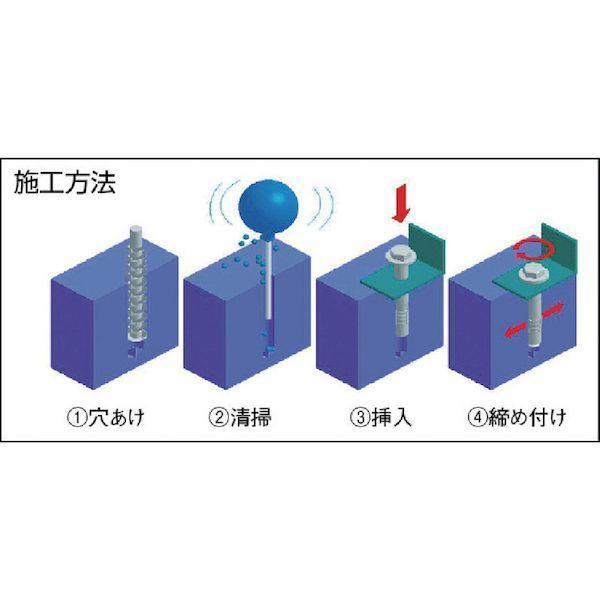

● Installation requires no hammering; simply insert into the pilot hole and turn.
● Completion of installation can be visually confirmed by the crushing of the dome washer.
● Removal requires no cutting; simply turn the bolt to detach.
[Applications]
● For concrete.
● For installation work of various mechanical equipment, etc.
● For anchor installation in difficult-to-hammer locations, such as ceilings.
● For mounting signs, signal lights, etc.
● For anchor installation in narrow spaces.
[Specifications]
● Screw size: M8
● Maximum tensile load (kN): 12.4
● Outer diameter (mm): 10
● Length (mm): 65
● Embedment depth (mm): 75
● Pilot hole diameter (mm): 10.5
● Tightening torque (N・m): 25
[Specifications 2]
● Boxed
● Since the wings expand by turning, it is not affected by the accuracy of the pilot hole diameter.
● Not affected by concrete conditions.
● No special tools are required, allowing installation with general tools.
● Can be adapted to various situations depending on the combination.

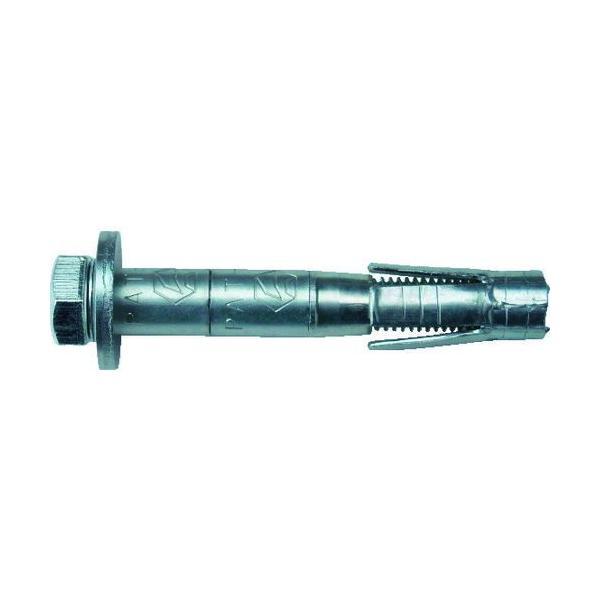

● Hex bolt type.
[Materials/Finish]
● Steel
● Surface treatment: Trivalent chromate finish
[Notes]
● The maximum tensile load is the value at a concrete strength of Fc23.8N/m² [M2].
[Country of Origin]
Japan
| Product # | ED1559236 |
|---|
