C型のスナップリングの着脱、取り外しするための専用工具です。
商品説明:仕様
概要仕様
全長:約16センチ
先端サイズ1.8mm
爪先端径:1.8mmφ
使用範囲:径10~50mmφ(軸用・穴用)
コンビネーションスナップリングプライヤー
特徴
スナップリングは目立たないものですが、きちんと装着されていないと、軸やベアリングが少しずつ動き、最終的に部品が外れてしまうことがあるので、意外と重要な部品。
扱いづらい場所で使われることが多いため、ほかの工具で代用するのではなく、専用の工具であるスナップリングプライヤーを使用することで正しく着脱を行えます。
商品詳細説明

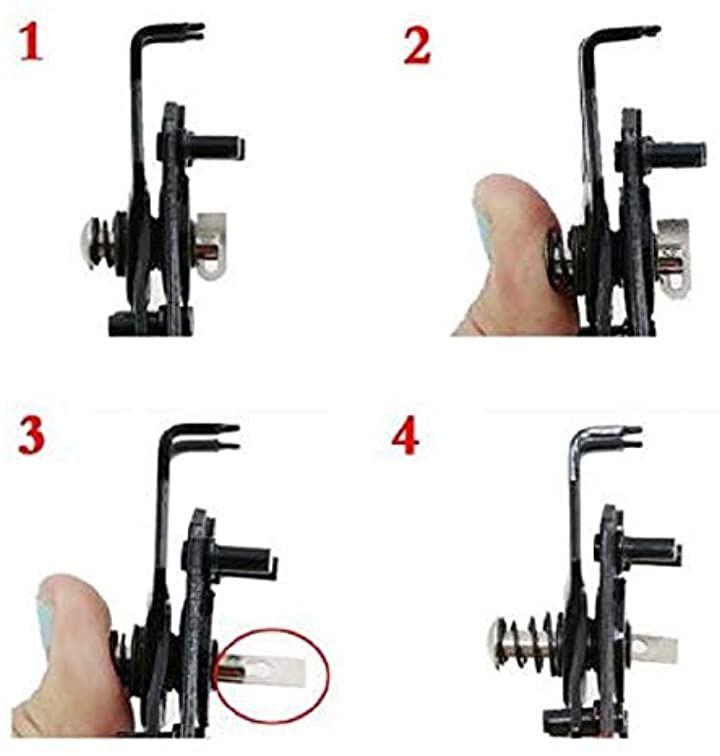

交換用ヘッド

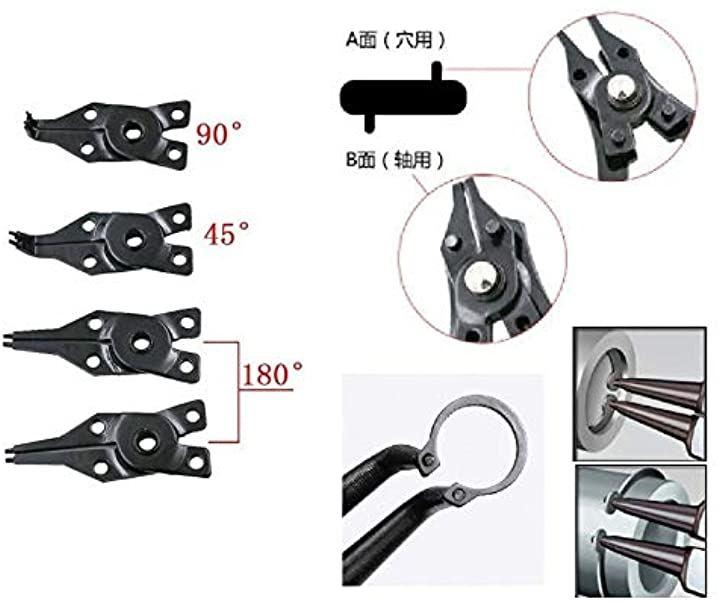

コンビネーションスナップリングプライヤーは、180度・90度・45度、3種類の交換用ヘッドで6通りの使い方ができます。
着脱方法
「C型止め輪」とも呼ばれるスナップリングは、自動車部品などの固定によく使われるもの。
シャフト(軸)にはめた部品などを抜け落ちないようにする、ストッパーとしての役割を果たします。

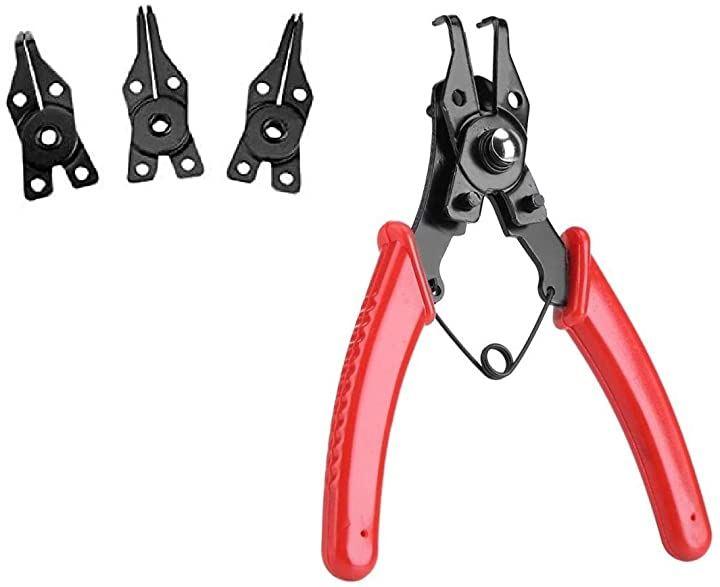

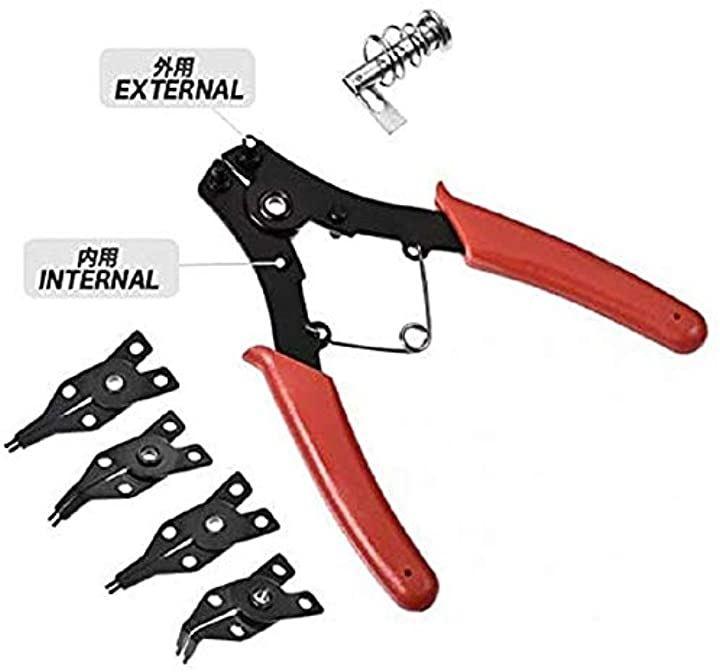

コンビネーションスナップリングプライヤー本体
1本でシャフト用、内径用の両方の機能を備えたモデルで、先端部分を交換して使用するものです。

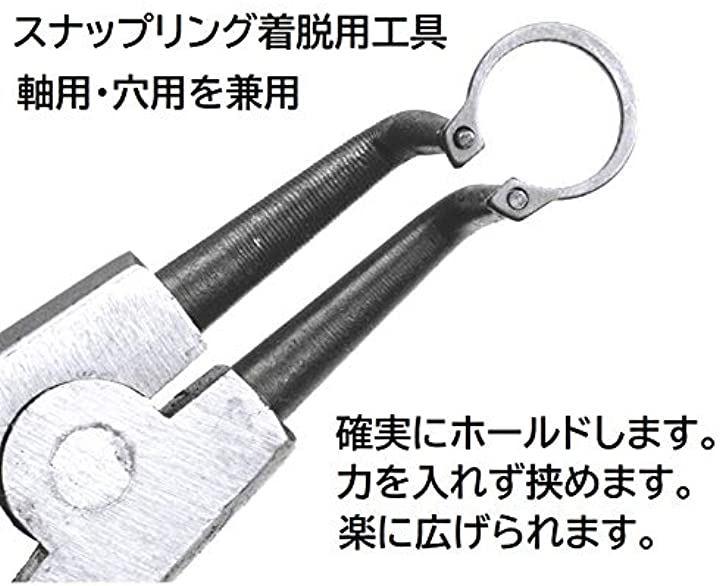

軸用、穴用兼用説明
軸用にも穴用にも両方使えます。
スナップリングの着脱時に先端をリングの軸や穴に合わせて開きます。
・「用途」C型のスナップリングの着脱用に使用する専用工具です。
・「利用」スナップリングの着脱時に先端をリングの軸や穴に合わせて開きます。
・「方法」コンビネーションスナップリングプライヤーは、180度・90度・45度、3種類の交換用ヘッドで6通りの使い方ができます。
・「機能」軸用にも穴用にも両方使えます。
・「仕様」全長:約16センチ / 先端サイズ 1.8mm、高品質の炭素鋼製、付属:180度 2個 / 45度 1個 / 90度 1個、爪先端径:1.8mmφ、使用範囲:径 10~50mmφ(軸用・穴用)
