Shinwa Measurement
Manufacturer inquiry: 0120-666-899
【Product Description】
●Features

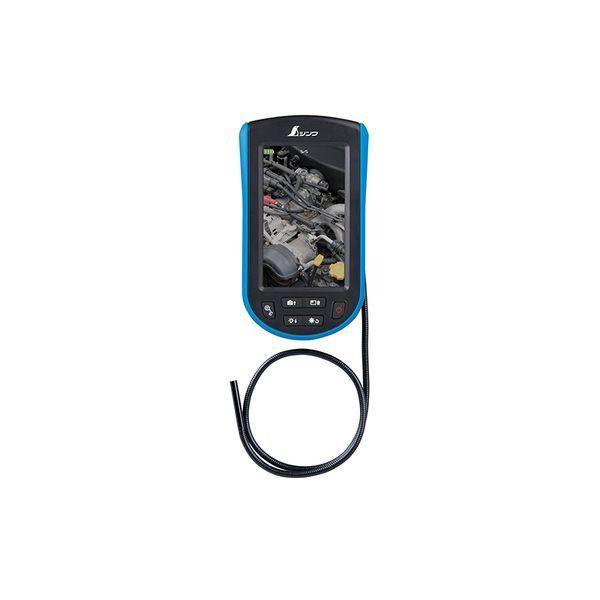

●Captured with a high-resolution camera and confirmed on a large color LCD.
●Simple operation makes it easy to use.

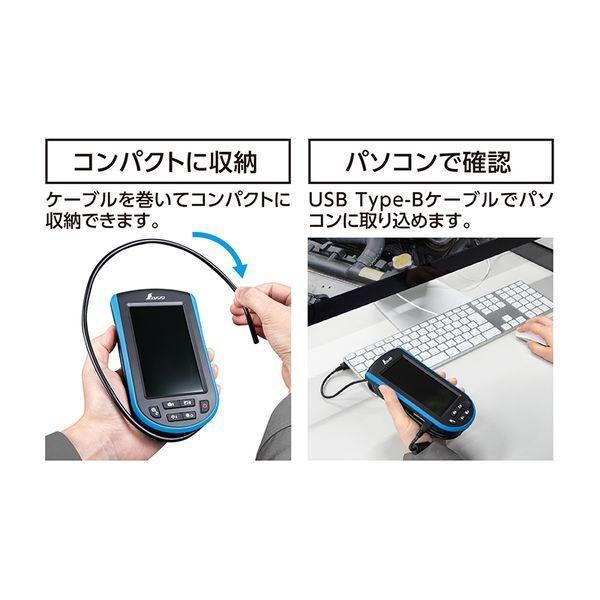

●Can be stored by winding the cable, making it compact.
●Equipped with an ultra-compact camera head (φ5.2mm) and a slender camera cable (φ5.0mm×1m), allowing insertion and filming in narrow spaces.
●Videos and still images recorded on a microSD card can be directly transferred to a PC or similar device by connecting a USB cable. (Supports up to 32GB※)
●Includes a storage case.
●Includes a tip tool.
※The included microSD card is 16GB.
●Specifications and standards
●Camera head diameter 5.2mm
●Cable type: Main body storage interlock type
●Cable diameter 5.0mm
●Cable length 1m
●Lens focus distance 30–80mm
●Lens field of view 40°
●Zoom function: 1x, 1.5x, 2.0x
●Imaging functions: Video, still images
●Video output method: NTSC system
●Recording memory: microSD card up to 32GB (The included microSD card is 16GB.)
●Lighting: High-brightness white LED (8-level brightness adjustment possible)

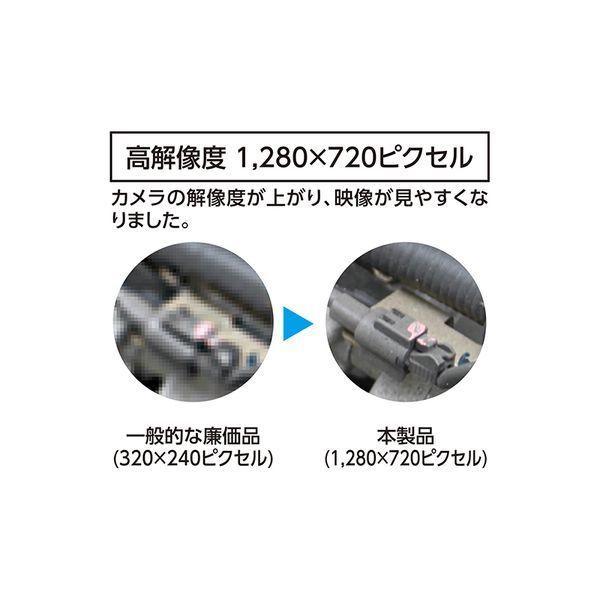

●Camera resolution: 1,280×720 pixels※1
●LCD resolution: 480×272 pixels
●LCD size: 4.3 inches
●Interface: microUSB Type-B output (for playback of recorded videos and still images)
●Dustproof and waterproof performance: Camera head and cable: Protection class IP67※2; Main body: no dustproof or waterproof features
●Operating environment temperature and humidity range: Temperature: -10 to 50°C; Humidity: 15–85% (without condensation)
●Storage temperature: -20 to 60°C
●Power supply: 4 AAA alkaline batteries (The included batteries are for monitoring use and may have a shorter lifespan.)
●Continuous usage time: approximately 4 hours

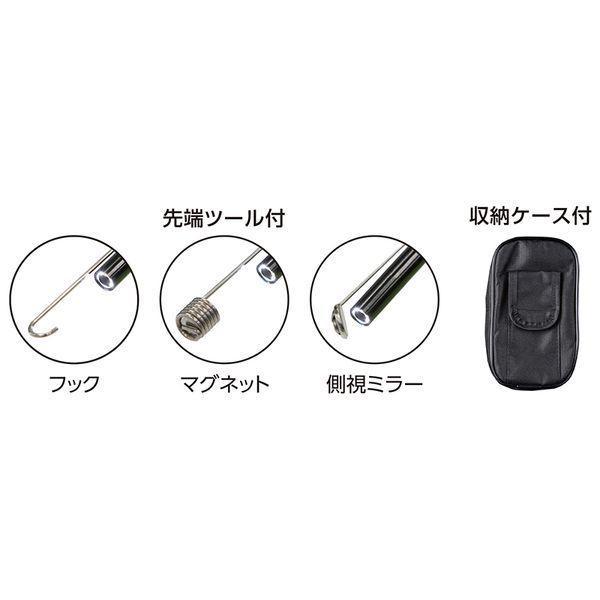

●Tip tools: Hook, magnet, side-view mirror
●Material: Main body: ABS resin; Camera cable: Copper, aluminum, glass
●Main body size: 154×88×32mm
●Weight: 375g (including batteries)
●Accessories: Storage case, USB cable, microSD card 16GB, 4 AAA alkaline batteries, tip tools
※1 The number of pixels displayed on the screen when flat.
※2 Dustproof performance 6: Dust does not enter. Waterproof performance 7: Temporarily (within 30 minutes) submerged in a certain water depth (within 1m) without water ingress.
| Product # | ED3498092 |
|---|
