Code: 4969363042309

Brand: Shimano (SHIMANO)

Model: 04230

Product color: Mixed color

Size information: 1 piece (x 1)

Product weight: 800

About this product
Gear ratio: 5.6 / Max winding length (cm/handle rotation): 116
Practical drag force / Max drag force (kg): 14.0 / 25.0
Self-weight (g): 655 / Spool dimensions (diameter / stroke) (mm): 66 / 22
Nylon line capacity (号-m): 6-300, 8-210, 10-160 / PE line capacity (号-m): 4-400, 5-300, 6-250
Handle length (mm): 75 / Number of bearings (BB / roller): 10 / 1
Department: Unisex adults
› See more brands Shimano (SHIMANO)
Hand orientation: Ambidextrous
Color: Mixed color
Material: Body: Aluminum / Rotor: Aluminum / Drive gear: Super Duralumin
Fishing technique: Spinning
Product weight: 0.8 kilograms
Gear box ratio: 5.6
Features: Precision, durability, lightweight
Model name: 21 Twin Power SW 10000HG
Line type: Nylon
About this product
Gear ratio: 5.6 / Max winding length (cm/handle rotation): 116
Practical drag force / Max drag force (kg): 14.0 / 25.0
Self-weight (g): 655 / Spool dimensions (diameter / stroke) (mm): 66 / 22
Nylon line capacity (号-m): 6-300, 8-210, 10-160 / PE line capacity (号-m): 4-400, 5-300, 6-250
Handle length (mm): 75 / Number of bearings (BB / roller): 10 / 1
Department: Unisex adults
› See more

Shipping size: Height 22, Width 18.4, Depth 12.6

Shipping weight: 1040

Brand introduction

Reel

Access store


Rod

Access store


Lure

Access store


Entry model

Access store


Line

Access store


Apparel

Access store


Shoes / Waders

Manufacturer's description
Twin Power SW "TWIN POWER SW"

The "strength shape" required for saltwater game reels is actually very diverse. It includes a solid feel and toughness that withstands harsh use, a strong waterproof performance that prevents seawater intrusion, and above all, the power to wind up. Twin Power SW is equipped without hesitation with mechanisms inheriting the strength of Stella SW, such as Infinity Drive and Heat Sink Drag.

*The images are for illustration purposes; the color and shape may vary depending on the selected model number.

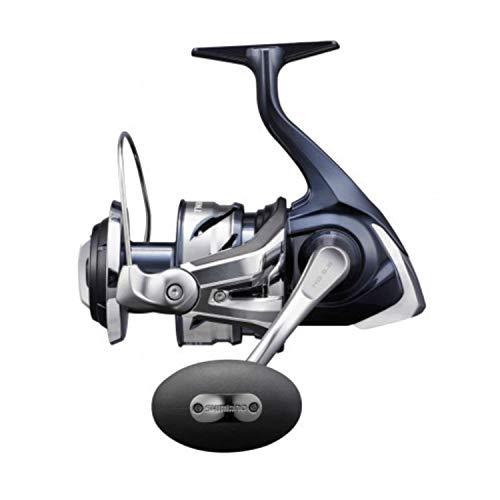

The image used is of the 10000HG model.

Features

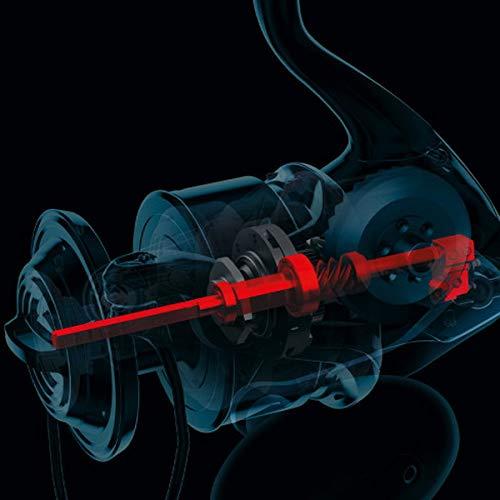

Infinity Drive

The conventional X-SHIP structure supported the pinion gear ends with bearings to achieve light winding. The current model features an evolved Infinity Drive structure. It non-contact supports the main shaft, which was previously supported by the pinion gear, with a special low-friction bushing, greatly reducing the sliding resistance of the main shaft. Additionally, the main shaft itself has a special surface treatment, achieving further low friction. Rotation torque is reduced by about 30% compared to conventional models, evolving into a powerful reel capable of actively winding even under high load. Based on our comparative testing.

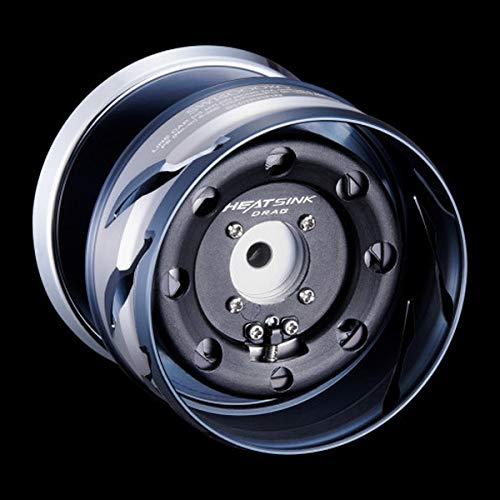

Heat Sink Drag

The conventional X-Tough Drag supported the drag mechanism at the bottom of the spool, improving drag performance and durability. The current model is equipped with an evolved Heat Sink Drag that is more resistant to heat. The heat generated in the drag section is released outside the spool via a heat sink panel, improving drag force reduction due to heat by about 50%. Additionally, an insulation sheet that blocks heat flow to the line winding part reduces the temperature rise of the winding section by about 30%. This evolution results in gentler and more stable drag performance depending on the line (models 10000PG, 10000HG, 14000PG, 14000XG). Based on our comparative testing.

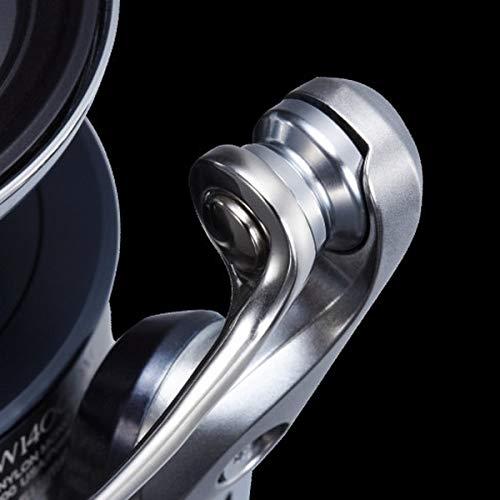

X Protect for Line Roller

The X Protect structure, which was installed in the stopper bearing part of the previous model to achieve high waterproof performance, has been further improved by also incorporating it into the line roller part in the Twin Power SW. It physically blocks seawater intrusion with seal components, making it resistant to high water pressure. It protects the bearing inside the line roller from harsh environments, increasing bearing durability by more than 10 times compared to previous models. Based on our comparative testing.


X Tough Drag

All washers are made of metal and carbon, supporting the spool from both top and bottom directions. Improved heat resistance and durability have enhanced "smooth and stable drag performance". (Except for 4000XG)









Rigid Support Drag

Supports the spool with two bearings inside the main shaft and spool, suppressing spool wobble and providing stable, smooth drag performance.

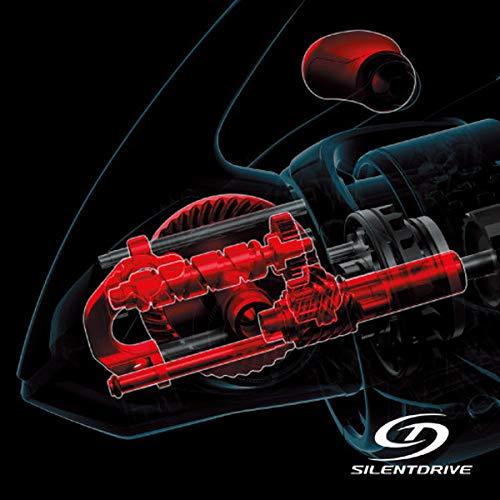

Silent Drive

The basic design of the entire body and the drive-related parts have been thoroughly reviewed, eliminating fine gaps, looseness, and wobble between parts. Improvements include the drive gear, worm shaft, worm shaft pin, worm gear, and more. Achieves smooth rotation and quiet operation, providing a comfortable winding feel.

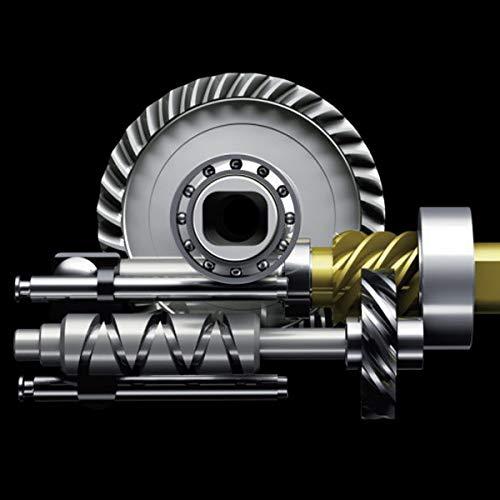

X Ship

Features include a larger drive gear, placement of both pinion and drive gears, and two-point support by bearings. These robust gear meshing features support a lightweight, strong reeling under load.


HAGANE Gear

Made by pressing a metal block under high pressure without machining, finished with micron-level precision. The proprietary cold forging technology produces a hard, tough gear that enables smooth winding.









HAGANE Body

Uses lightweight yet rigid metals such as aluminum and magnesium to effectively suppress flex, distortion, and twisting of the reel. Protects delicate gear meshing and allows smooth reeling.


X Rigid Rotor

Using aluminum alloy and detailed verification of thickness distribution through 3D analysis, it achieves even greater rigidity, durability, and excellent rotational balance. This high rigidity also contributes to improved functions of the drag and other parts.


X Protect for Stopper Bearing

Adopts a contact triple lip structure in the stopper bearing part. Filling with special grease reduces friction resistance, maintaining silky rotation performance while providing high waterproof performance. The combined effect with X Shield achieves a waterproof standard equivalent to IPX8 for the body.


X Shield

Seals are applied at the body lid contact surface, spool drag knob contact part, and other areas to block water ingress. Ensures high durability in saltwater game conditions.









CI4+ Handle Knob

For models from 4000 to 8000, uses a lightweight carbon material CI4+ handle knob with excellent rigidity and durability. Achieves further weight reduction and applies a special coating to make it slip-resistant, enhancing winding smoothness. For models 10000 and 14000, standard equipment includes a lightweight hollow oval round handle knob.
