Code: 4969363043511

Brand: Shimano (SHIMANO)

Model: 04351

Product color: Mixed color

Size information: 1 piece (x 1)

Product weight: 800

About this product
Gear ratio: 4.9 / Maximum winding length (cm/handle rotation): 106
Practical drag force / Maximum drag force (kg): 14.0 / 25.0
Self-weight (g): 660 / Spool dimensions (diameter / stroke) (mm): 68.6 / 22
Nylon line capacity (号-m): 10-195, 12-155, 14-140 / PE line capacity (号-m): 6-300, 8-200, 10-165
Handle length (mm): 75 / Number of bearings (BB / roller): 10 / 1
Department: Unisex adults
› See more brands Shimano (SHIMANO)
Hand orientation: Ambidextrous
Color: Mixed color
Material: Body: Aluminum / Rotor: Aluminum / Drive gear: Super duralumin
Fishing technique: Spinning
Product weight: 0.8 kilograms
Gear box ratio: 4.9
Features: Precision, durability, lightweight
Model name: 21 Twin Power SW 14000PG
Line type: Braided
About this product
Gear ratio: 4.9 / Maximum winding length (cm/handle rotation): 106
Practical drag force / Maximum drag force (kg): 14.0 / 25.0
Self-weight (g): 660 / Spool dimensions (diameter / stroke) (mm): 68.6 / 22
Nylon line capacity (号-m): 10-195, 12-155, 14-140 / PE line capacity (号-m): 6-300, 8-200, 10-165
Handle length (mm): 75 / Number of bearings (BB / roller): 10 / 1
Department: Unisex adults
› See more

Shipping size: Height 21.8, Width 18.5, Depth 12.4

Shipping weight: 1060

Brand introduction

Reel

Access store


Rod

Access store


Lure

Access store


Entry model

Access store


Line

Access store


Apparel

Access store


Shoes / Waders

Manufacturer's description
Twin Power SW "TWIN POWER SW"

The "strength of form" required for saltwater game reels is actually very diverse. It includes a solid feel and toughness that withstands hard use, a robust waterproof performance that prevents seawater intrusion, and above all, the power to wind up. The Twin Power SW is equipped without hesitation with mechanisms inherited from Stella SW, such as Infinity Drive and Heat Sink Drag.

*Images are for illustration purposes; the color and shape may vary depending on the selected model number.

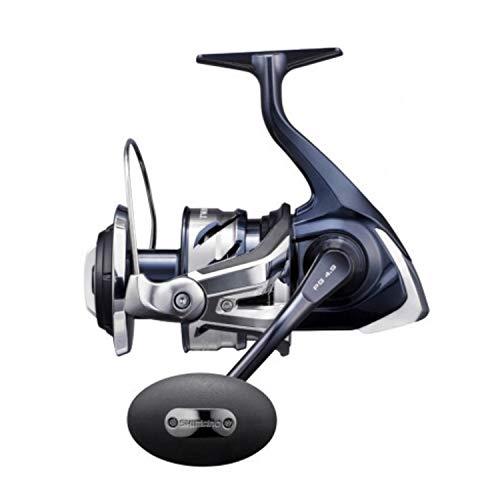

The image used is of the 10000HG model.

Features

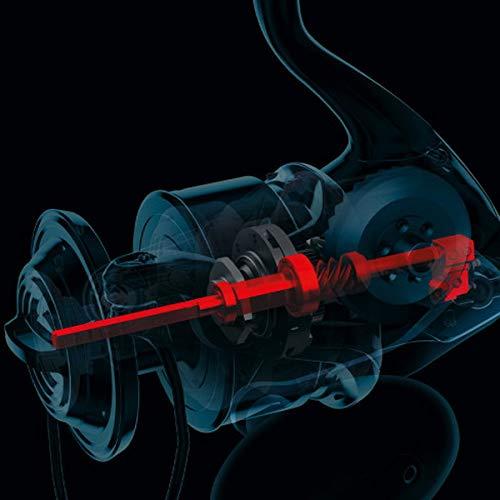

Infinity Drive

The conventional X-SHIP structure supported the pinion gear ends with bearings to achieve light winding. The current model features an evolved Infinity Drive structure. It non-contact supports the main shaft, which was previously supported by the pinion gear, with a special low-friction bushing, greatly reducing the sliding resistance of the main shaft. Additionally, the main shaft itself has been treated with a special surface process, achieving further low friction. Rotation torque is reduced by about 30% compared to previous models, evolving into a powerful reel capable of actively winding even under high load. Based on our comparative testing.

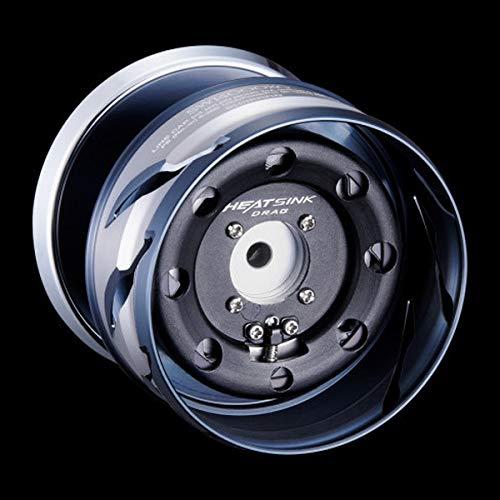

Heat Sink Drag

The conventional X-Tough Drag supported the spool by placing the drag mechanism at the bottom of the spool, improving drag performance and durability. The current model is equipped with an evolved Heat Sink Drag that is more heat-resistant. The heat sink panel dissipates heat generated in the drag section outside the spool, improving heat fade and reducing drag force decline by about 50%. An insulation sheet that blocks heat flow to the line winding part of the spool reduces the temperature rise of the winding section by about 30%. This evolution results in gentler and more stable drag performance depending on the line (models: 10000PG, 10000HG, 14000PG, 14000XG). Based on our comparative testing.

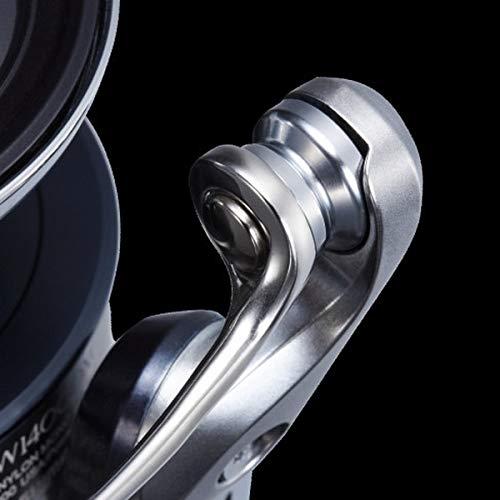

X Protect for Line Roller

The X Protect structure, which was installed in the stopper bearing part of the previous model to achieve high waterproof performance, has now been added to the line roller part of the Twin Power SW, further enhancing waterproofing. Like the stopper bearing part, the line roller is sealed with a seal component to physically block seawater intrusion, evolving into a structure that can withstand high water pressure. It protects the bearing inside the line roller from harsh environments, increasing bearing durability by more than 10 times compared to previous models. Based on our comparative testing.


X Tough Drag

All washers are made of metal and carbon, supporting the spool from both top and bottom directions. Improved heat resistance and durability have refined the "smooth and stable drag performance". (Except for 4000XG)









Rigid Support Drag

Supports the spool with two bearings inside the main shaft and spool, suppressing spool wobble and providing stable, smooth drag performance.

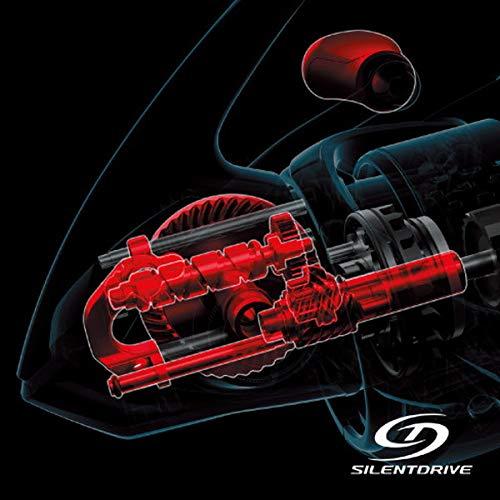

Silent Drive

The entire body design and driving components have been thoroughly reviewed, eliminating fine gaps, looseness, and wobble between parts. Improvements include the drive gear, worm shaft, worm shaft pin, and worm gear, among others. Achieves smooth rotation and quiet operation, providing a seamless winding feel.

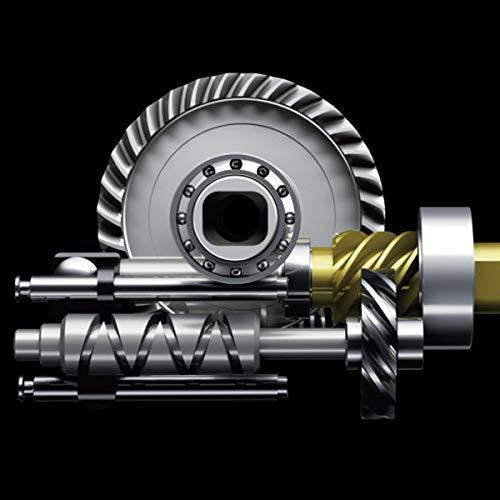

X Ship

Features a larger drive gear, arrangement of pinion and drive gears, and dual support of the pinion gear with bearings. These robust gear engagements maintain a light, strong reeling under load.


HAGANE Gear

Made by pressing a solid metal block under high pressure and finishing with micron-level precision without machining. The proprietary cold forging technology produces a hard, tough gear that enables smooth winding.









HAGANE Body

Uses lightweight yet rigid metals such as aluminum and magnesium to firmly suppress reel flex, distortion, and twisting. Protects delicate gear engagement and allows smooth reeling.


X Rigid Rotor

Using aluminum alloy and detailed verification of thickness distribution through 3D analysis, it achieves even greater rigidity, durability, and excellent rotational balance. This high rigidity also contributes to improved functions of the drag and other parts.


X Protect for Stopper Bearing

Adopts a contact triple lip structure in the stopper bearing part. Filling with special grease reduces friction resistance and maintains silky rotation performance, while the combined effect with X Shield achieves waterproof performance equivalent to IPX8 standard.


X Shield

Applies strong sealing at the body lid mating surface, spool drag knob contact parts, and other areas to block water ingress. Ensures high durability during SW games under harsh conditions.









CI4+ Handle Knob

For models from 4000 to 8000, adopts a lightweight carbon handle knob with excellent rigidity and durability. It further reduces weight, applies a special coating for slip resistance, and enhances winding smoothness. For models 10000 and 14000, standard equipment includes a lightweight hollow oval round handle knob.
