Code:4969363038760

Brand:Shimano (SHIMANO)

Product color: Gray

Size information: 3000

Product weight: 1090

About this product
Gear ratio: 4.6 / Max drag force (kg): 25.0 / Weight (g): 1090
Fishing line capacity (号-m): PE Tanatoru 4-470, 5-350, 6-300, 8-200 / Fluoro 5-370, 6-310, 7-290, 8-220
Max winding length (cm/handle rotation): 70
Spool dimensions (diameter/width) (mm): 48/47
Bearing count (BB/roller): 15/1 / Handle length (mm): 75
› See more Brand Shimano (SHIMANO)
Color: Gray
Material: Frame: Aluminum (legs: Stainless steel) / Drag: Carbon cross washer
Product weight: 1.09 kilograms
Manufacturer: Shimano (SHIMANO) About this product
Gear ratio: 4.6 / Max drag force (kg): 25.0 / Weight (g): 1090
Fishing line capacity (号-m): PE Tanatoru 4-470, 5-350, 6-300, 8-200 / Fluoro 5-370, 6-310, 7-290, 8-220
Max winding length (cm/handle rotation): 70
Spool dimensions (diameter/width) (mm): 48/47
Bearing count (BB/roller): 15/1 / Handle length (mm): 75
› See more

Shipping size: Height 26.6, Width 22.6, Depth 14.4

Shipping weight: 2140

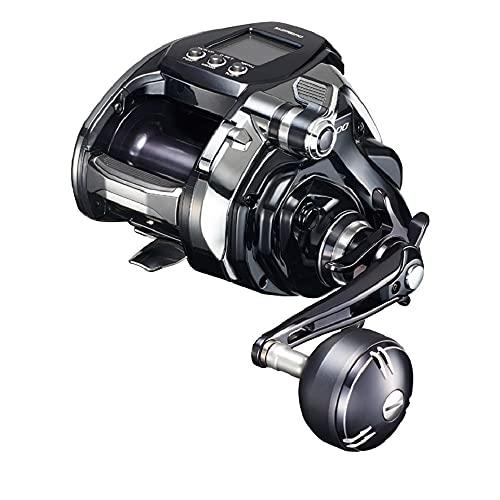

Shimano (SHIMANO) Electric reel 20 Beastmaster MD3000 NEW GIGA-MAX MOTOR with motor torque 40 1 up. Monster drive with overwhelming strength and speed. The NEW GIGA-MAX MOTOR-equipped Beastmaster MD3000 combines the strength of 3000XP and the speed of 3000XS, achieving a maximum drag force of 25kg. Improved rigidity with HAGANE body and upgraded to a reinforced gear system, evolving into an extraordinary monster electric reel. Additionally, it features a color LCD "Tankenmaru Screen" on the counter display. It allows instant response to changing conditions by displaying seabed shape, fish reactions, and lure trajectory directly on the reel, without needing to look at the fish finder on the boat or smartphone. The reel's compact S-body with easy handling, large mechanical brake knob for fall fishing, and other advanced features enable battles against large amberjack, yellowtail, yellowtail kingfish, and large squid under high load conditions. 1:16 comparison with Beastmaster 3000XP. Tankenmaru Screen: Compatible with all Tankenmaru-equipped boats. The ACCU-FISH® function and fish school depth display are only available on boats with compatible main units. Power: The product does not include batteries. To fully utilize the reel's performance, a high-capacity battery such as our BT Master 11AH is recommended. Manufacturer's explanation
FEATURE (Features)

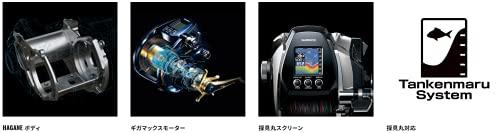

HAGANE Body

Uses lightweight yet rigid metals such as aluminum and magnesium to firmly suppress reel flex, distortion, and twisting. Protects delicate gear engagement and enables smooth winding.


GIGA-MAX MOTOR

A high-performance motor exclusive to the Beast. It offers high power at high temperatures and excellent durability.

Even in high-temperature conditions where motor performance tends to decline, it delivers powerful output with a brushless motor. A brushless motor is one without brushes, which are made of powdery materials like carbon or copper that wear out. Without brushes, the motor's lifespan is extended. Used in racing cars and Shinkansen, it offers high quality in "power," "speed," and "durability." For reels equipped with the GIGA-MAX MOTOR, it is recommended to use a large-capacity battery such as the BT Master 11AH to fully realize performance.


Tankenmaru Screen

Features a color fish finder display on electric reels.

The Tankenmaru Screen displays seabed depth, seabed shape, school size, fish size, fish reactions such as ACCU-FISH, and lure trajectory on the electric reel. It can be viewed clearly in color directly on the reel counter, eliminating the need to look at the fish finder on the boat or smartphone. It provides detailed seabed changes and fish reactions, motivating anglers and directly contributing to successful fishing. Experience the fusion of electric reel and Tankenmaru.

The Tankenmaru Screen is compatible with all boats equipped with Tankenmaru systems.

The ACCU-FISH function is only available on boats with compatible main units.


Tankenmaru Scale

Displays seabed depth, seabed shape, and fish school information on the reel.

The Tankenmaru Scale, a simplified fish finder function, shows three types of seabed changes: "Flat," "Drop," and "Rise," with easy-to-understand pictograms, making seabed shape visualization easier. The seabed depth display next to the pictogram updates in real time, aiding in predicting bottom contact, tracing seabed features, and reducing worries about snags, thus increasing catch rate. When fish schools are detected, an alarm sounds, and the display switches to fish school depth, allowing quick delivery of the lure to the fish zone.

Seabed depth display: Available on all boats with Tankenmaru systems.

Fish school depth display: Only on boats with compatible main units supporting ACCU-FISH.









Tankenmaru compatible

This is an electric reel compatible with the Tankenmaru system, which allows viewing fish finders from the boat's edge. It can connect to a Tankenmaru sub-unit, enhancing the enjoyment of boat fishing.


S-Compact Body

Not only is the reel body made more compact, but the power cable connector is also positioned on the handle side, opposite to conventional models. The body design allows a firm grip on the reel, improving handling performance and comfort.


Firemach System

Enables fast descent, opening up aggressive fishing possibilities.

Uses a large-diameter spool that smoothly reverses with multiple S A-RB ball bearings on the main shaft. The high-speed descent performance, starting with low load, is comparable to the super-free spool used in small electric reels. Suitable for fishing with light rigs or quickly reaching target depths.


S-Adjust Drag Control

Controls to suppress abnormal heat generation in the drag to maintain stable drag performance. When the electric reel's motor is on and the drag slips, the gear can slip and cause abnormal heat. To prevent this, the motor speed automatically decreases when the drag slips.









e-Exciting Drag Sound

The exciting drag sound has been converted to an electronic tone, resonating with the angler and increasing excitement.

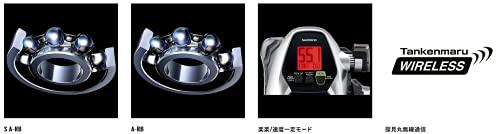

S A-RB

By applying a special anti-corrosion treatment directly to the bearings, rust resistance has been significantly improved. S A-RB bearings are further sealed with anti-corrosion materials on the sides, greatly reducing salt crystallization and salt gumming inside the bearings.


Raku Raku Mode / Constant Speed Mode

Raku Raku Mode maintains a constant tension during winding by adjusting according to the load on the reel. It detects rapid load changes to prevent line breakage and is effective for fish that bite upward. Constant speed mode maintains a steady winding speed regardless of load, ideal for slow winding or increasing winding power.


Fine Dot LCD

A dot LCD with excellent visibility and operability.









Suitable for saltwater use

NEW GIGA-MAX MOTOR

The GIGA-MAX MOTOR, exclusive to Shimano electric reels like the Beastmaster, features no brushes made of carbon or copper, which are used to conduct current. The absence of brushes eliminates wear points, extending motor life. It also provides powerful performance even at high temperatures where motor performance typically declines. The NEW GIGA-MAX MOTOR in the Beastmaster MD3000 increases motor torque by 40%, delivering overwhelming drive power combining the speed of 3000XS and the power of 3000XP. It offers strength and speed at the angler's command, along with durability, pioneering a new world of electric big game fishing.

For reels equipped with the GIGA-MAX MOTOR, it is recommended to use a large-capacity battery such as the electric丸10Ah to fully realize performance.


Large Mechanical Brake Knob

To expand possibilities for fall fishing with electric reels, the brake knob size has been increased from conventional models. It can be quickly adjusted with the thumb, and brake force has been significantly improved. Especially effective for fishing with squid, yari squid, red snapper, and for baiting during fall fishing.

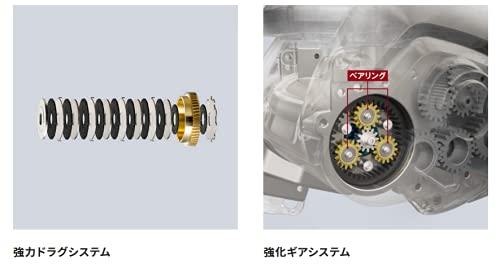

Drag System

The drag system equipped on the Beastmaster MD3000 achieves a drag force of 25kg, a significant upgrade from the 20kg of the 16 Beastmaster 3000XP/XS, and comparable to the formidable specs of the Beastmaster 9000. The Monster Drive aims to reach this level, as reflected in these figures.









Reinforced Gear System

The gear system has been greatly enhanced, including the support of reduction gears by bearings, achieving outstanding durability. The synergy with the NEW GIGA-MAX MOTOR realizes unprecedented winding strength, speed, and stability. The reinforced gear system, along with the highly durable brushless motor, ensures long-lasting performance in tough conditions.
