Code: 4969887595657

Brand: Sanwa Supply (Sanwa Supply)

Model: USB-DKM8S

Product color: Silver

About this product

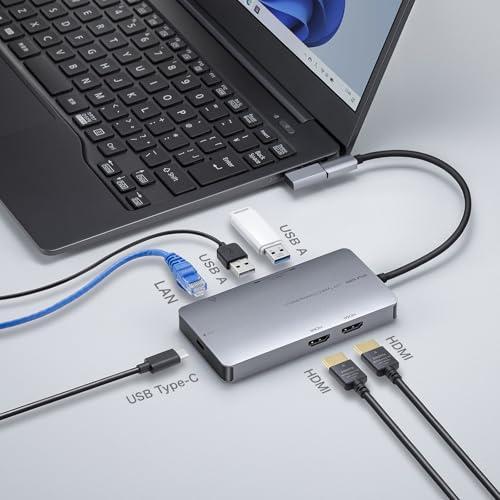

This is a docking station equipped with Smart PD that supplies stable power to a computer.
This is a Type-C mobile docking station equipped with HDMI 2.
It has 2 HDMI ports, allowing you to expand two displays simultaneously.
With a dedicated USB PD port, you can charge your computer. PD 100W compatible.

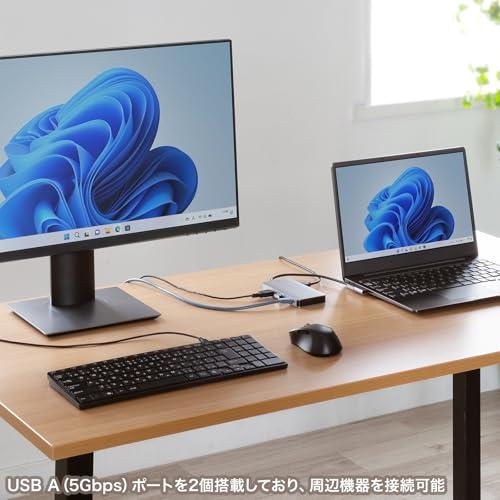

It is equipped with USB 5Gbps 3.2 Gen1 and 2 USB A ports for connecting peripherals.
› See more Brand: Sanwa Supply (Sanwa Supply)
Color: Silver
Supported devices: Desktop computer
Data transfer rate: 5 Gigabits per second
Manufacturer: Sanwa Supply About this product
This is a docking station equipped with Smart PD that supplies stable power to a computer.
This is a Type-C mobile docking station equipped with HDMI 2.
It has 2 HDMI ports, allowing you to expand two displays simultaneously.
With a dedicated USB PD port, you can charge your computer. PD 100W compatible.
It is equipped with USB 5Gbps 3.2 Gen1 and 2 USB A ports for connecting peripherals.
› See more

Shipping size: Height 21.1cm, Width 8.9cm, Depth 2.4cm

Shipping weight: 140g

This is a docking station equipped with Smart PD that supplies stable power to a computer.
This is a Type-C mobile docking station equipped with HDMI 2.
It has 2 HDMI ports, allowing you to expand two displays simultaneously.
With a dedicated USB PD port, you can charge your computer. PD 100W compatible.
It is equipped with USB 5Gbps 3.2 Gen1 and 2 USB A ports for connecting peripherals.

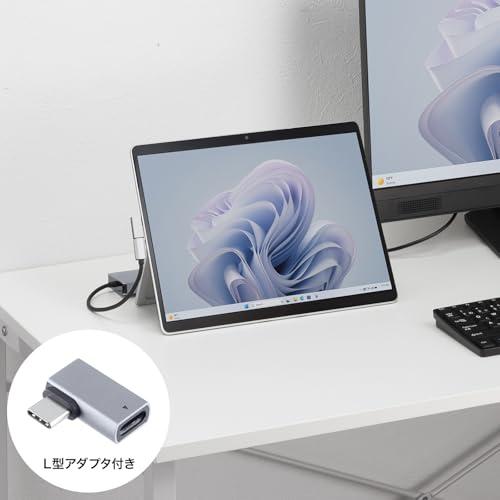

Comes with an L-shaped adapter.

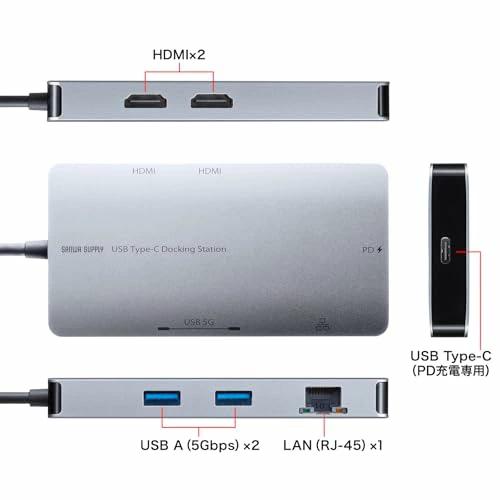

PC connection terminal
Connector shape: USB Type-C
Supported standards: USB 5Gbps USB3.2 Gen1 / 3.1 Gen1 / 3.0 compliant
USB 5Gbps is a name change from USB3.2 Gen1 USB3.1 Gen1 / USB3.0 by USB-IF (USB Implementers Forum), and it is the same standard.
Maximum USB PD output: approximately 100W
Cable length: 20cm
Cable type: Integrated type
USB ports
Number of ports: 2 ports
Maximum data transfer speed (theoretical): 5Gbps
USB A female / USB 5Gbps: 2 ports
Supply current: 1500mA total for all ports (bus-powered)
Power supply
Power supply method: Bus-powered / Self-powered when connected to power
USB PD input port: Yes
Maximum USB PD input: up to 100W
Depending on your computer or PD power adapter, a warning may appear recommending the use of the power adapter attached to your computer, but there is no problem with use.
Video output port

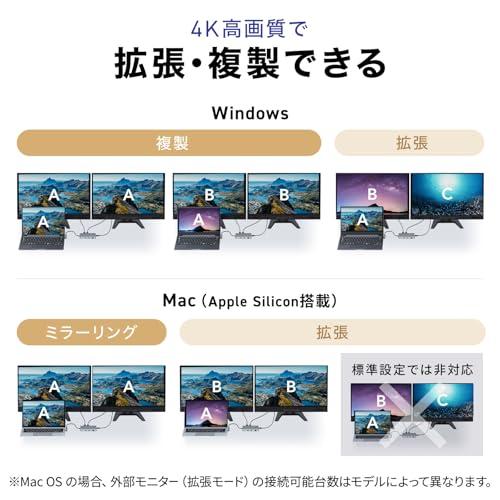

Supported output displays: 2 units
Connector: HDMI Type A 19-pin female 2
Maximum supported resolution: up to 3840 x 2160 4K/60Hz
The supported resolution listed requires your computer to support DisplayPort Alt Mode DP1.4 or higher.
Output at 4K resolution requires the display to support 4K resolution, and the content being output must also support 4K resolution.
Maximum supported resolution / refresh rate:
3840 x 2160
HDMI / maximum 3840 x 2160 4K 30Hz
HDMI / maximum 2048 x 1152
HDCP: 2.2, 2.1, 1.4
HDMI: 2 ports
LAN port
Port shape: RJ-45 port, supports Auto MDI/MDI-X, Auto-Negotiation
Supports Wake On LAN, but compatibility varies depending on the computer model, so operation is not guaranteed.
To use wired network with connected devices, Wi-Fi must be turned off.
Supported standards: IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3ab 1000BASE-T
Transmission speed (theoretical): 1000Mbps, 100Mbps, 10Mbps
Regarding communication speed, only when connected via USB 5Gbps USB3.2 Gen1 does it support 1000BASE-T.
Access method: CSMA/CD
Common specifications
Size: approximately W115 D59 H14mm
Weight: approximately 117g
Set contents: L-shaped connector, instruction manual
