Ships within 3 business days ≪Brand new unopened item≫【Brand new unopened item】

＜With some defects Outlet＞
* The box has scratches and dirt, but the product is unopened and new.

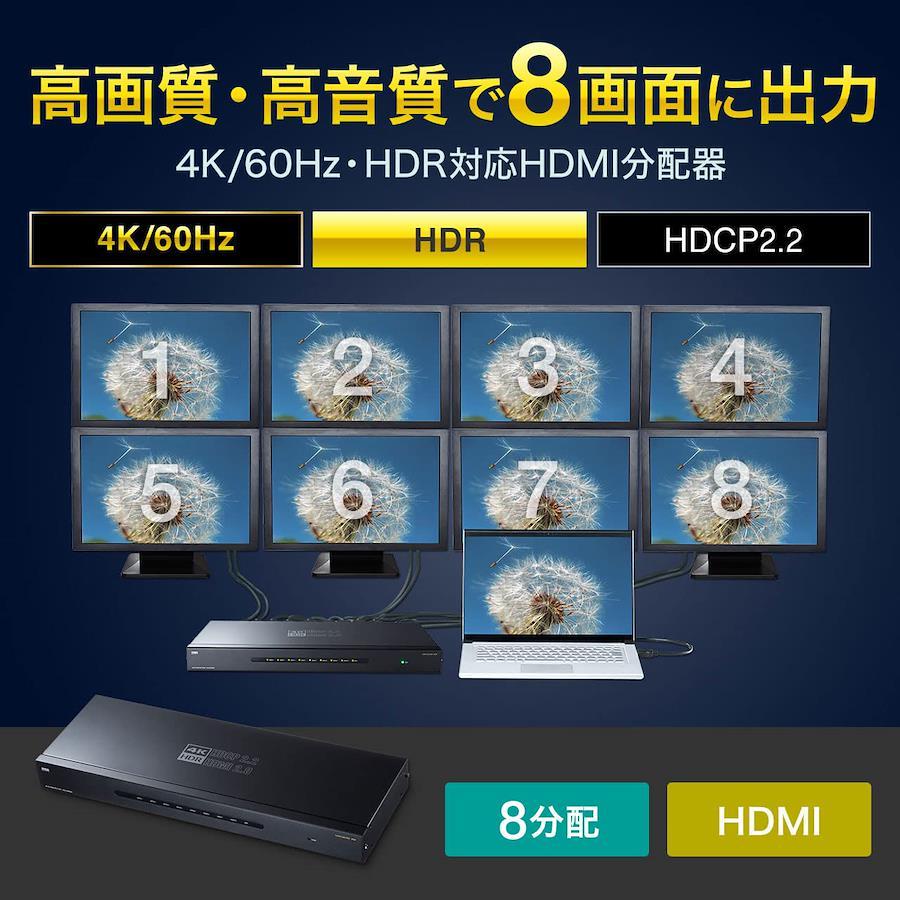

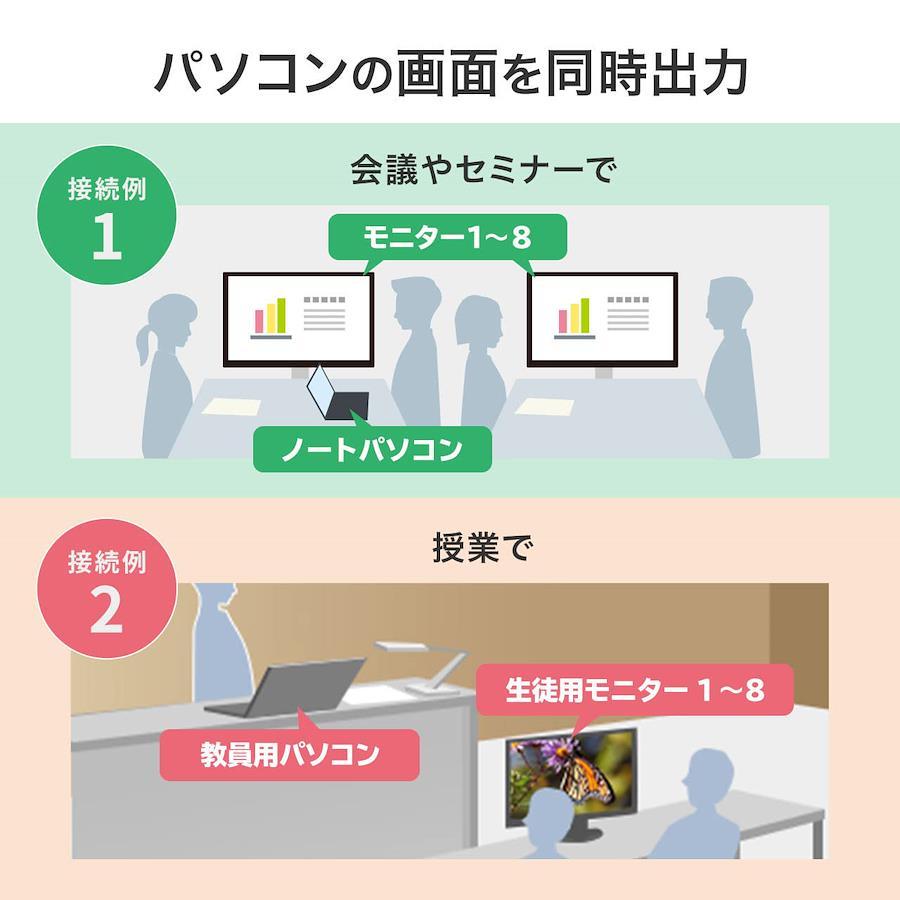

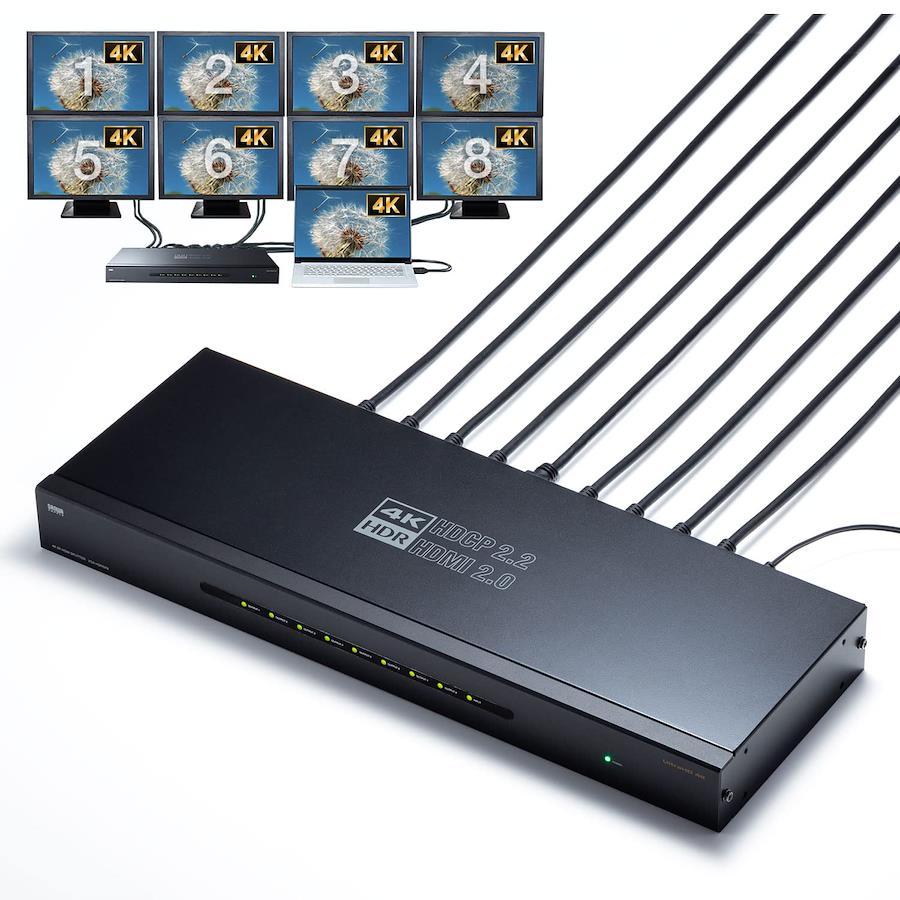

● Can distribute the signal of one HDMI device simultaneously to 8 HDMI input devices (such as displays, projectors) with high image and sound quality.
● Supports 4K2K (4096×2160) at 60Hz resolution, capable of outputting beautiful, high-definition HDMI signals.
※ Since the distributed HDMI output is the same signal, the displays being distributed to need to support the same resolution or similar signals, so please be aware of this in advance.
● Supports high-brightness HDR (High Dynamic Range) video and also supports HDCP2.2.
● Uses a method to transmit the EDID information of the display connected to port 1 to the video input device (such as a computer).
● Supports Dolby True HD and DTS HD Master Audio.
● All HDMI terminals are gold-plated to prevent corrosion and signal degradation.
● Includes one HDMI cable (1.8m).

＜Specifications＞
■ Distribution: 8-way
■ Maximum display resolution: 4K2K (4096×2160)
■ Main supported resolutions:
4096×2160 60Hz (4:4:4)
4096×2160 60Hz (4:2:0)
3840×2160 60Hz (4:4:4)
3840×2160 60Hz (4:2:0)
1920×1200 60Hz
1920×1080 60Hz
■ Data rate (max): 6.0 Gbit/s
■ Pixel clock: 600MHz
■ Input DDC signal: 5V
■ HDCP: Supports HDCP2.2 and HDCP1.4
※ Displays must also support HDCP.
■ Device control (CEC): Supported

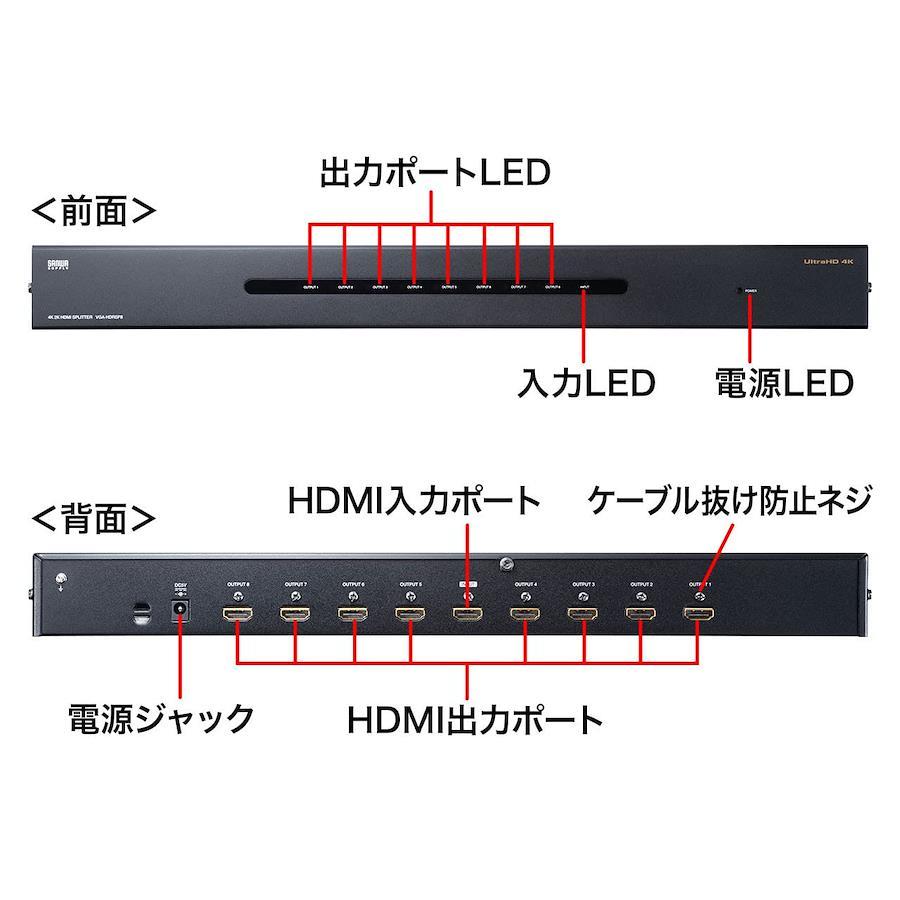

■ Interface:
Input / HDMI Type A (19PIN) female ×1
Output / HDMI Type A (19PIN) female ×8
■ Power consumption: 11.95W
■ Material: Steel
■ Environmental conditions:
Operating / 0~50°C, humidity below 80% (no condensation)
Storage / -20~60°C, humidity below 80% (no condensation)
■ Recommended cable length between devices: approximately 5~10m

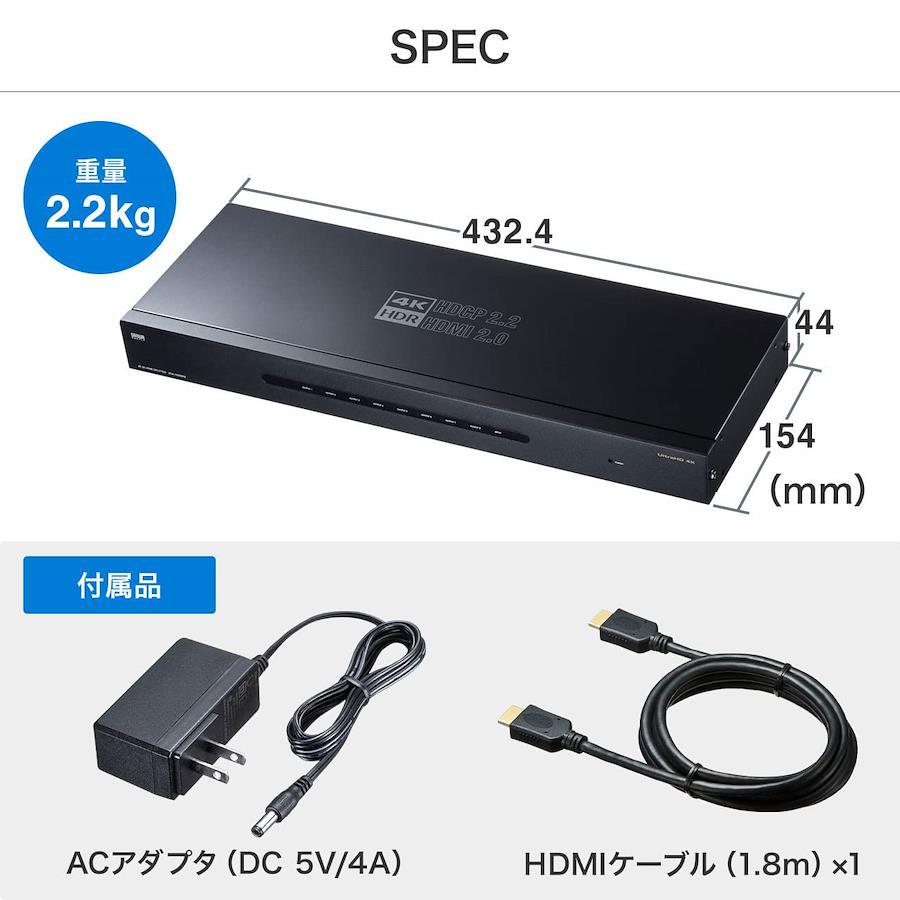

■ Size: W432.4×D154×H44mm
■ Weight: 2.2kg
■ Accessories: AC adapter (DC 5V/4A), HDMI cable (1.8m) ×1, AC cord (for adapter), rubber feet, server rack mounting bracket, instruction manual, warranty card

＜Notes＞
※ When cascading, contact points increase, which can normally cause noise interference. Please keep the total distance from the HDMI output device to the latest display as short as possible.
※ When connecting to a DVI interface source or display device, a DVI-HDMI conversion adapter is required separately. When using a DVI-HDMI conversion adapter, audio functions are not supported.

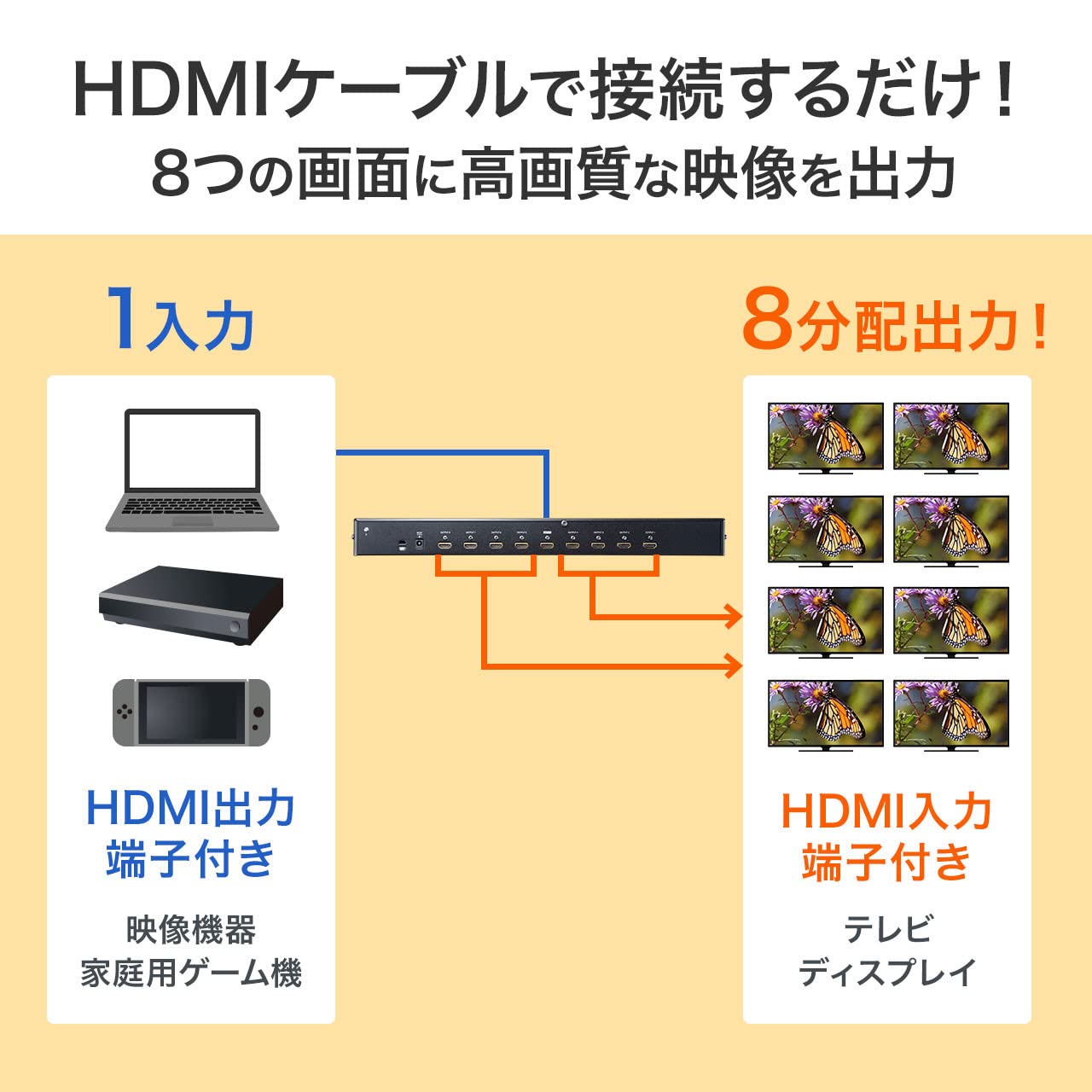

■ Compatible devices: Video devices, household game consoles, and computers with standard HDMI output terminals
■ Compatible output devices: TVs, computer displays, and others with standard HDMI input terminals
8台のディスプレイに映像を出力できるマルチディスプレイ用のHDMI分配器。4K/60Hzの高解像度でHDRやHDCPにも対応しています。HDMIケーブル1本が付属しています。
1台のHDMI機器の信号を高画質・高音質のまま8台のHDMI入力端子付き機器（ディスプレイ・プロジェクターなど）に同時に分配出力できます。
4K2K（4096×2160）60Hz解像度に対応しており美しく高精細なHDMI信号を出力できます。※分配されるHDMI出力は同じ信号となりますので、分配されるディスプレイが同じ解像度などの信号をサポートしている必要がありますので、あらかじめご注意ください。
高輝度HDR（ハイダイナミックレンジ）映像に対応しており、HDCP2.2にも対応しています。ポート1に接続されたディスプレイのEDID情報を映像入力機器（パソコンなど）に伝える方式です。Dolby True HDおよびDTS HD Master Audioにも対応しています。
HDMI端子全てに金メッキ加工を採用しています。サビに強く信号劣化を防ぎます。HDMIケーブル（1.8m）1本同梱しています。
