Code: 4969887595251

Brand: Sanwa Direct

Model: 400-VGA018

Product weight: 100g

About this product

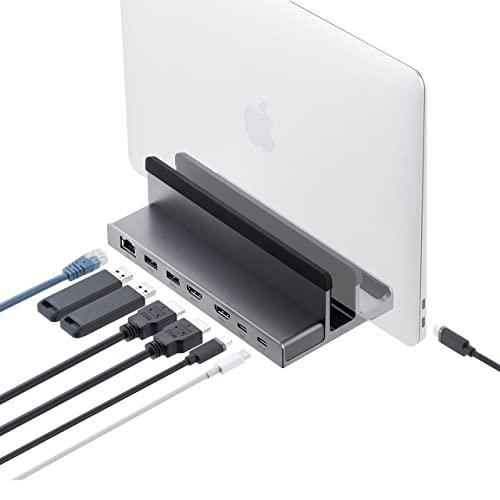

This is a docking station that allows you to output to up to 2 screens, use various USB devices, and extend wired LAN connection with just one USB-C cable. It is integrated with a laptop stand, so it can be installed in a space-saving manner even on small desks.
It supports display expansion via Type C connection "DisplayPort Alternate Mode," enabling easy multi-display mirror/extend modes without installation. When outputting to one display using HDMI, it can output at a maximum resolution of 4K (3840 x 2160)/60Hz. Up to two displays can be connected, and in dual-screen output mode, it can output at a maximum resolution of 4K (3840 x 2160)/30Hz.
It supports "USB Power Delivery USB PD" via Type-C connection, allowing power supply up to 20V/5A (100W), so you can charge your connected laptop while using it. Additionally, it has a LAN port compatible with gigabit Ethernet, enabling high-speed and stable internet connection with just one cable.
The stand part can be used in two ways: vertical placement, convenient for use in clamshell mode, and flat placement, useful when working with a laptop. The part that contacts the laptop has a silicone rubber sheet, so it can be used without damaging the laptop.
Warranty period: 6 months from the date of purchase
› See more brands Sanwa Direct
Hardware interfaces: Ethernet, USB, HDMI
Features: Pass-through charging
Supported devices: iPad
Material: Plastic
This is a docking station that allows you to output to up to 2 screens, use various USB devices, and extend wired LAN connection with just one USB-C cable. It is integrated with a laptop stand, so it can be installed in a space-saving manner even on small desks.
It supports display expansion via Type C connection "DisplayPort Alternate Mode," enabling easy multi-display mirror/extend modes without installation. When outputting to one display using HDMI, it can output at a maximum resolution of 4K (3840 x 2160)/60Hz. Up to two displays can be connected, and in dual-screen output mode, it can output at a maximum resolution of 4K (3840 x 2160)/30Hz.
It supports "USB Power Delivery USB PD" via Type-C connection, allowing power supply up to 20V/5A (100W), so you can charge your connected laptop while using it. Additionally, it has a LAN port compatible with gigabit Ethernet, enabling high-speed and stable internet connection with just one cable.
The stand part can be used in two ways: vertical placement, convenient for use in clamshell mode, and flat placement, useful when working with a laptop. The part that contacts the laptop has a silicone rubber sheet, so it can be used without damaging the laptop.
Warranty period: 6 months from the date of purchase
› See more

Shipping size: Height 22.7cm, Width 10.8cm, Depth 6.9cm

Shipping weight: 870g

Brand introduction


Sanwa Supply, a computer peripheral manufacturer founded in Okayama Prefecture in 1923. The brand operated online by Sanwa Supply is "Sanwa Direct."

Because we are a supplier with many years of experience, we improve and refine based on accumulated data and customer feedback, delivering more convenient and high-quality "I wish I had" products.


Click here for lineup list

Access store


Click the image for product details⇧

Click the image for product details⇧

Click the image for product details⇧

Click here for lineup list

Access store


Click here for lineup list

Product description

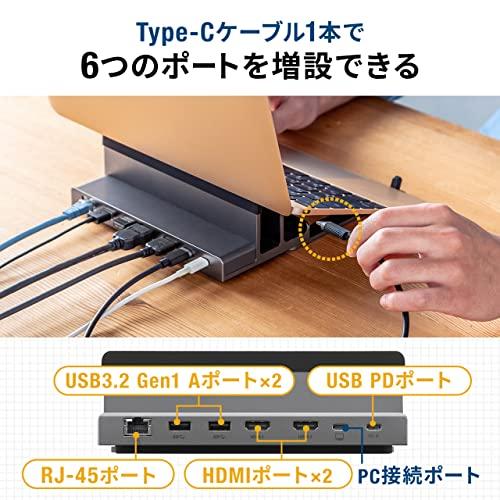

A USB Type-C docking station that can expand up to 6 ports and has an integrated stand.

Since it is integrated with a laptop stand, it can be installed in a space-saving manner on your desk.

You can organize the clutter of connected devices and cables into one neat unit with the docking station.

At home or in the office, you can connect to a large display and USB devices with just one Type-C cable for comfortable operation, and when going out or in meetings, you can easily carry it by unplugging the single Type-C cable.

Supports connecting up to 2 displays, with each port supporting a maximum resolution of 4K (3840 x 2160)/30Hz when two displays are connected.

Supports output to one display via HDMI at a maximum resolution of 4K (3840 x 2160)/60Hz.

There are "clone mode" to mirror the same screen as the laptop and "extend mode" to expand the laptop screen onto a monitor. This product provides HDMI for monitor extension, and the above extension/mirroring functions are defined by the OS of the computer.

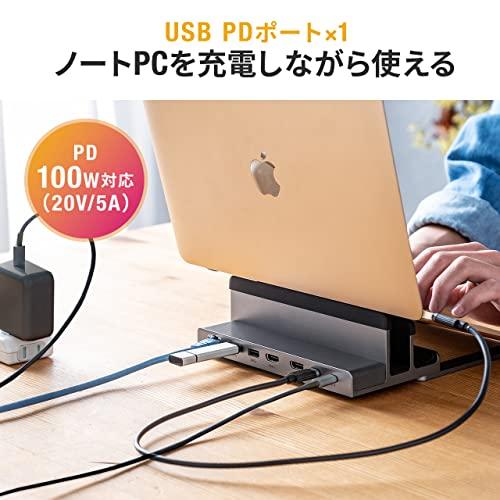

Supports "USB Power Delivery USB PD" via USB Type-C, with a maximum input of 20V/5A (100W). Charging the connected laptop through this product is also possible.

Supports Gigabit Ethernet (1000BASE-T), compatible with gigabit network environments, and allows wired LAN connection with just one USB Type-C cable.

Supports USB 3.2 Gen1 standard with a data transfer speed of 5Gbps, enabling smooth transfer of large files.

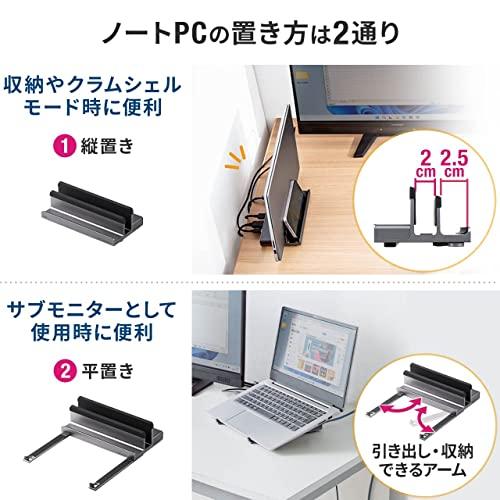

Two installation methods are available: vertical and flat placement, depending on the usage scene.

Can be placed vertically with the laptop closed. Comes with a simple stand, allowing you to place other devices together.

By pulling out the stand arm forward, you can place the laptop in a "flat" position.

When placed flat, it tilts at a 20-degree angle, making keyboard input easier. It can also be used as a tablet.

The part that contacts the laptop has a silicone rubber sheet to prevent scratches. It also has non-slip features on the bottom surface.

Made of high-quality aluminum with an anodized finish for a premium feel.

Main body size: approximately W182 x D98 x H62mm

Weight: approximately 650g

Cable length: approximately 50cm

Specifications

Common specifications

Environmental conditions: Operating temperature range: 0-40°C, Operating humidity range: 5%-90%

Set contents: USB Type-C cable 1, Japanese instruction manual 1

Made in China

USB Hub

Interface standard: USB specification Ver3.2 Gen1 (compliant with USB3.1/3.0) (backward compatible with USB2.0/1.1)

Communication speed: 5Gbps, 480Mbps, 12Mbps, 1.5Mbps (theoretical values)

Connector shape (PC side): USB Type-C

Connector shape (upstream): USB3.2 Gen1 3.1/3.0 Type-C female connector

Connector shape (downstream): USB3.2 Gen1 (3.1/3.0) Type-A female connector x 2

Number of ports: total 2 ports

Power supply: Self-powered and bus-powered compatible

Supply current:

USB3.2 Type-C connector (for PC connection)/USB PD compatible (MAX 85W)

USB3.2 Type-A connector / MAX 900mA per port

PD compatible: Yes

LAN port

Standard: IEEE802.3 (10BASE-T), IEEE802.3u (100BASE-TX), IEEE802.3ab (1000BASE-T)

Regarding communication speed, only when connected via USB3.2 Gen1 (3.1/3.0), 1000BASE-T is supported. To use 1000BASE-T, the hub, modem, and cables must also support 1000BASE-T.

Transmission speed (theoretical): 1000Mbps, 100Mbps, 10Mbps

Communication mode: Full duplex / Half duplex

Access method: CSMA/CD

Supported protocols: IPv4, IPv6

Port shape: RJ-45 port (Auto MDI/MDI-X), supports Auto-Negotiation

Interface: USB specification Ver3.1Gen1 (compliant with USB3.0/2.0/1.1) (backward compatible)

Power supply: Bus-powered / Self-powered compatible

The power consumption of this product is MAX 15W. Therefore, when connected to a 45W USB PD adapter, it supplies 30W to the PC. When connected to a 60W USB PD adapter, it supplies 45W.

Video output ports

Port shape: HDMI Type A (19pin) female x 2

Supported resolution: HDMI1, HDMI2 / MAX resolution: 3840 x 2160 (60Hz). When one display is connected: 3840 x 2160 (60Hz). When two displays are connected: 3840 x 2160 (30Hz).

Supports dual display output

When using PD power supply, a separate PD adapter is required. The power consumption of this product is MAX 15W. Therefore, when connected to a 45W USB PD adapter, it supplies 30W to the PC. When connected to a 60W USB PD adapter, it supplies 45W. (theoretical values)

If the power supplied from the PD adapter is insufficient, some computers may not enter charging mode. In such cases, please try changing to a higher output PD adapter.

Supported models

Supported OS: Windows 11, 10, macOS (Monterey) 12, macOS (Big Sur) 11, macOS 10.12 to 10.15

Supported devices: USB 3.2 Type
