Sanko Techno
Manufacturer contact: 0120-350-514●Adopts a head shape compliant with JIS standards, improving workability and the fit of the component.
●No plug required, and the drilling diameter can be small.
●Steel products use Geomet treatment without hexavalent chromium, and stainless steel products use Spack treatment.
●For concrete, blocks, and wood
●For securing wiring and piping, attaching switch boxes, and installing door frames
●Embedding depth (mm): 40
●Maximum tensile load (kN): 5.3
●Drilling depth (mm): 70
●Embedding depth (mm): 40
●Overall length (mm): 60
●Nominal diameter: 6
●Head height (mm): 3.4
●Drilling diameter (mm): 5.3
●Suitable bit: No.3
●Weight (g): 8.77
●Head diameter (mm): 12.0
●Head diameter (mm): 12.0

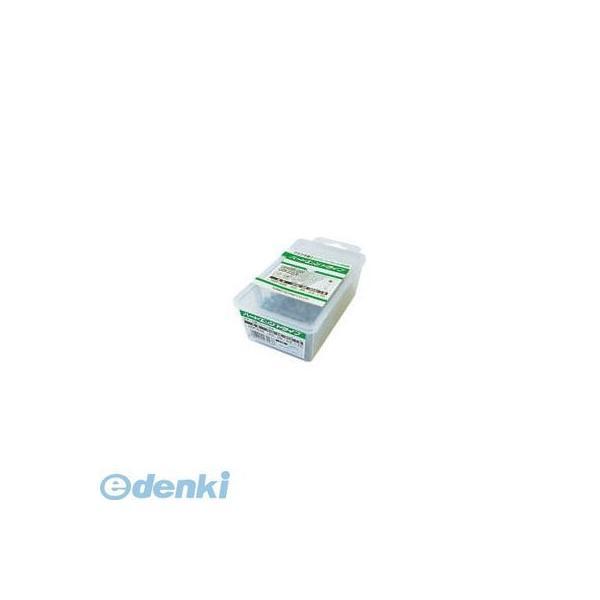

Boxed
Steel
Geomet treatment
●Surface treatment: Geomet treatment
●The maximum tensile load is based on concrete strength Fc=21N/mm².
●Pre-drilling must be performed with the specified drilling diameter.
●Be sure to remove the chips from the pre-drilled hole.
●Sizes with nominal diameter 4 should be installed using a manual screwdriver.
●Do not overtighten. Excessive tightening may cause the screw to break or the head to strip.
| Product # | ED1945968 |
|---|
