Sanko Techno
Manufacturer contact: 0120-350-514【Features】

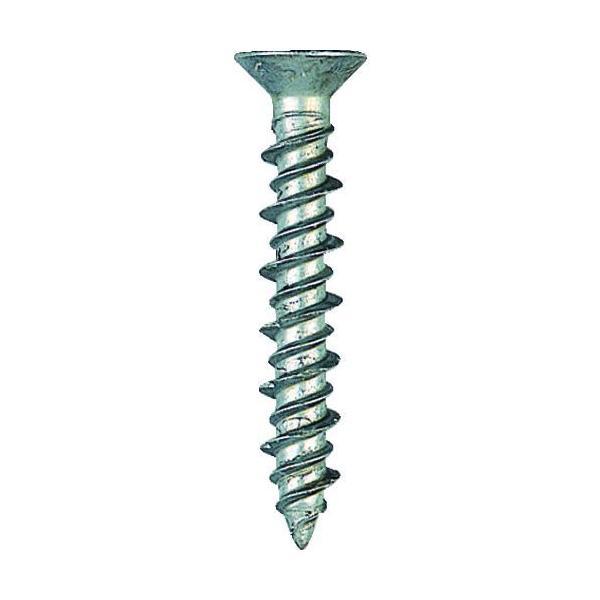

● No plug required, the pilot hole is small in diameter.
● Secure fastening with both high and sharp thread crests and low thread crests.
● Since no plug is required, the drilling diameter can be small.
● Firmly fixed to the workpiece with both high and low thread mechanisms.
【Applications】
● For concrete, blocks, and wood.
● For securing wiring and piping saddles.
● For concrete, blocks, and wood.
● For securing wiring and piping saddles, attaching nameplates, attaching interior base materials, installing lighting fixtures, etc.
【Specifications】
● Nominal diameter d (mm): 5
● Pilot hole diameter (mm): 4.3
● Embedment depth (mm): 22
● Maximum tensile load (kN): 2
● Drilling depth (mm): 35 - t
● Length (mm): 25
● Compatible screwdriver: Phillips No.2
【Material/Finish】
● Steel
● Surface treatment: SV (Silver Bick) treatment
【Caution】
● The maximum tensile load value is based on concrete strength Fc 21 N/mm².
● The drilling depth is the total length + 10 mm - t (thickness of the attached object).
【Country of origin】
Japan
| Product # | ED594725 |
|---|
