積水化学工業
メーカーお問い合わせ：03-5521-0505【特長】

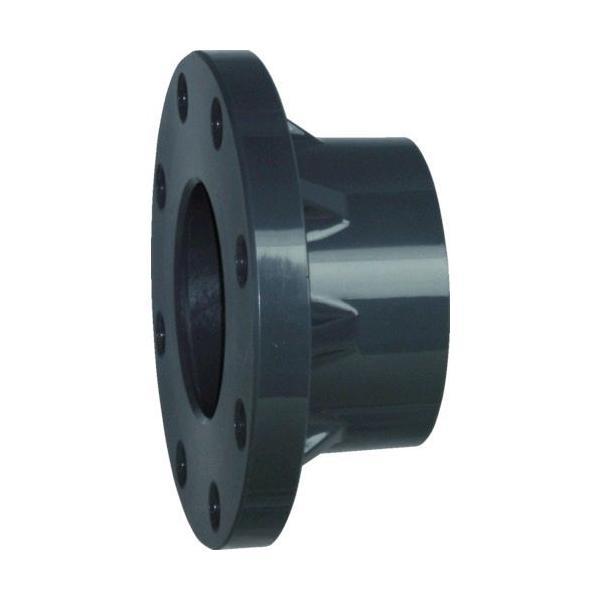

●耐衝撃性にすぐれたHI-PVC製フランジです。
●酸性またはアルカリ性の薬品や海水で腐食することなく安心してご使用いただけます。
【用途】
●化学工場薬品配管・半導体工場純水配管・水産工場海水配管・食品工場廃水処理ラインなどの配管に。
【仕様】
●呼び径A：80
●呼び径B：3
●外径(mm)：185
●内径(mm)：78
●厚さ(mm)：22
●ボルト穴中心径(mm)：150
●ボルト穴数：8
●ボルト穴径(mm)：19
●L(mm)：72
●使用圧力(K)：10
●穴数：8
●呼び径：3B
●サイズ：80A
●材質：耐衝撃性硬質塩化ﾋﾞﾆﾙ(HI-PVC)
●塩ビ管呼び径：75
●適用ボルト首下(mm)：75
●適用ボルト呼び(mm)：M16
【仕様２】
●最高使用温度：60℃
●最高許容圧力：1.0MPa(20℃)
●JIS10K仕様(JIS B2220規格に準ずる)
【材質／仕上】
●硬質ポリ塩化ビニル(耐衝撃タイプHI-PVC)
【注意】
●接着剤の使用時には、換気など十分ご注意ください。
●施工方法は標準施工をお願いします。
●締め付けトルクにご注意ください。
●片締めにならないようご注意ください。
【原産国】
台湾
| Product # | ED1977253 |
|---|
