積水化学工業
メーカーお問い合わせ：03-5521-0505【特長】

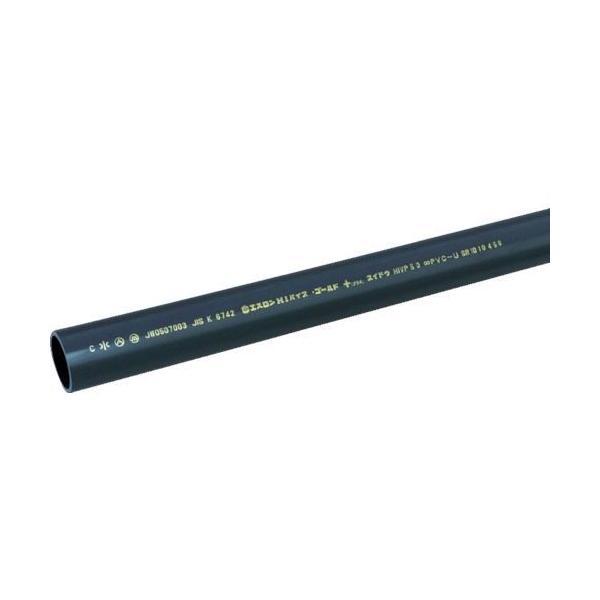

●耐食性に優れた硬質塩化ビニル製のパイプです。
●HIゴールド樹脂を開発採用し、従来のHI樹脂に比べると2倍以上の耐衝撃性能と4倍以上の接着強度を発揮できるようになりました。
●純粋な硬質塩化ビニルからつくられるエスロンパイプは、人体に無害で水に色や匂いがつきません。
【用途】
●建物内の給水設備など。
●ＨＩ－TS継手をご使用下さい
●1．０Ｍ規格品品です
●濃紺
●接着剤はエスロンＮＯ．８０Ｓを使用
【仕様】

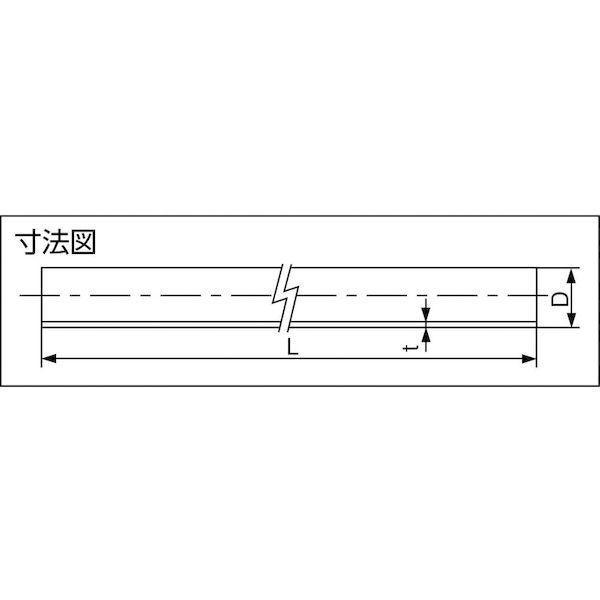

●呼び径(mm)：25
●L(mm)：1000
●D(mm)：32
●t(mm)：3.5
●使用温度範囲(℃)：5～40
●色：濃紺
●最高使用温度(℃)：50℃
●材質：耐衝撃性硬質ポリ塩化ビニル管(HI-PVC)
●HIﾊﾟｲﾌﾟ呼び径：25mm
●D：32mm
●L：1000mm
●各寸法には許容差があります
【仕様２】
●使用温度範囲：5～40℃
●最高使用圧力：1.0MPa
●JIS K6742規格品
【材質／仕上】
●耐衝撃性硬質ポリ塩化ビニル(HI-PVC)
【注意】
●接着剤の使用時には、喚起等十分ご注意下さい。
●施工方法は標準施工をお願いします。
●ｶﾀﾛｸﾞ参考資料の施工・性能・安全性の注意を必ずご参照下さい。
●樹脂製品は温度上昇に伴い耐圧性能が低下します。
【原産国】
日本
| Product # | ED2877521 |
|---|
