Code: 4713436173366

Brand: POWERCOLOR

Model: AXRX 6700XT 12GBD6-3DHE/OC

Product size: Height 5, Width 14.5, Depth 33.3

Product weight: 500

About this product

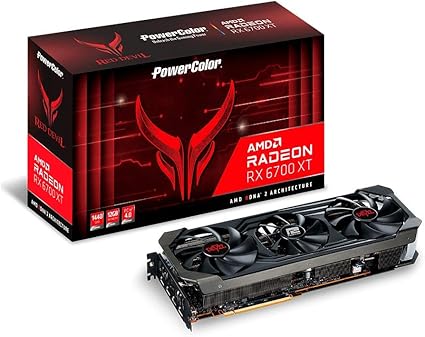

AMD Radeon RX6700XT equipped GDDR6 12GB model
Red Devil series
DisplayPort x3, HDMI x1
Included accessories: Quick guide
› See more Graphics coprocessor AMD Radeon RX 6700 XT
Brand POWERCOLOR
Graphics RAM size 12
GPU clock speed 2514 MHz
Video output interface DisplayPort, HDMI About this product
AMD Radeon RX6700XT equipped GDDR6 12GB model
Red Devil series
DisplayPort x3, HDMI x1
Included accessories: Quick guide
› See more

Shipping size: Height 37, Width 31.2, Depth 11.9

Shipping weight: 1619

Chip Radeon RX 6700XT Memory GDDR6 12GB (192-bit memory bus) Core clock Boost 2622MHz (OC)/2615MHz (Silent) Memory clock 16Gbps Interface PCI-E 4.0 x16 Output HDMI 2.1 *1 / DP *3 Compatible with DirectX 12 Auxiliary power 8pin 2 Board size 320*130*50mm Manufacturer's description

Red Devil for the ultimate 1440p gaming experience
Red Devil RX 6700 XT, like the Red Devil RX 6900 XT, has a cool and ruthless yet impressive appearance. The triple fan cooler design keeps the card cool while delivering an excellent gaming experience. Moreover, it remains whisper-quiet even under load. Red Devil RX 6700 XT is a graphics card that will surprise you.
Design for performance and reliability
PowerColor Red Devil RX 6700 XT features a triple fan design 100mm x 90mm x 100mm, a cooler with 6×6Φ nickel-plated heat pipes, and a large nickel-plated copper base. Additionally, the Red Devil RX 6700 XT is equipped with a 10+2 phase VRM with DrMOS, polymer capacitors, and two 8-pin PCI-E connectors, providing stable power through an advanced PCB design.
Advanced experience
Ultimate responsiveness and smooth gaming are further enhanced by AMD Radeon Anti-Lag and AMD Radeon low-latency gaming technology. Over 1,300 AMD FreeSync gaming displays, HDMI 2.1 VRR technology, and PCIe 4.0 compatible motherboards elevate your gaming experience.
Gaming DNA for PC and consoles
AMD RDNA 2 architecture is the foundation for next-generation gaming PCs and consoles. It revolutionizes PC gaming graphics and cloud gaming. AMD RDNA 2 is entirely different from previous graphics architectures, enabling integrated improvements in visual effects and gameplay across multiple gaming platforms.

1. Backplate Metal backplate reinforces the card and improves heat dissipation.
2. Dual BIOS BIOS allows you to choose modes according to your needs, such as overclocking or silent operation.
3. More powerful components, better performance Dr. MOS provides excellent power efficiency and performance, while polymer capacitors ensure high reliability. The Red Devil features more robust components, with a 10+2 phase VRM offering excellent overclocking and stability for true gamers.
4. Cooler Equipped with 6×6Φ heat pipes and a 25% larger heatsink surface area, ensuring sufficient cooling and quieter performance.

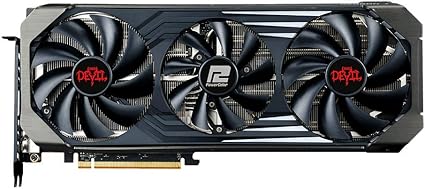

5. Triple fan design Two 100mm and one 90mm static pressure fans enable increased airflow and longer circulation. RGB shroud, side plate, and backplate with RGB enable customizable and personalized color effects.
Performance to dominate gaming
Break through conventional concepts and achieve ultimate 1440P gaming. Built on AMD RDNA 2 architecture.
Powerful performance for 1440P
The AMD Radeon RX 6700 XT graphics card delivers 1440P gaming and frame rates. Experience the benefits of up to 40 high-performance compute units, revolutionary AMD Infinity Cache, and up to 12GB of dedicated GDDR6 memory. Pairing the AMD Radeon RX 6700 XT graphics card with AMD Ryzen 5000 series desktop processors allows you to experience higher levels of gaming performance through AMD Smart Access Memory technology.
Vivid visuals
Utilize the AMD Radeon RX 6700 XT graphics card, which supports DirectX 12 Ultimate, to realize immersive gaming with stunning visuals. Experience 1440P gaming with rich details enabled by AMD RDNA 2 architecture, DirectX Raytracing (DXR), Variable Rate Shading (VRS), and AMD FidelityFX features, delivering realistic lighting, shadows, and reflections.

Two ball bearings - 4 times longer lifespan
Cooling fans are equipped with two ball bearings, extending lifespan fourfold.
Silent fan technology semi-fanless - 0dB silent gaming
Semi-fanless silent fan technology turns off fans intelligently below 60°C, enabling silent gameplay during medium and low loads while reducing power consumption.
Unique cooling fan design, advanced cooling solutions
Compared to previous generation graphics cards, PowerColor Red Devil RX 6700 XT features a unique cooling fan design that increases airflow and air pressure by up to 60%, achieving excellent thermal performance.
- Fan blade angles are downward to effectively accelerate airflow and maintain excellent cooling performance.
Enhanced backplate
The metal backplate provides high rigidity, reinforcing the card to prevent PCB bending. The hollow areas promote airflow and facilitate rapid heat dissipation.

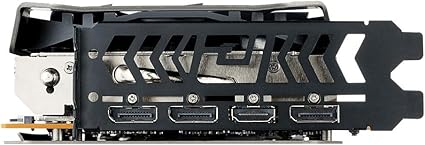

Output LED
No flashlight needed when plugging in output. The LED-lit port allows easy access to the desired output.

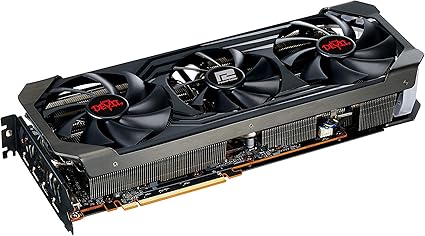

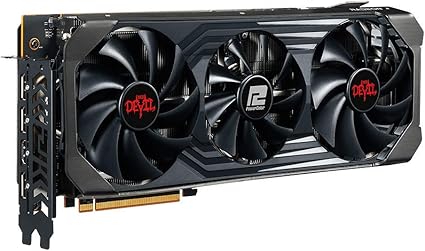

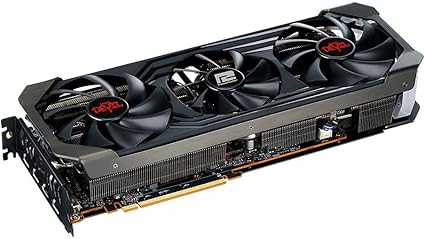

Outstanding triple fan cooler for ultimate gaming experience
Red Devil RX6700XT is equipped with excellent cooling for true gamers. The 6×6Φ nickel-plated copper heat pipes efficiently spread heat to the heatsink. Increasing the fins on the heatsink expands surface area, improving heat dissipation and performance.
Vertical aluminum fin design
Vertical layout and increased aluminum fin array dramatically improve heat dissipation. Copper heat pipes gather heat and efficiently disperse it through the extensive fin array.
Copper base direct contact
A smooth nickel-plated copper base directly contacts the GPU, enhancing thermal conductivity, improving VRAM heat dissipation, and keeping the graphics card cool.
Platinum power kit DrMos
Reliable digital controller and polymer capacitors
Excellent power efficiency, extremely low power loss, better thermal protection
10+2 phase VRM for excellent overclocking and stability
Dual BIOS
Allows mode selection based on specific scenarios. Switching to OC mode pushes the graphics card limits for high-end gaming. Switching to silent mode enables quiet gameplay.
RGB
Use Devil Zone RGB to select your own RGB effects for a refined appearance. Additionally, plugging the ARGB LED cable into the motherboard seamlessly synchronizes the Red Devil RGB lighting with the motherboard, creating a unique aesthetic atmosphere.

Specifications

Graphics engine AXRX 6700XT 12GBD6-3DHE/OC

Video memory Stream processors 2560 Units

Engine clock OC up to 2514MHz, Game up to 2622MHz, Boost

Engine clock STD/Silent up to 2433MHz, Game up to 2615MHz, Boost, Memory clock 16.0 Gbps

Memory interface 192-bit

DirectX support 12

Bus standard PCIe 4.0

Standard display connectors 1 x HDMI 2.1, 3 x DisplayPort 1.4

Custom specifications

Product notes

When running typical gaming applications, "Game Clock" refers to the expected GPU clock and is set according to Total Graphics Power (TGP). Actual individual game clock results may vary. "Boost Clock" is the maximum frequency achievable on the GPU during burst loads. The feasibility, frequency, and sustainability of boost clock depend on various factors including thermal conditions, applications, and load variations, among others.
