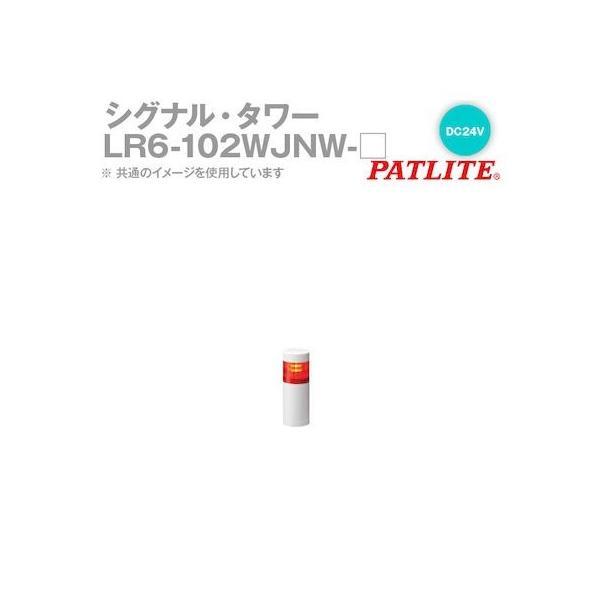

PATLITE LR6-102WJNW-R Signal Tower LED Stacked Signal Light Red LR6102WJNWR

PATLITE LR6-102WJNW-R Signal Tower LED Stacked Signal Light Red LR6102WJNWR

  • $43.44 USD
Seller: edenki
Add to wishlist
Protection
ZenPlus Authenticity Guarantee, 30-days returns & 30 days money back guarantee. Details here.
Shipping
Your order will be shipped when ZenPlus receives all items from shops. Once shipped from Japan, estimated delivery time is 2-4 weeks for standard shipping and 3-4 days for express (DHL, UPS, FEDEX) shipping. ZenPlus covers shipping insurance to protect your items.
Payment
We ensure that your personal and payment information is kept secure by following PCI-DSS standards and using 256-bit encryption for all transactions.

パトライト
メーカーお問い合わせ：0120-497-090
【商品説明】
赤(LR6-102WJNW-R)
黄(LR6-102WJNW-Y)
緑(LR6-102WJNW-G)
●特長
インナーレンズを放射状に配置した新設計で、中心に配置したLED光を効率的かつ、効果的に回り込ませることで、より強い360°全面均一発光を実現しました。
円筒型無孔性ブザー採用で360°全方位共鳴を実現。
LEDユニットを回してワンタッチでかんたんに色組替えや、段数の増段・減段が可能です。
従来品では追加ネジ部品の購入や工具の使用が必要でしたが、LRシリーズでは不要となり工数も削減されます。
ブザーの増段も可能になりました。
[サイズ] Φ60
[段数] 1段
[定格電圧] DC24V
[取付け／配線仕様] 直付け・キャブタイヤケーブル
[点滅／ブザー有無] 点滅無／ブザー無
[ボディ色] オフホワイト
[消費電力] 1.0W
[質量] 0.280kg
●LRシリーズ組立完成品 共通仕様
[使用周囲温度] -20℃～+50℃
[使用周囲湿度] 90%RH以下、結露なきこと
[保存周囲温度] -30℃～+60℃
[保存周囲湿度] 90%RH以下、結露なきこと
[取付場所] 屋内
[取付方向] 正方向
[保護等級]IP65(IEC 60529) / NEMA TYPE 4X，13（LJタイプのみIP54)環境条件：正方向
[絶縁抵抗] 電源充電部と非充電金属部間 DC500Vメガにて1MΩ以上
[耐電圧] 電源充電部と非充電金属部間 AC500Vにて1分間(M2タイプはAC1500V)
[オープンコレクタ] NPN / PNP （AC100～240VタイプはNPNのみ）
[適合規格] UL 508， CSA-C22.2 No. 14、EMC指令 (EN 61000-6-4， EN 61000-6-2)、RoHS指令 (EN 50581) 、FCC Part15 SubpartB Class A 、KC (KN 61000-6-4， KN 61000-6-2)、低電圧指令(IEC/EN60947-5-1，EN62471)※M2タイプのみ
●LEDユニット　共通仕様表
[定格電圧] DC24V
[定格消費電流／定格消費電力]Typ. 0.04A/ 1WMax. 0.045A/ 1.3W
[適合規格] UL 508， CSA-C22.2 No. 14、EMC指令 (EN 61000-6-4， EN 61000-6-2)、RoHS指令(EN 50581)
●外部接点容量（Is:電流容量 Vs:耐電圧 IL:漏れ電流）
[定格負荷電圧] DC24V
[LEDユニット (1段あたり)]信号線電流 40mA接点容量 Is ≧ 100mA Vs ≧ DC35V
[電源]消費電流 250mA接点容量 Is ≧ 700mA Vs ≧ DC35V
[突入電流]信号線 なし電源線 0.7A，0.5ms以下
[接点漏れ電流] IL ≦ 0.1 mA

Product # ED3069468
