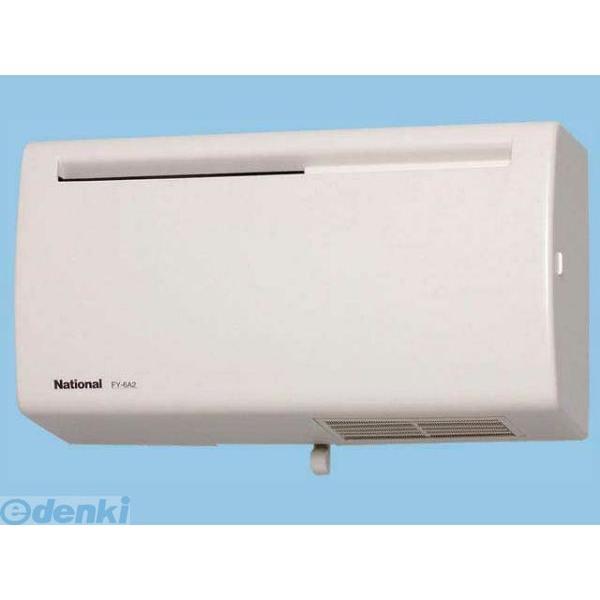

FY-6A2-W
Product Number FY-6A2-W
Product Name Q-hi Fan Simultaneous Exhaust and Intake Type Wall-mounted Slim Design for 6 Tatami Rooms Body Color: White
Application Living Room Features
Q-hi Fan is a ventilation fan that complies with the revised Building Standards Act, which mandates constant ventilation in living rooms.
Wall-mounted type with a slim profile of only 9.8 cm in depth, enhancing interior design.
●Main body depth of 9.8 cm in a slim design.
●Suitable for a room of 6 tatami mats with a required ventilation rate of "0.5 times/hour".
●The fresh air intake filter is a pleated type with improved particle collection, equipped with "Super Allergen Buster," "Katekine," and "Bio Sterilization" to suppress activity of allergens and viruses, providing clean air intake.
●Adopts louver with anti-static agent to prevent dirt accumulation.
●Can be installed in wall thicknesses from 70 to 285 mm.
●Includes manual shutter (with shutter-linked main switch).
●Equipped with quick-connect terminals.
●Main body color: White.
●Please use either the separately sold FY-SV05WC or FY-SV05W switches.
Set conditions:
・Ceiling height 2.5 m.
・Area of 1 tatami mat is 1.65 m².
・No door undercut.
・Use specified outdoor hood model.
・Calculated with a ventilation rate of 0.5 times.
●Replacement fresh air intake filter (sold separately) FY-FB1008A (with Super Allergen Buster function). 《Main features of Q-hi Fan》
●Constant simultaneous exhaust and intake: Designed for individual rooms without door undercuts, with one unit installed per room. It operates with a balanced airflow where intake exceeds exhaust.
●During heavy snow, typhoons, or strong winds, temporarily stop operation and close the shutter.
●In particularly cold conditions or where outdoor wind is strong, stopping operation may allow cold air to enter.
●Condensation may occur when outdoor temperature is below -5°C, indoor temperature is 20°C, and indoor relative humidity is 50% or higher; wipe with a cloth.
●Do not use in cold regions.
| Product # | ED859442 |
|---|
