**Features**

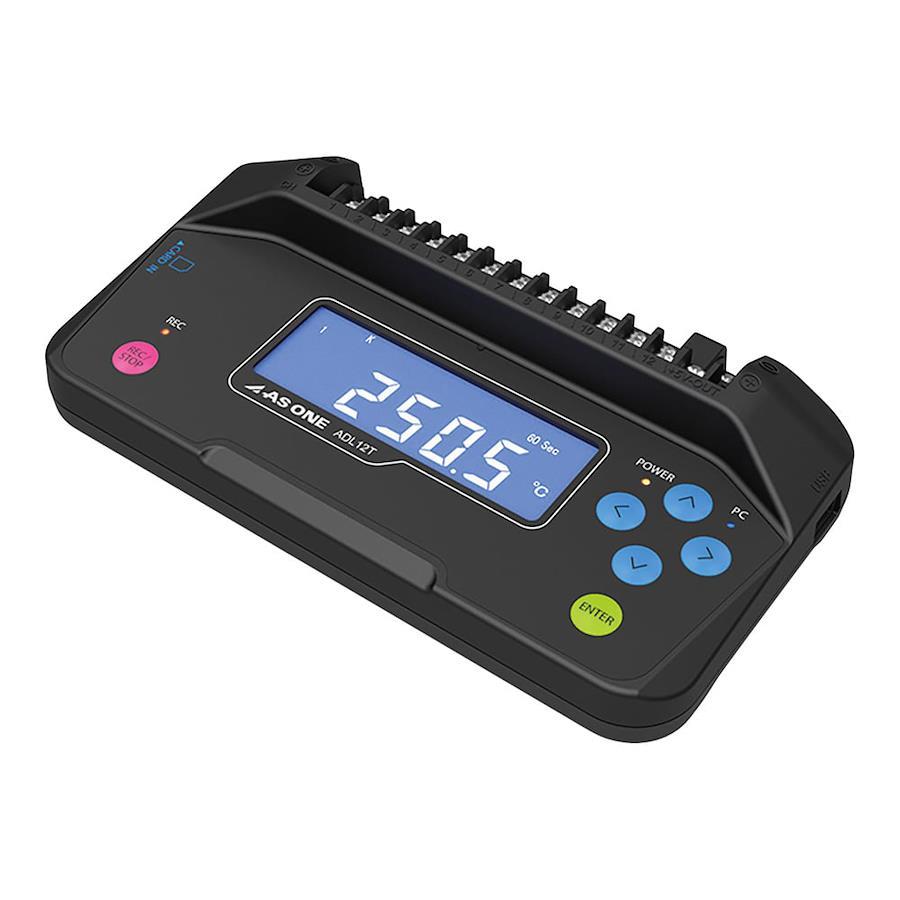

This is a multi-logger capable of measuring up to 12 channels of thermocouples or DC voltage (humidity measurement is limited to 1 channel using the +5V and 12CH ports).
By connecting to a PC via USB cable, you can perform measurements with graph display and list display (requires installation of the application downloaded from the specified URL onto your PC).
Recorded data is saved in CSV format to either the SD card or the PC.
Data can be transferred to the PC via USB cable (not possible during recording).
Features USB power supply, allowing power from the included AC adapter as well as various USB ports/portable batteries.
Further evolution! Now supports SDHC.
**Specifications**
* Size (mm): 167 × 91 × 35.8
* Weight (g): Approx. 250
* Power Supply: AC adapter or USB input (includes 1m USB A-miniB cable)
* Included AC Adapter: Input/AC100V-240V 50/60Hz 0.2A, Output/DC5V 1.0A
**Main Unit Specifications**
* Thermocouple Measurement: B, R, S, N, K, E, J, T (select one)
* Measurement Temperature Range: -200 to +1370℃ (when using K thermocouple)
* Temperature Measurement Accuracy: ±0.05% of rdg +1.0℃ (K: -100 to +1370℃ at 25℃)
* DC Voltage Measurement: 100, 500mV, 1, 5, 10, 50V
* DC Voltage Measurement Accuracy: ±0.1% of F.S.
* Humidity Measurement: 0-100%RH
* Humidity Measurement Accuracy: ±5%RH (TYP) (10-95%RH at 23℃)
* Input Channels: Analog/12CH, +5V-OUT for humidity measurement/1CH
* Input Terminal Shape: Screw terminal M3 / M3.5 (outer diameter 6.2mm or less / inner diameter 3.2mm or more)
* Sampling Period: 5, 10, 30, 60 sec, 5, 10, 30, 60 min
* PC Interface: USB2.0 (Full Speed) Mini-B type
* Card Slot: 1 slot, SDHC compatible, Usable memory: 64GB-32GB (SDXC not supported)
* Memory: SD card, PC storage using application
* Recording Format: CSV
* Recording: Saved to one file from the start of recording
* Number of Recordings: 5,000,000 times (for 2GB)
* Accessories: Quick start guide, AC adapter, USB cable approx. 1M (for power and communication)
**Application Specifications**
* Supported OS: Windows® 8/8.1/10 (32/64bit)
* Functions: Real-time measurement, start/stop recording, data saving, main unit settings, SD card data reading, display on the application
* Display Method: Graph display (with overlay function), list display, display of measurement data's maximum, minimum, average, and comparative values.
* Thermocouple connection wires are not included with the main unit. Please prepare them according to your application.
* Rental units are available.
Download the dedicated application (v121) here.
Supported OS: Windows® 7/8/8.1/10 (32/64bit)
Click here for those who need a driver for USB connection.
Differences from previous model numbers: Rear terminal block (refer to 3-6823-31 ADL 12N for details of the change)
| Product # | AS1-3-6823-41 |
|---|
