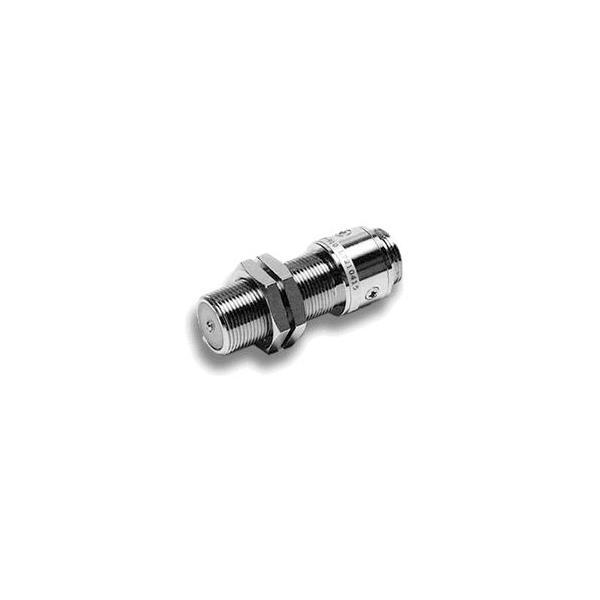

Ono Sokki MP-935 Electromagnetic Rotation Detector MP935

Ono Sokki MP-935 Electromagnetic Rotation Detector MP935

  • $240.66 USD
Seller: edenki
Add to wishlist
Protection
ZenPlus Authenticity Guarantee, 30-days returns & 30 days money back guarantee. Details here.
Shipping
Your order will be shipped when ZenPlus receives all items from shops. Once shipped from Japan, estimated delivery time is 2-4 weeks for standard shipping and 3-4 days for express (DHL, UPS, FEDEX) shipping. ZenPlus covers shipping insurance to protect your items.
Payment
We ensure that your personal and payment information is kept secure by following PCI-DSS standards and using 256-bit encryption for all transactions.

小野測器
メーカーお問い合わせ：06-6386-3141

【特長】●構造が簡単、剛性、耐環境性に優れ、振動、温度、油、塵埃などの影響を受けません。●非接触検出ですから、回転体に負荷をかけず安全な計測が可能。●自己発電型ですので、電源を必要とせず、現場設置に最適です。●防油、高温、超小型、長型など15種類の豊富なラインアップ

【概略仕様】

検出器

 汎　用 汎　用
ケーブル付		 低インピーダンス 防　油 防油・耐熱（150℃） 耐熱
（220℃）
MP-9100* MP-911 MP-9120* MP-930 MP-935 MP-936
直流抵抗値*1 (Ω) 850?950 850?950 85?105 850?950 600?700 800?900
インダクタンス (mH)
〔1kHz、 T.Y.P〕		 300 300 30 300 270 370
インピーダンス (Ω)
〔1kHz、 T.Y.P〕		 2k 2k 240 2k 1.8k 2.5k
出力電圧 (Vp-p)
〔1kHz、 T.Y.P〕 *2		 2.0以上 2.0以上 2.0以上 2.0以上 2.0以上 2.0以上
検出可能周波数範囲*3/*4
(Hz)		 200?35，000 200?35，000 200?80，000 200?35，000 300?35，000 300?35，000
検出歯車適合モジュール 1?3 1?3 1?3 1?3 1?3 1?3
使用温度範囲 ?10℃?＋90℃ ?10℃?＋90℃ ?10℃?＋90℃ ?10℃?＋90℃ ?10℃?＋150℃ ?10℃?＋220℃
耐振動*5 (m/s2) 196 196 196 196 196 196
耐衝撃*6 (m/s2) 1960 1960 1960 1960 1960 1960
質　量 (g) 90 300
（コードを含む）		 90 100
（コードを含む）		 100 100
周囲磁界 (T) 0.03以下 0.03以下 0.03以下 0.03以下 0.02以下 0.02以下
信号ケーブル 無し 5m直出し
M3圧着端子		 無し 0.5m直出し
BNC		 耐熱1m直出し
BNC		 耐熱1m直出し
BNC

＊1 ：直流抵抗値の温度係数は 0.4 ％/℃です。
＊2 ：負荷抵抗10k Ω、M ＝1 、ギャップ＝0.5mm
＊3 ：60P/R の検出歯車を使用すると周波数表記（Hz ）が回転速度表記（r/min ）と一致します。
＜周波数 （Hz）= 回転速度 （r/min） ÷ 60 （s）×60 （P/R）＞
＊4 ：当社標準歯車 MP- 001 使用時。
＊5 ：JIS E 4031 、5 種、40Hz 、X 、Y 方向各2 時間、Z 方向4 時間。
＊6 ：X 、Y 、Z 方向各3 回。

● 記載事項は変更になる場合がございます。

Product # ED453148
