Ono Sokki
Manufacturer Inquiries: 06-6386-3141

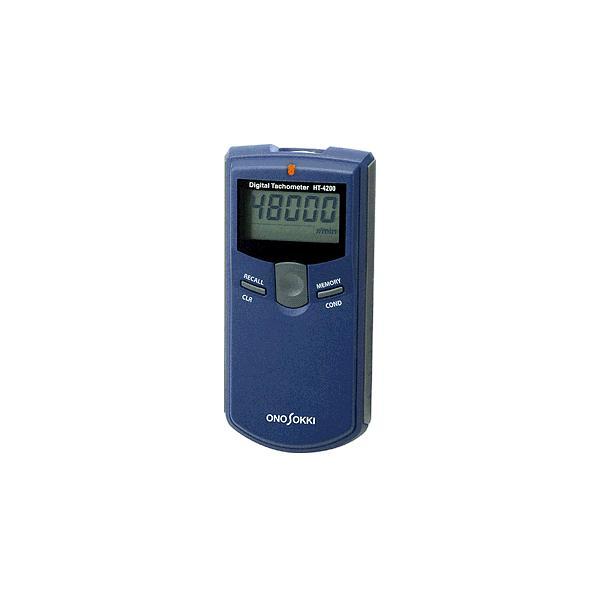

An easy-to-use, high-performance, compact handheld non-contact digital tachometer. By attaching one reflective mark to the shaft and pointing the instrument at the mark while pressing the measurement button, you can directly display rotational speeds from 30 to 50,000 r/min with high accuracy. Measurement results can be stored internally as history, up to 10 items. Furthermore, it supports input from multiple reflective mark signals, enabling measurement from extremely low speeds of 4 r/min by attaching, for example, 8 reflective marks to the shaft. The ergonomically designed, easy-to-use casing is compact and slim enough to fit in a chest pocket. Since measurement is performed optically using a non-contact method, it is extremely safe, and there is no need to worry about applying unnecessary force or load to the rotating body, ensuring safe measurement.
[Features] ●Compact and lightweight non-contact measurement type, 129 x 62 x 26.4mm, 90g ●Large LCD display with excellent visibility (character height 10.5mm) ●Wide measurement range of 30 - 50,000 r/min (when using one reflective mark) ●Memory function for convenient confirmation of measurement results ●Supports input from multiple reflective mark signals, enabling measurement of low rotational speeds down to 4 r/min
[Outline Specifications]
| Rotational Speed Measurement Range |
| ||||||||||||||
| Measurement Unit | 1 r/min | ||||||||||||||
| Detection Distance | 20 - 300 mm | ||||||||||||||
| Display Digits | 5 digits | ||||||||||||||
| Display Method | 7-segment LCD | ||||||||||||||
| Measurement Display Time | 1 second automatic repeat (however, 2 seconds for 30 - 60 r/min) | ||||||||||||||
| Measurement Accuracy | Within ±1 r/min for 30 - 12,499 r/min Within ±2 r/min for 12,500 - 24,999 r/min Within ±4 r/min for 25,000 - 50,000 r/min | ||||||||||||||
| Memory Function | Stores 10 measurement results in non-volatile memory (recorded values are retained even when power is off) | ||||||||||||||
| Data Hold Function | Holds the last measured value for 30 seconds after measurement completion, then auto power off after 30 seconds | ||||||||||||||
| Pulse Count Setting Function | 1, 2, 3, 4, 6, 8 P/R (selector switch) *Corresponds to the number of reflective marks (input signals) in the rotational speed measurement range | ||||||||||||||
| Over Range Display | "OVER" displayed (displayed when the measured value exceeds the measurement range) | ||||||||||||||
| BAT LOW Display | "B" displayed (displayed when the battery is low) | ||||||||||||||
| Operating Temperature Range | 0 - +40℃ | ||||||||||||||
| Storage Temperature Range | -10℃ - +55℃ | ||||||||||||||
| Power Source | 3 x AAA dry batteries (1.5V), continuous use time approx. 20 hours | ||||||||||||||
| External Dimensions | 129 (W) x 26.4 (H) x 62 (D) mm | ||||||||||||||
| Mass | Approx. 90g (excluding batteries) | ||||||||||||||
| Accessories | 1 sheet of reflective marks (25 pieces of 12mm square), 3 x AAA dry batteries, 1 x instruction manual | ||||||||||||||
| Optional | HT-011 Reflective Marks (10 sheets per set, 25 pieces of 12mm square per sheet) |
| Product # | ED452932 |
|---|
