OMRON
Manufacturer Inquiry: 0120-919-066

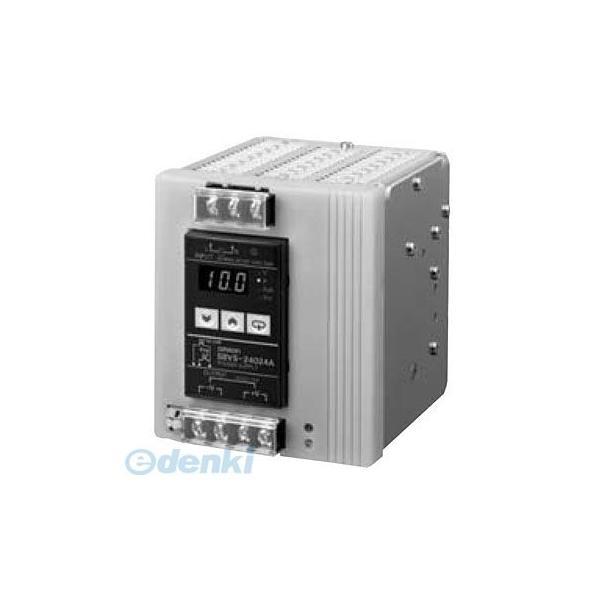

[Features] Replacement time notification function type. Display unit uses 3-digit 7-segment LED display for status indication.
[Mass (g)] 1150 or less
[Type] Type with display monitor
Replacement time notification function type
[Dielectric Strength] AC3.0kV 1min (Input common) and (Output common, Alarm output common) (Detection current 20mA) AC2.0kV 1min (Input common) and (Ground/FG) (Detection current 20mA) AC1.0kV 1min (Output common, Alarm output common) and (Ground/FG) (Detection current 20mA) AC500V 1min (Output common) and (Alarm output common) (Detection current 20mA)
[Output Voltage (V)] 24
[Replacement Interval] Notification display: Yes (Switchable) Notification output: Yes (Transistor output) DC30V max. 50mA max.
[Input Voltage (V)] AC100–240
[Output Current (A)] 10
[External Dimensions (Width W x Height H x Depth D) (mm)] 100 x 115 x 125.3
[Storage Temperature (°C)] -25 to +65
[Function] Series operation: Possible (up to 2 units, external diode required)
Parallel operation: Not possible
Under-voltage detection display: Yes (Switchable), displayed with 7-segment LED (character height 8mm)
[Capacity (W)] 240
[Insulation Resistance (MΩ)] 100 or more (Output common, Alarm output common) and (Input common, Ground) at DC500V
[Operating Ambient Temperature (°C)] -10 to 60
[Power Factor] 0.95 or more
[Mounting Method] Compatible with DIN rail mounting
[Operating Ambient Humidity] 25–85% (Storage humidity 25–90%)
[Input Frequency (Hz)] 50/60Hz (47–63Hz)
[Safety Standards] UL: UL508 (Listing), UL60950-1 cUL: CSA C22.2 No.107.1 cUR: CSA No.60950-1 EN/VDE: EN50178 (=VDE0160) EN60950-1 (=VDE0805 Teil1) Korea S Mark
[Inrush Current (A)] 100V input: 25A or less
200V input: 50A or less
(At 25°C, cold start)
[Mounting Orientation] Standard mounting
[Shock Resistance (m/s2)] 150 (No abnormalities in 6 directions, 3 times each)
[Input Variation] 0.5% or less (at input AC85–264V, 100% load)
[Load Variation] 1.5% or less (at rated input, 0–100% load)
[Vibration Resistance] 10–55Hz, single amplitude 0.375mm
No abnormalities in 3 directions, 2h each
[Input Current (A)] 100V input: 3.8 or less
200V input: 2.0 or less
[Overcurrent Protection] 105–160% of rated output current, inverse L-shaped drooping, auto-reset
[Startup Time (ms)] 1000 or less (at rated input/output)
[Overvoltage Protection] Yes (To reset, turn off the input power, wait for 3 minutes or more, then reapply input power)
[Leakage Current (mA)] 100V input: 0.5 or less
200V input: 1.0 or less
[Output Voltage Adjustment Range (%)] ±10 (at V.ADJ)
[Output Ripple Noise Voltage] 2.0% (p-p) or less (at rated input/output)
[Temperature Variation] 0.05%/°C or less
[Output Hold Time] 20ms or more (at rated input/output)
[Under-voltage Detection Output] Yes (Transistor output) DC30V max. 50mA max
[Output Indicator Lamp] Yes (Color: Green)
[Efficiency] 80% or more
[Harmonic Current Regulations] Complies with EN61000-3-2
[Conducted Radio Frequency Emissions] Complies with EN61204-3 Class A, FCC Class A
[Radiated Radio Frequency Emissions] Complies with EN61204-3 Class A
[Output Voltage Display] Yes (Switchable) Output voltage display resolution: 0.1V Output voltage display accuracy: ±2% (of output voltage value) ±1 digit or less
[Output Current Display] Yes (Switchable) Output current display resolution: 0.1A Output current display accuracy: ±5% F.S. ±1 digit or less (specified at rated output voltage)
[Peak Hold Current Display] Yes (Switchable) Peak hold display resolution: 0.1A Peak hold current display accuracy: ±5% F.S. ±1 digit or less (specified at rated output voltage) Peak hold current signal required: 20ms
| Product # | ED807533 |
|---|
