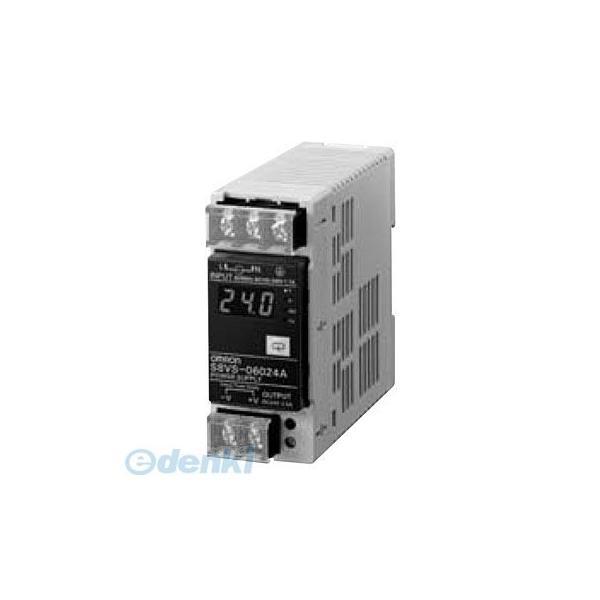

OMRON
Manufacturer Inquiry: 0120-919-066
[Features] Type with replacement time notification function. Display unit shows status with 3-digit 7-segment LED display.
[Mass (g)] 330 or less
[Type] Standard type
[Dielectric Strength (V)] AC3.0kV 1min (Input common) and (Output common, Alarm output common) (Detection current 20mA) AC2.0kV 1min (Input common) and (Ground/FG) (Detection current 20mA) AC1.0kV 1min (Output common, Alarm output common) and (Ground/FG) (Detection current 30mA) AC500V 1min (Output common) and (Alarm output common) (Detection current 20mA)
[Output Voltage (V)] 24
[Replacement Interval] None
[Input Voltage (V)] AC100 to 240
[Output Current (A)] 2.5
[External Dimensions (Width W x Height H x Depth D) (mm)] 40 x 95 x 108.3
[Storage Temperature (°C)] -25 to +65
[Functions] Series operation: Possible (up to 2 units, external diode required) Parallel operation: Not possible Undervoltage detection display: None
[Capacity (W)] 60
[Insulation Resistance (MΩ)] 100 or more (Output common, Alarm output common) and (Input common, Ground) DC500V
[Operating Ambient Temperature (°C)] -10 to 60
[Power Factor] -
[Mounting Method] Compatible with DIN rail mounting
[Operating Ambient Humidity] 25 to 85% (Storage humidity 25 to 90%)
[Input Frequency (Hz)] 50/60Hz (47 to 450Hz)
[Safety Standards] UL: UL508 (Listing, Class2 Output: Per 1310), UL60950-1 cUL: CSA C22.2 No.107.1 (Class2 Output: Per CSA C22.2 No.223) cUR: CSA C22.2 No.60950-1 EN/VDE: EN50178 (=VDE0160), EN60950-1 (=VDE0805 Part1) Korea S Mark
[Inrush Current (A)] 100V input: 25A or less
200V input: 50A or less
(At 25°C, cold start)
[Mounting Direction] Standard mounting
[Shock Resistance (m/s2)] 150 (No abnormalities in 3 times each for 6 directions)
[Input Variation] 0.5% or less (At input AC85 to 264V, 100% load)
[Load Variation] 1.5% or less (At rated input, 0 to 100% load)
[Vibration Resistance] 10 to 55Hz, single amplitude 0.375mm
No abnormalities in 2 hours for each of 3 directions
[Input Current (A)] 100V input: 1.7 or less
200V input: 1.0 or less
[Overcurrent Protection] 105 to 160% of rated output current, inverse L-shaped drooping/intermittent operation type, automatic reset
[Startup Time (ms)] 1000 or less (At rated input/output)
[Overvoltage Protection] Yes (To reset, turn off input power, wait 3 minutes or more, then reapply input power)
[Leakage Current (mA)] 100V input: 0.5 or less
200V input: 1.0 or less
[Output Voltage Variable Range (%)] -10 to +15 (With V.ADJ)
[Output Ripple Noise Voltage] 2.0% (p-p) or less (At rated input/output)
[Temperature Variation] 0.05%/°C or less
[Output Hold Time] 20ms or more (At rated input/output)
[Undervoltage Detection Output] None
[Output Indicator Lamp] Yes (Color: Green)
[Efficiency] 78% or more
[Harmonic Current Regulations] Complies with EN61000-3-2
[Conducted Radio Noise] Complies with EN55011 Group 1 Class B, Conforms to FCC Class A
[Radiated Radio Noise] Complies with EN55011 Group 1 Class B
[Output Voltage Display] None
[Output Current Display] None
[Peak Hold Current Display] None
| Product # | ED807525 |
|---|
