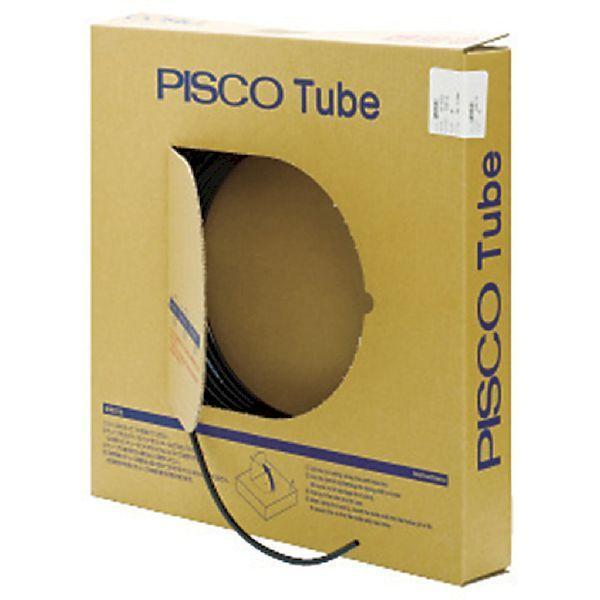

Nippon Pisco
Manufacturer Inquiries: 0265-76-2511[Features]
● Excellent pressure resistance, abrasion resistance, and cold resistance.
● Resistant to bending fatigue and can be used stably for a long time.
● Cut marks are displayed at approximately 500mm intervals for convenient tube cutting.
[Specifications]

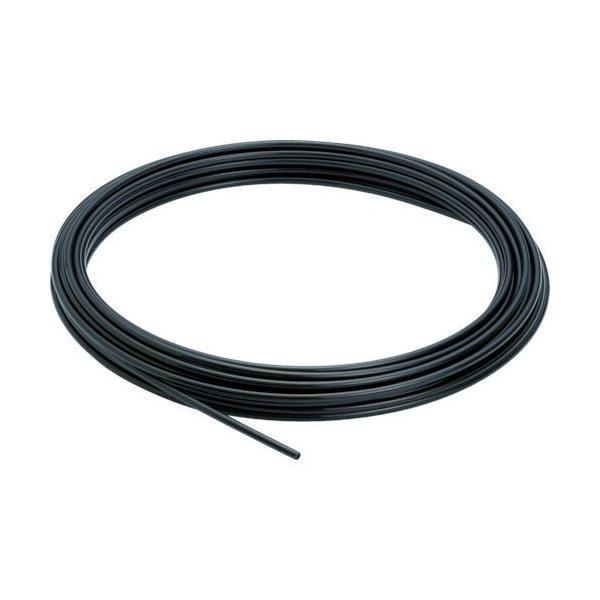

● Color: Black
● Outer diameter (mm): 10
● Inner diameter (mm): 7.5
● Minimum bending radius (mm): 30
● Total length (m): 20
● Fluid to be used: Air, Water (with conditions), Thermal catalyst oil (with conditions)
● Wall thickness (mm): 1.25
● Tube outer diameter (φD) (mm): φ10
● Tube inner diameter (φD) (mm): φ7.5
● Minimum mounting radius (mm): 45
[Specifications 2]
● Operating pressure: 1.5MPa (at 20℃ 65%RH)
● Operating vacuum pressure: -100kPa
● Operating temperature range: -15 to 90℃ (provided freezing does not occur)
● Manufactured in an ISO14001 certified factory
● Manufactured in an ISO9001 certified factory
[Material/Finish]
● Nylon (PA12)
[Notes]
● Do not apply stress such as tension, twisting, or extreme bending to the tube. This may cause the tube to collapse, burst, or detach.
● Do not scratch the tube by rubbing or tangling it. This may cause the tube to burst.
● The burst pressure of the tube decreases as the temperature rises, so understand the operating pressure and ensure a sufficient safety margin.
● Use the tube with a bending radius greater than or equal to the minimum bending radius.
● When piping the tube, ensure sufficient allowance considering changes in length, etc.
[Country of Origin]
Japan
| Product # | ED1522299 |
|---|
