Code:0018208021512

Brand:Nikon

Model:321234

Product size: Height 6.6, Width 6.6, Depth 3.2

Product weight: 249.5

About this product
TC-17E II
› See more Nikon brand
Focal length explanation: 1mm
Lens type: Teleconverter
Supported mount: Nikon F
Description of camera lens: Compact lightweight AF-S AF-I lens dedicated 1.7x teleconverter. About this product
TC-17E II
› See more

Shipping size: Height 11, Width 11.2, Depth 11.2

Shipping weight: 340.2

Product introduction

Compact lightweight AF-S AF-I lens dedicated 1.7x teleconverter

Please read caution and disclaimer

For initial defects and specifications of this product, please contact Nikon Customer Support Center directly.
Nikon Customer Support Center
Tel: 0570-02-8000
Business hours: 9:30~18:00, excluding year-end/New Year holidays, summer holidays, etc., as explained by the manufacturer daily

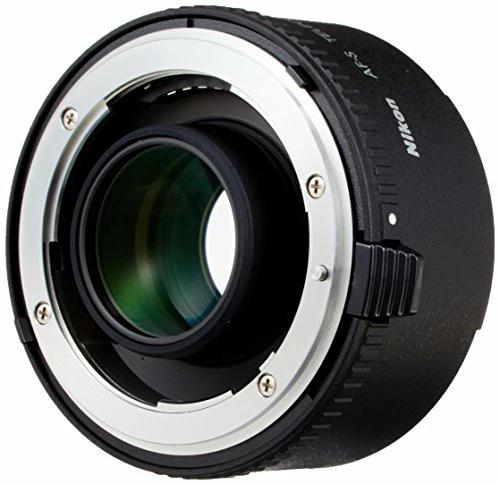

AI AF-S TELECONVERTER TC-17E II

The AF-S teleconverter is an attachment lens that, when mounted between AF-S AF-I lenses, enlarges the main lens's focal length by 1.7 times. It features good optical performance, fully utilizes the main lens's capabilities, and provides excellent image quality. It also supports various signal transmissions of the main lens.

The F-value becomes 1.5 stops darker.

Specifications table

Focal length: 1.7 times that of the main lens

Lens configuration: 4 groups 7 elements

Minimum focusing distance: same as main lens

Aperture system: automatic aperture linkage

Metering system: open aperture metering linkage

Mount: Front side: AF-S/AF-I lens dedicated mount, Rear side: Nikon F mount

Dimensions: Approx. 66mm maximum diameter, 31.5mm length, distance between bayonet reference surfaces, total length 43.5mm

Mass: approx. 250g

Aperture linkage range: f/2 to f/32, effective F-value: f/3.36 to f/53.82

Magnification: 1.7 times that of the main lens

Accessories
Teleconverter cap BF-3A
Rear cap LF-1
Soft case CL-0715

Notes on using AF-S teleconverter

The following lenses are compatible with AF-S teleconverters.

AF-S VR Micro-Nikkor 105mm f/2.8G IF-ED, AF-S NIKKOR 200mm f/2G ED VR II, AF-S VR Nikkor 200mm f/2G IF-ED

AF-S NIKKOR 300mm f/2.8G ED VR II, AF-S VR Nikkor 300mm f/2.8G IF-ED, AF-S Nikkor 300mm f/2.8D IF-ED II, 5

AF-S Nikkor 300mm f/2.8D IF-ED, 5, AF-I Nikkor 300mm f/2.8D IF-ED, 5, AF-S NIKKOR 300mm f/4E PF ED VR, 2

AF-S Nikkor 300mm f/4D IF-ED, 3, 5, AF-S NIKKOR 400mm f/2.8E FL ED VR, AF-S NIKKOR 400mm f/2.8G ED VR

AF-S Nikkor 400mm f/2.8D IF-ED, 2, 5, AF-I Nikkor 400mm f/2.8D IF-ED, 5

AF-S NIKKOR 500mm f/5.6E PF ED VR, 4, AF-S NIKKOR 500mm f/4E FL ED VR, 3, AF-S NIKKOR 500mm f/4G ED VR, 3

AF-S Nikkor 500mm f/4D IF-ED II, 3, 5, AF-S Nikkor 500mm f/4D IF-ED, 3, 5, AF-I Nikkor 500mm f/4D IF-ED, 3, 5

AF-S NIKKOR 600mm f/4E FL ED VR, 3, AF-S NIKKOR 600mm f/4G ED VR, 3, AF-S Nikkor 600mm f/4D IF-ED II, 3, 5

AF-S Nikkor 600mm f/4D IF-ED, 3, 5, AF-I Nikkor 600mm f/4D IF-ED, 3, 5, AF-S NIKKOR 800mm f/5.6E FL ED VR, 4

AF-S NIKKOR 70-200mm f/2.8E FL ED VR, AF-S NIKKOR 70-200mm f/2.8G ED VR II, AF-S VR Zoom-Nikkor 70-200mm f/2.8G IF-ED

AF-S NIKKOR 70-200mm f/4G ED VR, 3, AF-S Zoom-Nikkor 80-200mm f/2.8D IF-ED, 5, AF-S NIKKOR 80-400mm f/4.5-5.6G ED VR, 4

AF-S NIKKOR 180-400mm f/4E TC1.4 FL ED VR, 6, AF-S NIKKOR 200-400mm f/4G ED VR II, 3, AF-S VR Zoom-Nikkor 200-400mm f/4G IF-ED, 3

AF-S NIKKOR 200-500mm f/5.6E ED VR, 4

Autofocus cannot be used.

With the combination of TC-20E III/TC-17E II, autofocus is only possible when mounted on a camera compatible with f/8 autofocus and set to AF-S mode.

With the combination of TC-20E III/TC-17E II, autofocus is only possible when mounted on a camera compatible with f/8 autofocus.

With the combination of TC-14E III, autofocus is only possible when mounted on a camera compatible with f/8 autofocus. Autofocus is not available when combined with TC-20E III/TC-17E II.

Cannot be used with TC-14E III.

When using the built-in teleconverter with lenses such as TC-14E/TC-14E II/TC-14E III, autofocus is only possible when mounted on a camera compatible with F8 autofocus. When using with TC-17E II/TC-20E/TC-20E II/TC-20E III with the built-in teleconverter, autofocus is not available. If not using the built-in teleconverter, autofocus is only possible when mounted on a camera compatible with F8 autofocus.

Cannot be used with lenses other than those listed above. The rear part of the lens may contact the teleconverter and cause damage, so do not attach it.
Lenses with VR image stabilization can use VR function. Compatible cameras: Nikon digital SLR cameras in FX and DX formats, F6, F5, F100, F80 series, Nikon U2, Nikon U.
Depending on the combination of teleconverter, digital or film SLR camera, and lens, the focal length display in shooting data may not be accurate. Please refer to the user manual of each teleconverter for details.
The AF-S TELECONVERTER TC800-1.25E ED is only available with the included accessory for AF-S NIKKOR 800mm f/5.6E FL ED VR and is not sold separately.
When attaching the teleconverter to the lens, if the combined open F-value is f/5.6 or f/8, autofocus is only possible when mounted on a camera compatible with f/8 autofocus. However, autofocus and focus aid are limited to the central focus point or a single central point. Autofocus may not work with low-contrast or low-brightness subjects.
