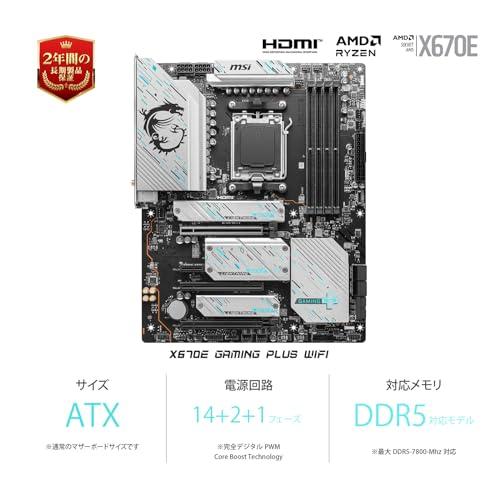

MSI X670E GAMING PLUS WIFI ATX Motherboard with Large White-Silver Heatsink, Compatible with AMD Ryzen 7000/9000 Series, Packed with Gaming Features MB6466

MSI X670E GAMING PLUS WIFI ATX Motherboard with Large White-Silver Heatsink, Compatible with AMD Ryzen 7000/9000 Series, Packed with Gaming Features MB6466

  • $633.58 USD
Seller: sakurasupplyco
Add to wishlist
Protection
ZenPlus Authenticity Guarantee, 30-days returns & 30 days money back guarantee. Details here.
Shipping
Your order will be shipped when ZenPlus receives all items from shops. Once shipped from Japan, estimated delivery time is 2-4 weeks for standard shipping and 3-4 days for express (DHL, UPS, FEDEX) shipping. ZenPlus covers shipping insurance to protect your items.
Payment
We ensure that your personal and payment information is kept secure by following PCI-DSS standards and using 256-bit encryption for all transactions.

B0CTTKTS9S


Code: 4526541049378

Brand: MSI

Specifications: X670E GAMING PLUS WIFI

Product Color: White Silver

About this product
MB6466 Japan Authorized Dealer Product, 2-Year Warranty
Supports high-speed DDR5 memory, both main slots and storage support high-speed PCIe 5.0 devices, enabling the construction of an ultra-fast gaming PC.
14+2+1 phase 80A SPS power circuit, high-quality 7W/mK MOSFET thermal pads, choke thermal pads, server-grade 6-layer PCB, large heatsink maximizing heat dissipation surface area, all enhance CPU power delivery.
Equipped with numerous internal and external USB ports, including a USB 3.2 Gen2x2 Type-C port on the rear and a Gen2 Type-C port on the front, supporting high-speed devices like 4K capture units, as well as multiple standard USB 3.2 Gen1 and USB 2.0 ports.
Features a wired 2.5GbE LAN port, enabling high-speed network connection when connected to gaming routers or WiFi routers.
› See more Brand MSI
CPU Socket: Socket AM5
Supported Device: PC
RAM Memory Technology: DDR5
Supported Processors: AMD Ryzen 7000/9000 Series
MB6466 Japan Authorized Dealer Product, 2-Year Warranty
Supports high-speed DDR5 memory, both main slots and storage support high-speed PCIe 5.0 devices, enabling the construction of an ultra-fast gaming PC.
14+2+1 phase 80A SPS power circuit, high-quality 7W/mK MOSFET thermal pads, choke thermal pads, server-grade 6-layer PCB, large heatsink maximizing heat dissipation surface area, all enhance CPU power delivery.
Equipped with numerous internal and external USB ports, including a USB 3.2 Gen2x2 Type-C port on the rear and a Gen2 Type-C port on the front, supporting high-speed devices like 4K capture units, as well as multiple standard USB 3.2 Gen1 and USB 2.0 ports.
Features a wired 2.5GbE LAN port, enabling high-speed network connection when connected to gaming routers or WiFi routers.
› See more

Shipping Size: Height 34.2mm, Width 27.1mm, Depth 7.4mm

Shipping Weight: 1778g

Compatible with AMD Ryzen 7000/8000 Series, Socket AM5 X670E ATX motherboard. Features a large heatsink, PCIe 5.0 main slot, M.2 ports, and supports high-speed system environments, gaming-grade. Equipped with a total of 21 ports including a 20Gbps USB 3.2 Gen2x2 Type-C port.
Form Factor: ATX (243.9 x 304.8mm)
Chipset: AMD X670
CPU Socket Supported CPU: Socket AM5 Ryzen 8000/7000 Series Processors
Power Phases: 14+2+1 80A SPS Digital Power Phases
Memory Slots: 4x DDR5 UDIMM, maximum 192GB
Supported Memory: DDR5 4800~7800+, AMD EXPO compatible
Expansion Slots: 3x PCIe x16 (1x PCIe 5.0 x16, 1x PCIe 4.0 x4, 1x PCIe 3.0 x1), 1x PCIe 3.0 x1
Storage: 4x M.2 (1x PCIe 5.0 x4, 3x PCIe 4.0 x4), 4x SATA3
Display Outputs: 1x DisplayPort (1.4), 1x HDMI (2.1)

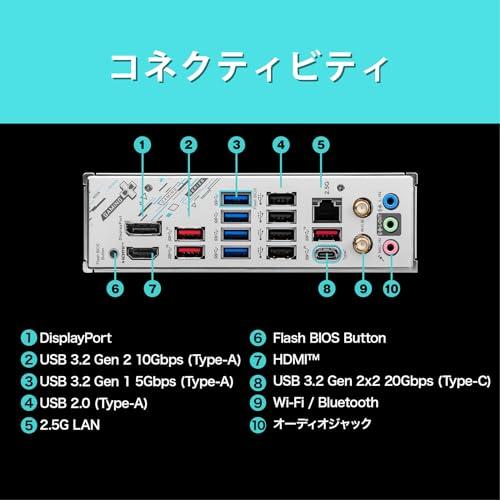

USB (Rear): 1x USB 3.2 Gen2x2 Type-C, 3x USB 3.2 Gen2 Type-A, 4x USB 3.2 Gen1 Type-A, 4x USB 2.0 Type-A
USB (Front): 1x USB 3.2 Gen2 Type-C, 4x USB 3.2 Gen1 Type-A, 4x USB 2.0
Sound: 7.1ch HD Audio Codec (Realtek ALC897)
Network: Wired LAN: 1x 2.5GbE, Wireless LAN: WiFi 6E, Bluetooth 5.3
Other Features: EZ Debug LED, high-quality server-grade 6-layer PCB
Supported OS: Windows 10/11 64bit

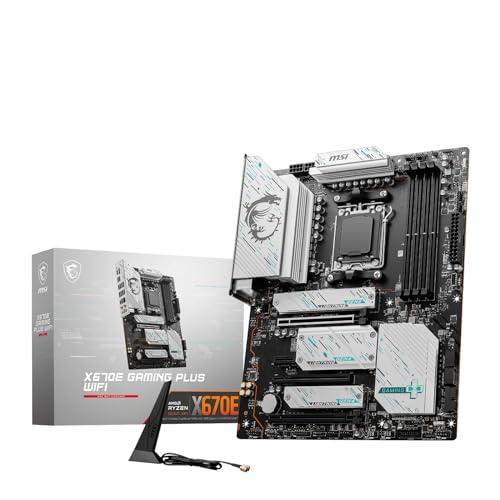

Accessories: Quick installation guide, accessory kit, WiFi antenna with manufacturer instructions



MSI: For Gamers & Creators

MSI is a trusted manufacturer in the gaming and e-Sports industries. We constantly support renowned gamers and incorporate their feedback into our products. We continue to design products aimed at greater gamer satisfaction.

X670E GAMING PLUS WIFI
Win the Competition

X670E GAMING PLUS WIFI is a gaming ATX motherboard equipped with the AMD X670 chipset.

AMD Ryzen 7000 Processor - Zen 4, AM5 compatible
14-phase Duet Rail Power System 80A SPS power circuit
x1 PCIe 5.0 x16 slot, x2 PCIe 4.0 x16 slots, x1 PCIe 3.0 x1 slot
4 x DDR5 DIMMs with Memory Boost: dual channel (max 192GB / OC 7800MHz)
Lightning Gen5 M.2 with M.2 Shield Frozr
8-Channel (7.1) HD Audio with Audio Boost
USB 3.2 Gen 2x2 Type-C (20Gbps)
2.5G LAN, AMD Wi-Fi 6E & Bluetooth 5.3
X670 chipset, 14 Duet Rail Power System, smart cooling, 1 x PCIe 5.0 x16 slot

Supports AMD Ryzen 7000 Series Processors

The X670E GAMING PLUS WIFI supports AMD Ryzen 7000 Series Processors.

Form Factor: ATX
CPU Socket: Socket AM5
Chipset: AMD X670E

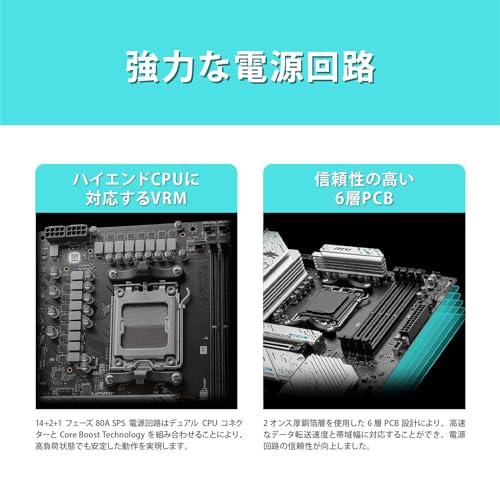

14+2+1-phase Duet Rail Power System 80A SPS power circuit

With dual 8-pin power connectors and Core Boost Technology, the X670E GAMING PLUS WIFI ensures stable operation under high load.

Digital PWM IC
14-phase Duet Rail Power System (SPS / 80A)
2-phase SOC Power
1-phase MISC Power

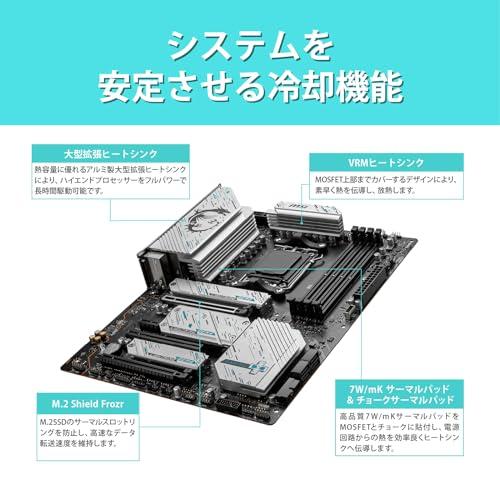

Motherboard Cooling Features

VRM Cooling: Uses extended heatsinks and 7W/mK thermal pads for efficient heat conduction and dissipation. PCB Cooling: Uses a server-grade 6-layer PCB with 2-ounce copper layers for efficient cooling and improved circuit reliability.

SSD Cooling: M.2 Shield Frozr prevents thermal throttling of SSDs. System Cooling: Pin header placement optimized for wiring, allowing cable management without obstructing airflow.

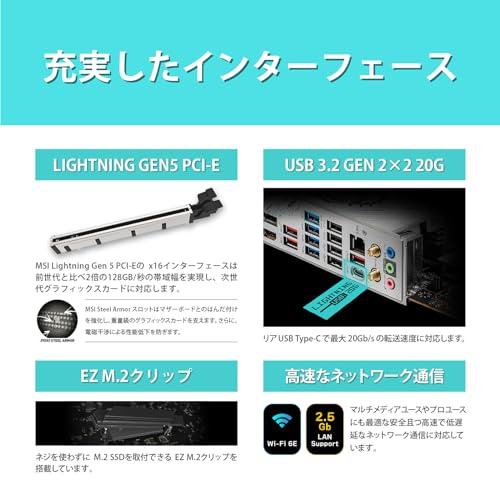

Steel Armor PCIe 5.0 x16 Slot

MSI PCI Express Steel Armor slots with increased solder points support heavy graphics cards. They also protect contacts from electromagnetic interference and prevent performance degradation.

1 x PCIe 5.0 x16 slot* (Steel Armor slot)
1 x PCIe 3.0 x16 slot
1 x PCIe 4.0 x16 slot
1 x PCIe 3.0 x1 slot
*Supports x16/x1/x4 configurations

DDR5 Memory Performance, Lightning Gen5 M.2, Shield Frozr, Wi-Fi 6E

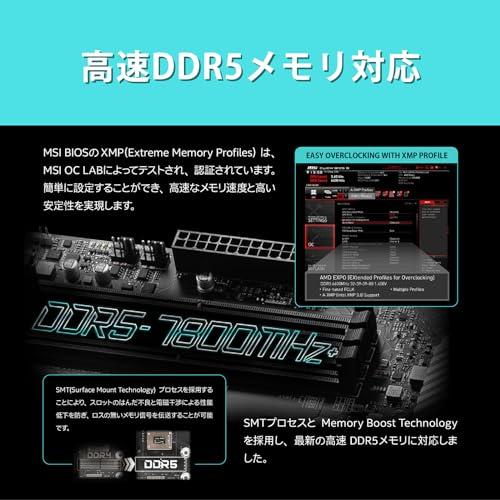

4 x DDR5 dual-channel (OC 7800+ MHz)*

Memory Boost: Uses proprietary circuitry to enable lossless memory signal transmission, supporting high frequencies.

Memory OC Profile: Validated under various conditions by MSI OC LAB, easily enabled in BIOS menu, allows overclocking AMD EXPO compatible memory.

1DPC 1R Max. Overclocking Frequency 7800+MHz, AMD EXPO compatible

Gen5 M.2 Slot

The X670E GAMING PLUS WIFI supports M.2 SSDs.

1 x Gen5 x4 128Gb/s slot*
3 x Gen4 x4 64Gb/s slots*
*with M.2 Shield Frozr

M.2 Shield Frozr

M.2 SSDs boast high data transfer speeds but generate significant heat, which can cause thermal throttling.

M.2 Shield Frozr cools SSDs effectively, preventing thermal throttling and maintaining high data transfer speeds.

Wi-Fi 6E & Bluetooth 5.3

2.5G LAN: Equipped with Realtek 2.5G LAN for low latency and high-speed network communication. Wi-Fi 6E: 6GHz band & Bluetooth 5.3

USB 3.2 Gen 2x2 Type-C: Supports transfer speeds of 20Gbps, enabling use of high-speed USB devices.

HD Audio: 8-channel 7.1 HD Audio with Audio Boost
