Code: 4526541044984

Brand: MSI

Specifications: PRO B760M-A WIFI DDR4

About this product
MB5996 Japan authorized dealer product, 2-year warranty
Equipped with 12+1+1 power phases and large VRM heatsinks, ensuring stable system operation.

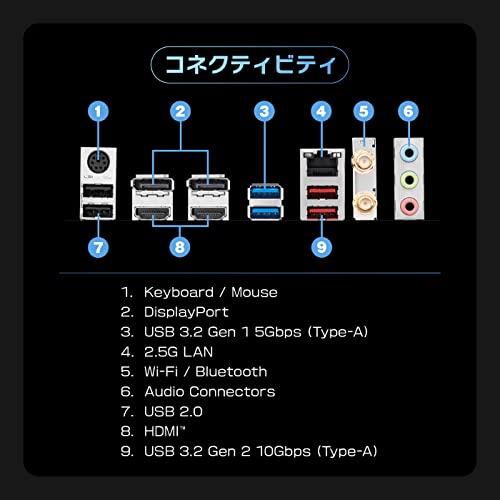

Includes onboard HDMI x2 and DisplayPort x2, supporting up to 4 display outputs
Features 2.5G LAN and Wi-Fi 6E, enabling high-speed network environment setup.

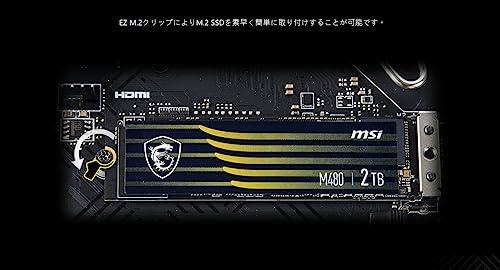

Uses EZ M.2 Clip that allows M.2 SSD installation without small screws or drivers.
› See more Brand MSI
CPU socket: LGA 1700
Supported device: PC
Memory technology: DDR4
Supported processors: Intel 10th and 11th generation, Intel Core about this product
MB5996 Japan authorized dealer product, 2-year warranty
Equipped with 12+1+1 power phases and large VRM heatsinks, ensuring stable system operation.
Includes onboard HDMI x2 and DisplayPort x2, supporting up to 4 display outputs
Features 2.5G LAN and Wi-Fi 6E, enabling high-speed network environment setup.
Uses EZ M.2 Clip that allows M.2 SSD installation without small screws or drivers.
› See more

Shipping size: Height 30.1, Width 27.1, Depth 5.5

Shipping weight: 1280

- Manufacturer's description

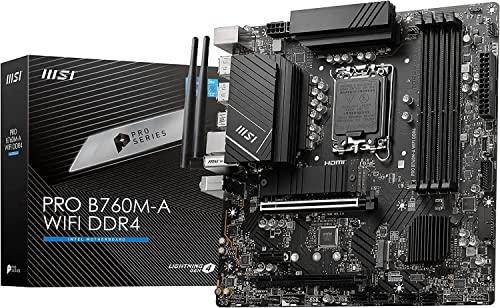

PRO B760M-A WIFI DDR4

MSI: For Gamers & Creators

MSI is one of the trusted manufacturers in the gaming and e-Sports industry. We constantly support renowned gamers and incorporate their feedback into our products. We continue to design products that aim to satisfy gamers more.

PRO B760M-A WIFI DDR4
Business Elegance

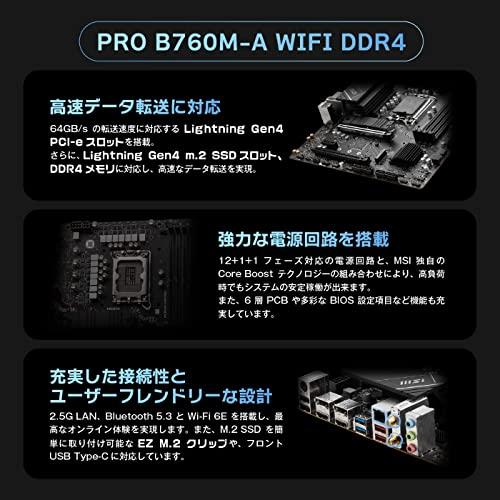

PRO B760M-A WIFI DDR4 is a micro-ATX motherboard for general users equipped with the Intel B760 chipset.

It supports large capacity RAM, offers convenient Wi-Fi connectivity, and provides a comfortable PC environment.

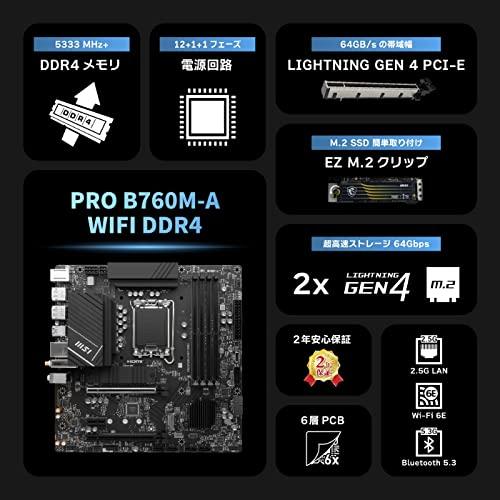

Compatible with 12th/13th generation Intel Core processors (LGA 1700)
Equipped with power circuitry supporting P-PAK 12-phase Duet Rail Power System
4 x DDR4 DIMM slots (Memory Boost technology / dual channel support) (up to 128GB / OC 5333MHz)
Includes 2 PCIe 4.0 x16 slots
Features Lightning Gen4 M.2 slot & Shield Frozr
Front port supports USB Type-C
Uses Audio Boost compliant 7.1 HD Audio
Equipped with Realtek 2.5G LAN, Intel Wi-Fi 6E, Bluetooth 5.3
B760 chipset, smart cooling mechanism, DDR4 Memory Boost

Supports 12th/13th generation Intel Core processors

PRO B760M-A WIFI DDR4 supports 12th and 13th generation Intel Core, Pentium Gold, and Celeron processors.

Form factor: Micro-ATX
Socket: LGA 1700
Chipset: Intel B760

P-PAK 12+1 phase Duet Rail Power System

PRO B760M-A WIFI DDR4 features 8-pin + 4-pin CPU connectors and adopts proprietary Core Boost technology. It maintains strong power delivery to the CPU and supports high-load settings.

Digital PWM IC
12-phase Duet Rail CPU Power (P-PAK)
1-phase GT Power
1-phase AUX Power

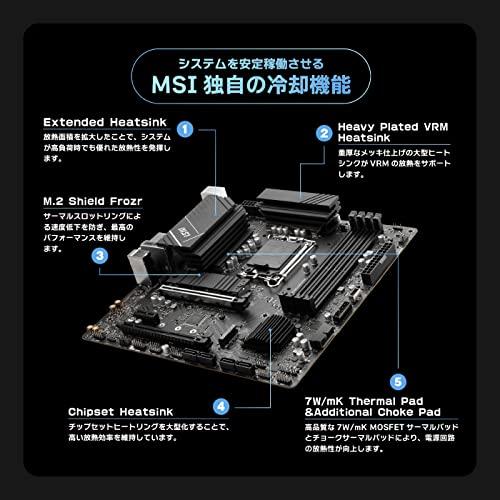

Integrated cooling mechanisms

VRM Cooling: Includes extended heatsinks, 7W/mK MOSFET thermal pads, and choke thermal pads to enhance heat dissipation.

PCB Cooling: Implements a 6-layer board with 2-ounce copper to improve heat dissipation and stability.

SSD Cooling: M.2 Shield Frozr cools SSDs and suppresses thermal throttling, maintaining high performance.

Frozr AI Cooling: Detects CPU and GPU temperatures and automatically adjusts system fan settings.

4 x DDR4 dual-channel (OC support up to 5333 MHz)*

Memory Boost: Separate DDR circuits provide low-noise data signals, improving performance during gaming and overclocking.

MSI BIOS XMP profiles enable easy memory overclocking configuration.

*1DPC 1R overclocking frequency 5333+ MHz (Intel XMP supported)

Includes 2 PCIe 4.0 x16 slots with M.2 Shield Frozr, large storage support, and Wi-Fi 6E

Enhanced PCIe 4.0 x16 slots

MSI PCI Express Steel Armor slots are firmly fixed to the motherboard with solder points to support heavy graphics cards and protect contact points from electromagnetic interference.

2 x PCIe 4.0/3.0 x16 slots* (first slot with Steel Armor)
1 x PCIe 3.0 x1 slot

* Supports x16/x4

Features M.2 Shield Frozr

Even with high-speed SSDs, speed drops occur when thermal throttling is detected.

MSI's M.2 Shield Frozr prevents speed reduction due to thermal throttling, maintaining SSD high performance.

Equipped with Gen4 M.2 connector

PRO B760M-A WIFI DDR4 features M.2 Gen4 slots.

2 x Gen4 x4 64Gbps slots*

*One with M.2 Shield Frozr

Features Wi-Fi 6E & Bluetooth 5.3

2.5G LAN: Equipped with Realtek 2.5Gbps LAN controller for a comfortable network environment.

Wi-Fi 6E: Equipped with high-speed Intel Wi-Fi 6E module (ultra-low latency, wide bandwidth) and Bluetooth 5.3 technology.

USB 3.2 Gen 2 Type-A: Supports data transfer at 10Gbps.

HD Audio: Uses Audio Boost compliant 7.1-channel high-definition audio.


PRO B760M-G DDR4

PRO B760M-A WIFI DDR4

PRO B760-P WIFI DDR4


Add to cart

Add to cart

Purchase options

Customer reviews
Rating: 3.9 out of 5 stars
38 reviews

Rating: 4.2 out of 5 stars
68 reviews

Rating: 4.3 out of 5 stars
191 reviews

Price
13,800
13,800
13,993
13,993—
MSI Series PROPROPRO
Form factor: Micro-ATX / Micro-ATX / ATX
DIMM slots: 2 x DDR4 (4800+MHz/OC) / 4 x DDR4 (5333+MHz/OC) / 4 x DDR4 (5333+MHz/OC)
PCI-e x16 slots: 1 x 4.0 / 2 x 4.0 / 2 x 4.0
M.2 slots: 2 x Gen4 x4 / 2 x Gen4 x4 / 2 x Gen4 x4
M.2 Shield Frozr: Single-sided / Single-sided / Single-sided
Audio: Audio Boost compliant 8-Channel (7.1) HD Audio / Audio Boost compliant 8-Channel (7.1) HD Audio / Audio Boost compliant 8-Channel (7.1) HD Audio
LAN: Realtek 2.5G LAN / Realtek 2.5G LAN / Realtek 2.5G LAN
Wi-Fi & Bluetooth: Intel Wi-Fi 6E, Bluetooth 5.3 / Intel Wi-Fi 6E, Bluetooth 5.3
Display port (requires iGPU): 1 x HDMI (4K/60Hz), 1 x DP (4K/60Hz), 1 x VGA / 2 x HDMI (4K/60Hz), 2 x DP (4K/60Hz) / 1 x HDMI (4K/60Hz), 1 x DP (4K/60Hz)
