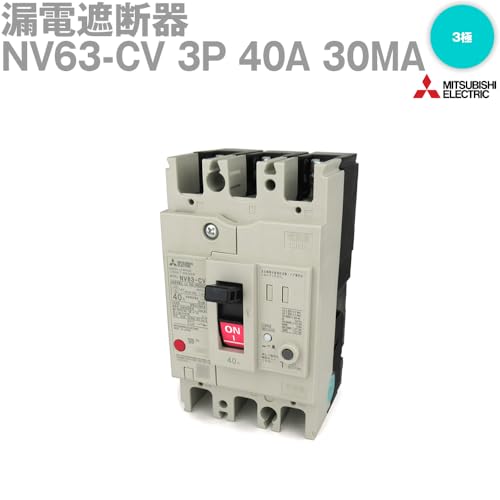

Mitsubishi Electric NV63-CV 3P 40A 30MA (Earth Leakage Circuit Breaker) (3-pole) (AC 100-440V) NN

Mitsubishi Electric NV63-CV 3P 40A 30MA (Earth Leakage Circuit Breaker) (3-pole) (AC 100-440V) NN

  • $124.27 USD
Add to wishlist
Protection
ZenPlus Authenticity Guarantee, 30-days returns & 30 days money back guarantee. Details here.
Shipping
Your order will be shipped when ZenPlus receives all items from shops. Once shipped from Japan, estimated delivery time is 2-4 weeks for standard shipping and 3-4 days for express (DHL, UPS, FEDEX) shipping. ZenPlus covers shipping insurance to protect your items.
Payment
We ensure that your personal and payment information is kept secure by following PCI-DSS standards and using 256-bit encryption for all transactions.

特殊:B007BL187A


ブランド:三菱電機(MITSUBISHI ELECTRIC)

規格：NV 63 - CV 3

この商品について
漏電遮断器(一般用途)
形名：NV63-CV
品番：NV63-CV 3P 40A 100-440V 30MA
定格電流：40A
極数：3P
定格使用電圧(AC)：100-440V
接続方式：表面形 圧着端子用 Front type(AMP-N)
特長 高調波 サージ対応 アクティブフィルタやDPDC回路の採用で不要な漏電トリップが発生しにくい漏電検出特性を持っています。ブランド三菱電機(MITSUBISHI ELECTRIC)
電流定格40 アンペア
回路遮断器タイプGFCI
取り付けタイプ接続方式：表面形 圧着端子用 Front type(AMP-N)
ポール数3この商品について
漏電遮断器(一般用途)
形名：NV63-CV
品番：NV63-CV 3P 40A 100-440V 30MA
定格電流：40A
極数：3P
定格使用電圧(AC)：100-440V
接続方式：表面形 圧着端子用 Front type(AMP-N)
特長 高調波 サージ対応 アクティブフィルタやDPDC回路の採用で不要な漏電トリップが発生しにくい漏電検出特性を持っています。

発送サイズ: 高さ13.5、幅9.8、奥行き8.2

発送重量:710

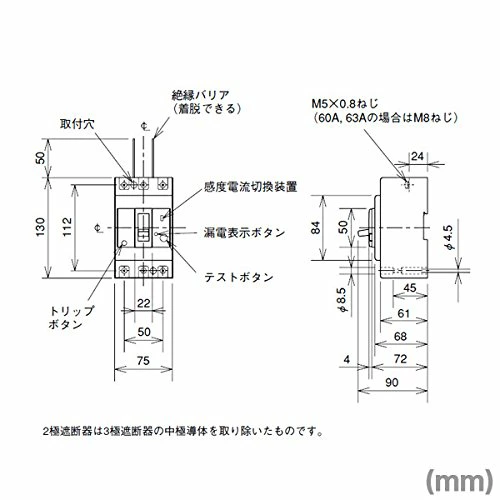

定格使用電圧(AC V)100-440 フレーム(AF)50 寸法(幅W 高さH 奥行D)(mm)75 130 90 極数3P 定格電圧 AC V100-440 定格感度電流(mA)30 適合アイソレーション 寸法(mm)75 130 90 質量(kg)0.75 種類漏電遮断器(一般用途) 定格電圧(V)AC100 440 定格電流(A)40接続方式：表面形 圧着端子用 Front type(AMP-N) 相線式1Φ2W 3Φ3W 1Φ3W 3極の漏電遮断機を1Φ2Wに使用される場合は中央極を使用せず左右極に接続してください。1Φ3Wに使用される場合は中央極に中央線を接続してください。 定格遮断容量(kA)AC440V：2.5/2.5、AC415V：2.5/2.5、AC400V：5/5、AC230V：7.5/7.5、AC200V：7.5/7.5、AC100V：7.5/7.5 極数 素子数3 アズワン品番64-3205-28 極数(P)3 電流の種類AC
