Code:4902901981739

Brand:Mitsubishi Electric (MITSUBISHI ELECTRIC)

Model:VD-10ZLC14-S

Size information: External dimensions (height width depth) (mm): 199 271 250

Product weight: 1400

About this product
Quantity (units): 1 br V 10ZLC12 S, VD 10ZLC13 S successor model br Ceiling-mounted duct ventilation fan br For sanitary use br Low noise type br Equipped with 24-hour ventilation function br Usage: bathroom, toilet, washroom, (living room, office, store) br Wind pressure type shutter br Connection pipe (mm): φ100 br Embedded dimensions (mm): 180 square br Duct diameter (mm): 100.0
› See more Brand Mitsubishi Electric (MITSUBISHI ELECTRIC)
Power supply: Power cord type
Product dimensions: 19.9 cm depth x 25 cm width x 27.1 cm height
Room type: Bathroom
Product weight: 1.4 kilograms
Included components: Instruction manual
Model name: VD-10ZLC14
Controller type
Pull chain control

Number of speeds
About this product
Quantity (units): 1 br V 10ZLC12 S, VD 10ZLC13 S successor model br Ceiling-mounted duct ventilation fan br For sanitary use br Low noise type br Equipped with 24-hour ventilation function br Usage: bathroom, toilet, washroom, (living room, office, store) br Wind pressure type shutter br Connection pipe (mm): φ100 br Embedded dimensions (mm): 180 square br Duct diameter (mm): 100.0
› See more

Shipping size: height 32.5, width 26.8, depth 22.4

Shipping weight: 1700

Product introduction

Quantity (units): 1
V-10ZLC12-S, VD-10ZLC13-S successor model

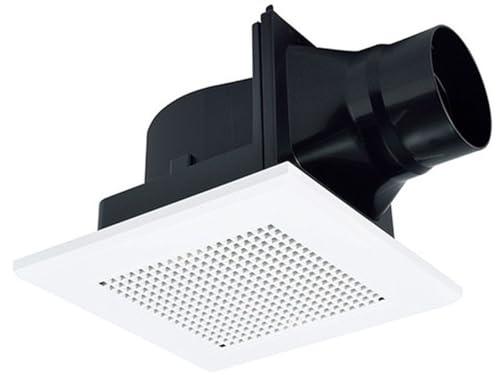

Ceiling-mounted duct ventilation fan
For sanitary use
Low noise type
Equipped with 24-hour ventilation function
Usage: bathroom, toilet, washroom, (living room, office, store)
Wind pressure type shutter
Connection pipe (mm): φ100
Embedded dimensions (mm): 180 square
Duct diameter (mm): 100.0
Blade diameter (mm): 100.0

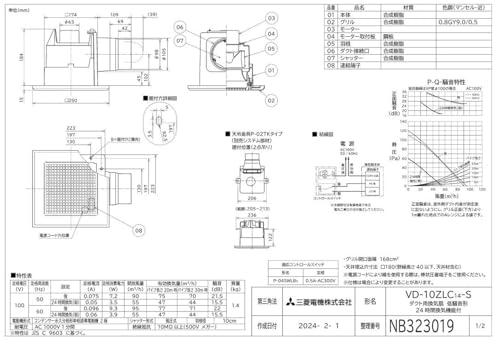

External dimensions (height width depth) (mm): 199 271 250
External static pressure (50Hz/60Hz) (Pa): 0/0
Power consumption (50Hz/60Hz) (W): High 7.20, Low 3.50 / High 9.30, Low 3.90
Product weight (kg): 1.4
Noise (50Hz/60Hz) (dB): High 21.50, Low 15.50 / High 22, Low 15.50
Voltage (V): 100
Power supply (φ): Single-phase
Air volume (50Hz/60Hz) (m3/h): High 90, Low 55 / High 95, Low 55
Dual barrier material adopted for the grille part.
Hybrid nano-coating Plus adopted for the blade part.
High-efficiency blade "Digi Sirocco Fan β" adopted.
Adopts high-efficiency motor with power-saving design.
Equipped with high airtightness wind pressure type shutter.
Low noise design
Duct connection port with stepped structure for easy taping (when connecting flexible duct).
Micro-adjustment of duct direction possible when connecting PVC pipe (all directions 7).
Quick connect terminal connection
Main body slide detachable
It is recommended to operate with 24-hour ventilation.
Selection of body material type: Please follow the guidance of the local fire department during installation.
