Special:B0CYT33RWL
Code:4902901981951
Brand:Mitsubishi Electric (MITSUBISHI ELECTRIC)
Model:VD-13ZCD14
Product weight: 1900
About this product
Quantity (units): 1 br VD 13ZCD13, successor model VD 13ZCD13 br For sanitary use br Low noise type br Electric shutter equipped br For apartment cold regions br Usage: bathroom, toilet, washroom, (living room, office, store) br Connection pipe (mm): φ100 br Embedded dimensions (mm): 205 square br Duct diameter (mm): 100.0 br Blade diameter (mm): 115.0
› See more brands Mitsubishi Electric (MITSUBISHI ELECTRIC)

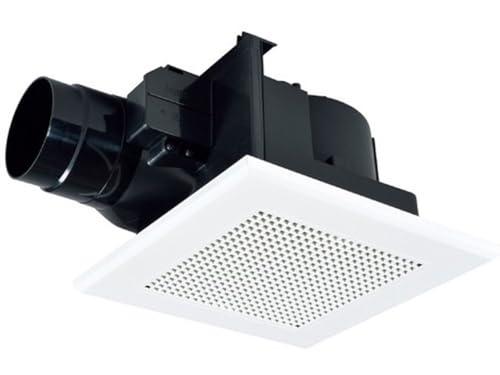

Electric fan design ventilation fan
Power supply: power cord type
Style: industrial
Product dimensions: 21 cm depth x 28.6 cm width x 38.1 cm height
Room type: bathroom
Product weight: 1.9 kilograms
Included components: instruction manual
Controller type
Pull chain control
Number of speeds
About this product
Quantity (units): 1 br VD 13ZCD13, successor model VD 13ZCD13 br For sanitary use br Low noise type br Electric shutter equipped br For apartment cold regions br Usage: bathroom, toilet, washroom, (living room, office, store) br Connection pipe (mm): φ100 br Embedded dimensions (mm): 205 square br Duct diameter (mm): 100.0 br Blade diameter (mm): 115.0
› See more
Shipping size: height 38.1, width 30.5, depth 23.9
Shipping weight: 2370
Product introduction
Quantity (units): 1
VD-13ZCD13, successor model VD-13ZCD13
For sanitary use
Low noise type
With electric shutter
For apartment cold regions
Usage: bathroom, toilet, washroom, (living room, office, store)
Connection pipe (mm): φ100
Embedded dimensions (mm): 205 square
Duct diameter (mm): 100.0
Blade diameter (mm): 115.0

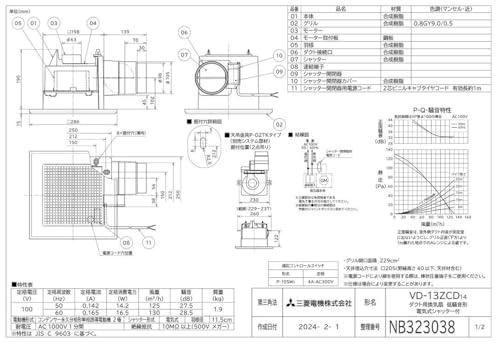

External dimensions (height width depth) (mm): 210 381 286
External static pressure (50Hz/60Hz) (Pa): 0/0
Power consumption (50Hz/60Hz) (W): 14.20/16.50
Product weight (kg): 1.9
Noise (50Hz/60Hz) (dB): 27.50/28.50
Voltage (V): 100
Power supply (φ): single-phase
Air volume (50Hz/60Hz) (m3/h): 125/130
Body: plastic
Fan: plastic (sirocco fan)
Grill: plastic (cross lattice)
Dual barrier material adopted in the grill part
Hybrid nano-coating applied to the blade part
Adopts high-efficiency blade "Digital Sirocco Fan β"
Adopts high-efficiency motor with energy-saving design
High airtightness electric shutter duct connection port (with power cord)
Low noise design
Adopts stepped duct connection port with easy taping (when connecting flexible duct)
Allows fine adjustment of duct direction when connecting PVC pipe (all directions 7)
Quick connect terminal connection
Main body slide detachable
Selection of each body material type Please follow the guidance of the local fire department during installation.
When used in humid places such as bathrooms, please perform grounding work.
In humid places such as bathrooms, water droplets may drip, but this is not an abnormality of the ventilation fan. Please install in a place where dripping water does not cause discomfort. For shutter maintenance, install so that the main body flange is on the indoor side.
Caution Disclaimer Please read
Customer convenience cancellations and returns Since this is a manufacturer order item, we cannot accept returns or exchanges due to customer reasons after purchase. Cooling-off does not apply. We cannot compensate for delays caused by product shipping delays. The photos are for reference, and we will arrange according to the model number. Thank you for your understanding.
