Ships within 1-5 business days:

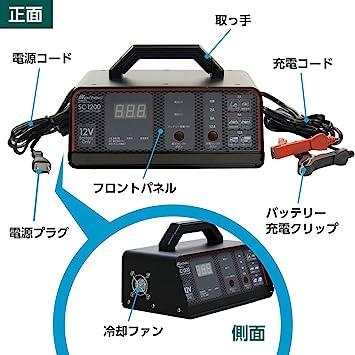

Main body size: approximately W225 × H137 × D160 (mm)
Weight: approximately 1.6 kg
Rated input: AC100V 3A 50/60Hz 300VA
Rated output: DC12V / 12A
Compatible battery voltage: DC12V (open type / sealed type) lead batteries

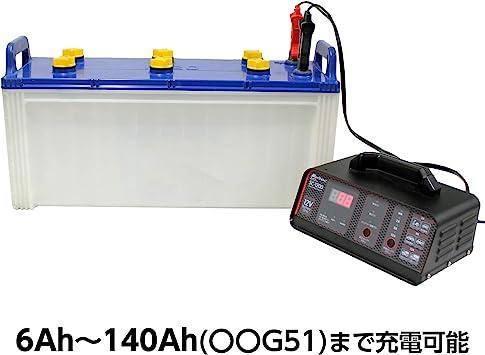

Compatible battery capacity: 6Ah to 140Ah
Cord length: approximately 1.8m on input side / approximately 1.8m on output side
Charging method: Constant current and constant voltage / automatic charging method
Charging indicator: LED display (charging, complete, battery diagnosis, connection check) and digital display
An optimal charger for all 12V batteries.
Product Introduction
◆ Meltech is a domestic car accessory manufacturer with over 60 years of history, delivering safety, security, comfort, and convenience to customers.

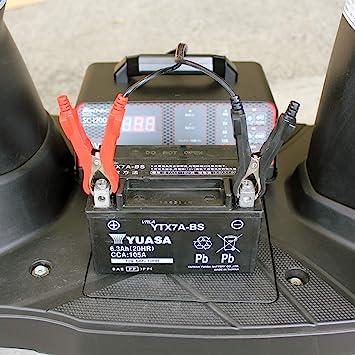

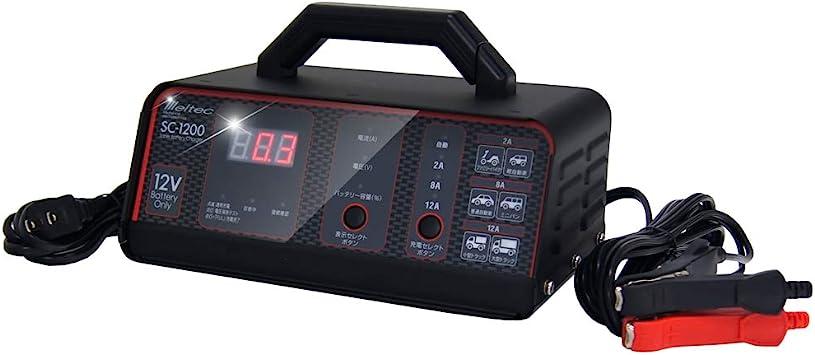

Wide range of use from family bikes to large trucks (12V only), featuring the "Super Battery Charger SC-1200".

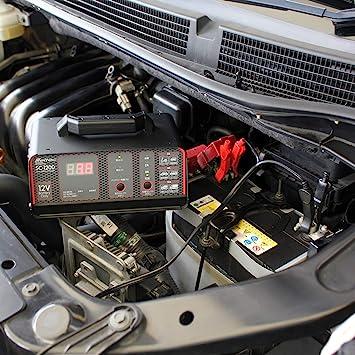

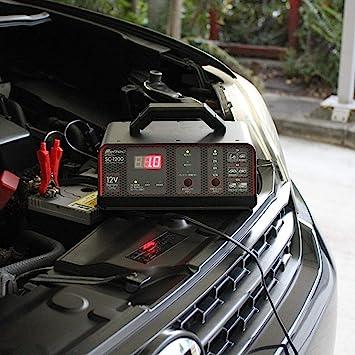

Simply connect to the battery and plug into the outlet! Easy to use!
*For 24V vehicles (two 12V batteries connected in series), disconnect the connection cable and charge the 12V battery alone.
【Features】
● Suitable for everything from family bikes to large trucks!
This product converts household power (AC100V) to DC12V and automatically charges the battery.
Compatible battery size: (Family bikes to ○○○G51)
● Automatic charging function
Just connect to the battery and plug into the outlet. It diagnoses the battery and charges automatically with the optimal current.

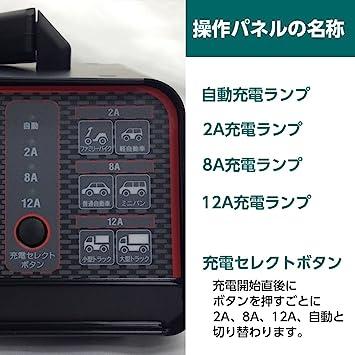

● Charge select function
Can be selected according to battery capacity, making charging easy and understandable.
(*Cannot revive over-discharged batteries or defective batteries.)
● Maintenance charging function
After charging is complete (charging lamp lights up and "FUL" is displayed on the digital monitor), it performs maintenance charging to compensate for the battery's natural discharge.

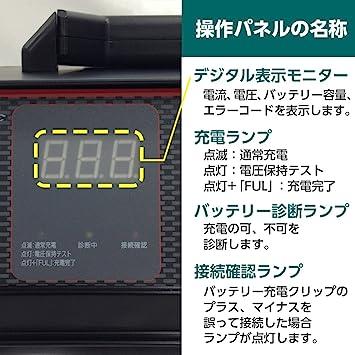

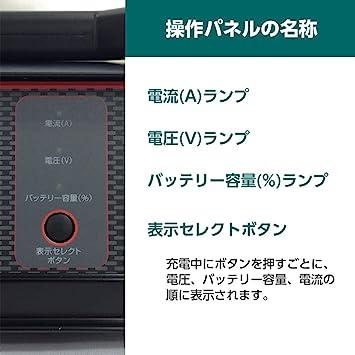

● Easy-to-read digital display monitor & LED indicators
Displays current (A), voltage (V), and battery capacity (%) on a digital monitor (switchable with the display select button).
Also displays error codes for battery faults or charger abnormalities.
● Voltage retention test function
Checks the battery's charge status during float charging. If it diagnoses insufficient charge, it restarts charging.
● Microcontroller-controlled constant current and constant voltage / auto charging method
Controls the battery's charging voltage and current via microcontroller to prevent overcharging as the voltage rises during charging.
● Connection check function
If connected incorrectly (reversed), the connection check lamp lights up.
● Battery diagnosis function
Determines whether a severely discharged battery can be charged or not based on voltage.
Usage Precautions
- Please be sure to read the instruction manual before using this product to ensure safe operation. Keep it handy for reference.
- Unauthorized use beyond the manual, modification, or disassembly of this product may cause malfunction, damage, electric leakage, electric shock, heat generation, overheating, fire, liquid leakage, explosion, injury, or burns. Absolutely do not do these.
- This charger is dedicated to open type, sealed type, and dry cell 12V lead batteries only. Do not use for other battery types or purposes.
- Hybrid vehicles cannot be charged on the main battery. Do not use for anything other than auxiliary batteries.
- Use within ambient temperatures of 0°C to 40°C.
- Do not use in extremely humid places, places exposed to rain or snow, or places with a lot of dust or powder.
- This product requires household power supply (AC100V). Do not use power sources or outlets other than the specified ones.
- Do not subject electrical appliances to shocks or drops.
- Batteries that have been deeply discharged (around 10V) may not recover fully even after charging.
- Use in places without fire or flames, and with good ventilation.
- Connect the charging clips correctly to the battery terminals: red clip to the positive (+) terminal, black clip to the negative (−) terminal. Ensure secure connection so they do not easily come off.
- Charging batteries connected to power sources will reach about 80% charge; a transformer-type charger is recommended.
- Cannot charge batteries for commercial or medical equipment or similar devices.
| Product # | B00KAZP8IY |
|---|---|
| Weight | 1640 g |
| Product package size | 24 x 19 x 13 cm |
