[Features]
● The male thread nominal diameter and the anchor body diameter are equal, allowing installation from above the fixture.
● Expansion of the anchor is possible by driving the core rod, eliminating the need for a driving rod.
[Applications]
● For concrete. For installation of buildings, electrical equipment, piping, signs, handrails, chairs, etc.
[Specifications]
● Thread size: M12
● Total length (mm): 70
● Thread length (mm): 25
● Maximum fixture thickness (mm): 7
● Hole diameter (mm): 12.7
● Maximum tensile load (kN): 14.5
● Embedment depth (mm): 52
● Outer diameter (mm): 45
● Head diameter dk (mm): 12
[Specifications 2]

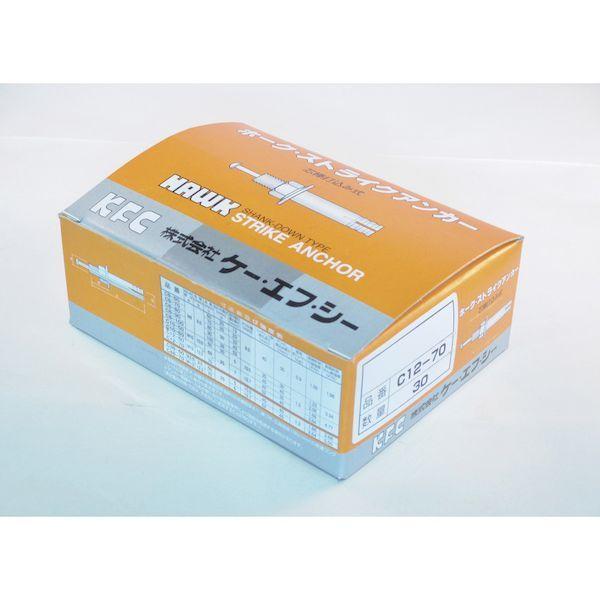

● Boxed
[Materials/Finish]
● Steel
● Surface treatment: Electro-galvanized
[Notes]
● The maximum tensile load is the value at a concrete strength of Fc18N/m[[M2]].
[Country of Origin]
Japan
| Product # | ED1567428 |
|---|
