KANETEC
Manufacturer Inquiries: 03-5823-7014[Features]

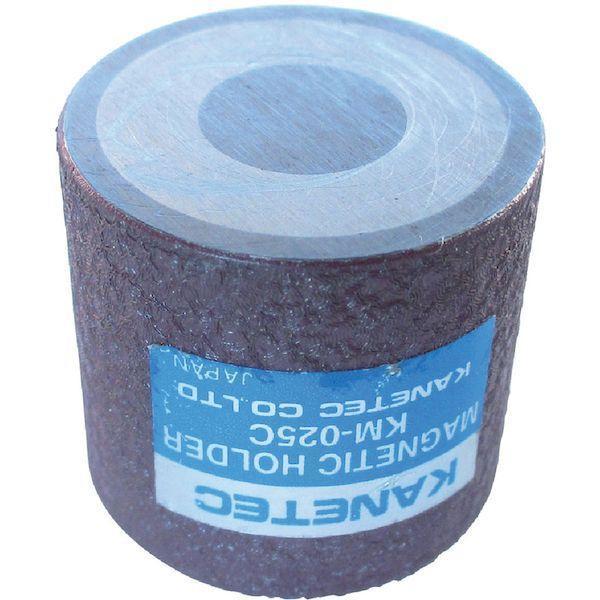

● Concentrates magnetic force on the ring-shaped pattern surface for single-sided attraction, exhibiting strong magnetic force despite its small size.
● Types with mounting screws (on the opposite side of the attraction surface) can be widely used by attaching them to jigs, etc.

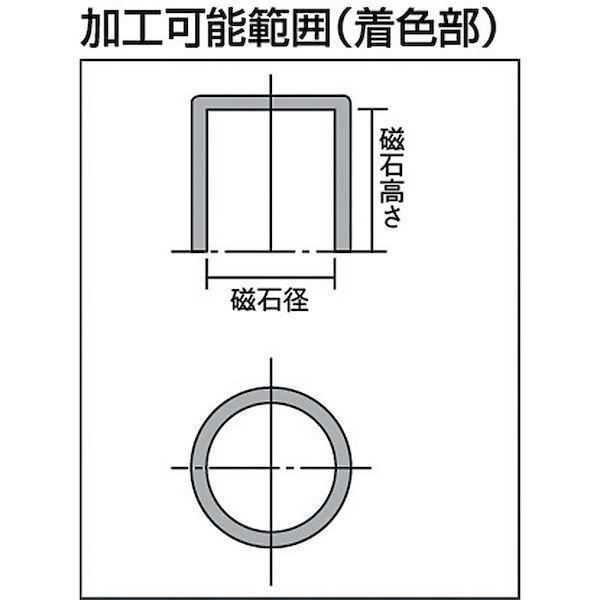

● Can be embedded in molds, etc.
● The attractive force is approximately 85% at 50°C and 70% at 100°C, with 20°C taken as 100%.
● A permanent magnet with a wide range of applications due to its structure that efficiently generates magnetic force.

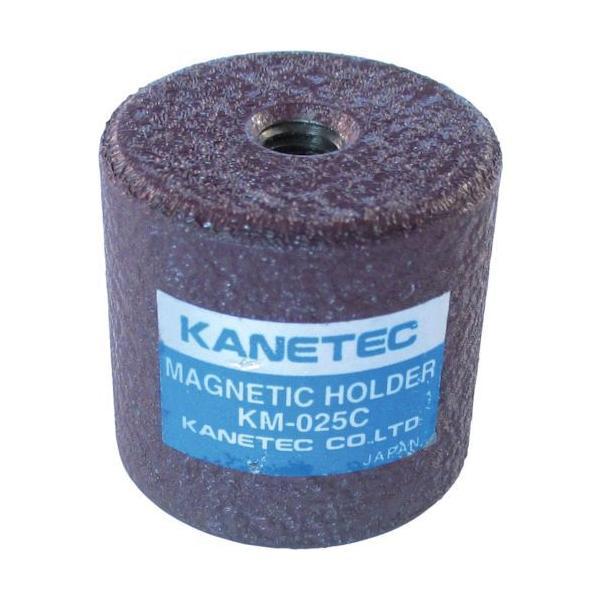

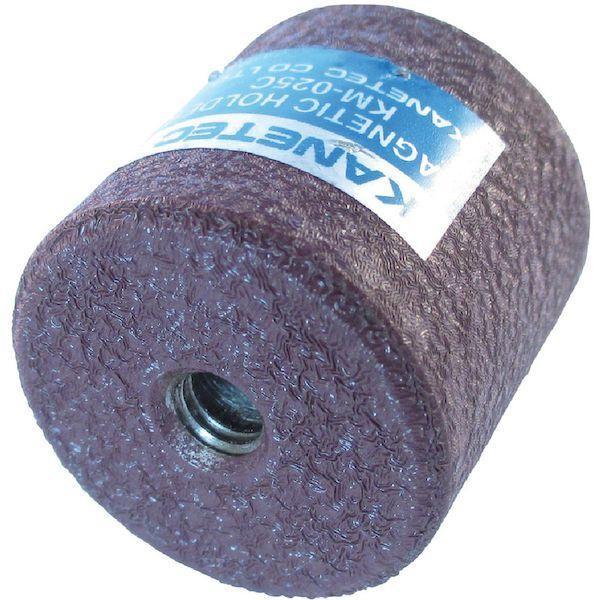

● Threading is provided on the back.
● The surface is painted.
[Applications]
● For holding drawings, rulers, paper patterns, etc.
● For holding workpieces during wire cutting operations.
● Can be used as clamps or holders by attaching to drawings, rulers, tools, and other machinery.

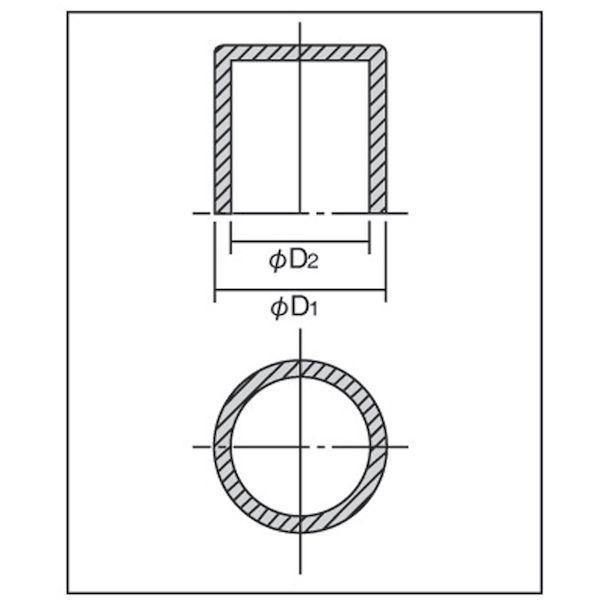

[Specifications]
● Attractive Force (N): 100
● Outer Diameter (mm): 26
● Height (mm): 25
● Mounting Screw: M6×1
● d (mm): 25
● h (mm): 17
[Specifications 2]
● Maximum Operating Temperature (Continuous Use): 100°C
[Materials/Finish]
● Magnet: Neodymium magnet
[Country of Origin]
China
| Product # | ED3169064 |
|---|
