【商品説明】

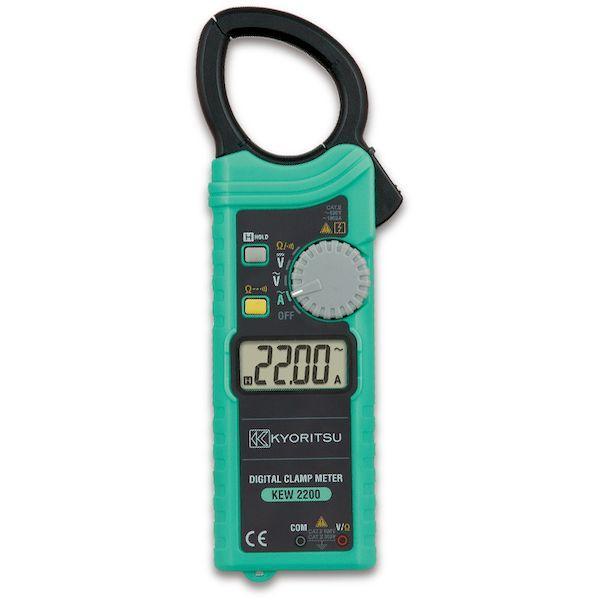

●細く薄いティアドロップ型のセンサ部で狭い配線間の測定に便利最大測定電流AC1000A最小分解能0.01Aテスタ機能（電圧、抵抗レンジ）も搭載
●品番：2200JB
●交流電流：40.00/400.0/1000A（3レンジオート）±1.4%rdg±6dgt(50/60Hz)±1.6%rdg±6dgt(45～65Hz)
●交流電圧：4.000/40.00/400.0/600V（4レンジオート）±1.8%rdg±7dgt(45～65Hz)±2.3%rdg±8dgt(65～500Hz)
●直流電圧：400.0mV/4.000/40.00/400.0/600V（5レンジオート）±1.0%rdg±3dgt（400mVレンジ除く）
●抵抗：400.0Ω/4.000/40.00/400.0kΩ/4.000/40.00MΩ（6レンジオート）±2.0%rdg±4dgt(0～400kΩ)±4.0%rdg±4dgt(4MΩ)±8.0%rdg±4dgt(40MΩ)
●導通：50±30Ω以下でブザー鳴動
●被測定導体径：最大φ33mm
●適合規格：IEC61010-1CATIII600V汚染度2(ACA)CATIII300V，CATII600V汚染度2(AC/DCV)IEC61010-031，IEC61010-2-032，IEC61326(EMC)
●使用電池：単4形乾電池R03/LR03(1.5V)×2
●連続使用可能時間：約350時間（オートパワーオフ約10分）
●寸法：L190×W68×D20mm
●質量：約120g（電池含む）
●セット内容：取扱説明書7107A（測定コード）9160（携帯用ケース）単4形乾電池R03×2
| Product # | ED5709976 |
|---|
