Special:B08JHDL4WP
Code:0889523023945
Brand:GIGABYTE
Standard:B550
Product size: Height 8, Width 27, Depth 33.5
Product weight: 1560
About this product
MB5128 Japan authorized dealer product, 2-year warranty
Compatible with 3rd generation & 5000 series AMD Ryzen / 3rd generation Ryzen with Radeon Graphics processors
Dual channel ECC / Non-ECC Unbuffered DDR4, 4 slots equipped
12+2 digital power phase design (50A DrMOS)
Equipped with large heatsink
› See more brands GIGABYTE
CPU socket Socket AM4
Supported device PC
RAM memory technology DDR4
Supported processors AMD 3rd Generation Ryzen about this product
MB5128 Japan authorized dealer product, 2-year warranty
Compatible with 3rd generation & 5000 series AMD Ryzen / 3rd generation Ryzen with Radeon Graphics processors
Dual channel ECC / Non-ECC Unbuffered DDR4, 4 slots equipped
12+2 digital power phase design (50A DrMOS)
Equipped with large heatsink
› See more
Shipping size: Height 33.5, Width 27.4, Depth 8.3
Shipping weight: 1560
- Brand introduction
Motherboard
Access store
Graphics card
Access store
Display
Access store
PC accessories
Access store
Laptop
Access store manufacturer description

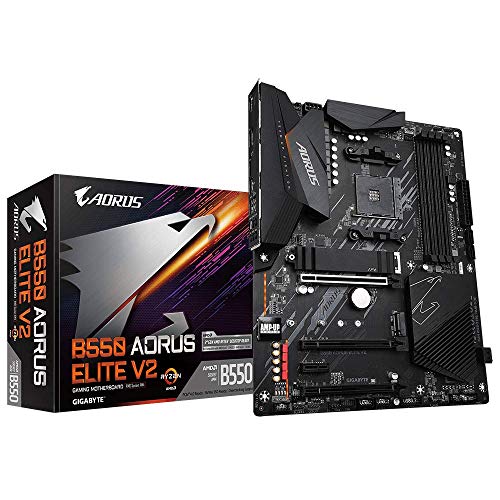

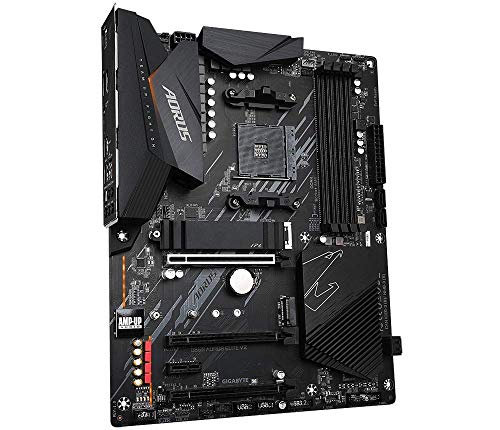

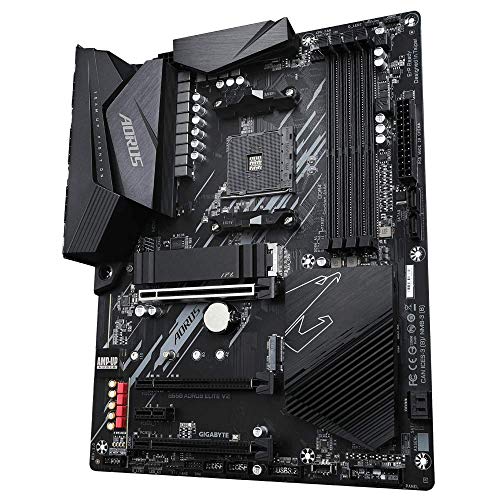

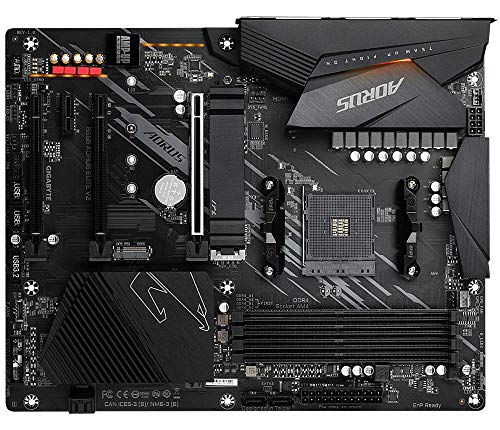

B550 AORUS ELITE V2
12+2 digital power phase design (50A DrMOS)
Equipped with large heatsink
Ultra Durable PCIe 4.0 x16 slot
Dual M.2 slots (NVMe PCIe 4.0 / 3.0 x4; with Thermal Guard)
ALC1200 AMP-UP audio (with WIMA audio capacitors)
Equipped with 2.5GbE wired LAN
DisplayPort & HDMI included
Equipped with Smart Fan 5 (multi-temperature sensors / hybrid fan headers / fan stop function)
Equipped with Q-Flash Plus

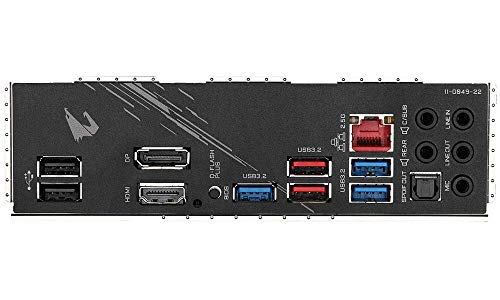

Built-in I/O back panel
Product features
12+2 digital power phase design
The B550 AORUS ELITE V2 motherboard uses a digital PWM controller and DrMOS with a 12+2 phase digital CPU power design. It provides remarkable accuracy and stability when supplying power to energy-sensitive components consuming motherboard power, allowing users to gain performance from 3rd generation AMD Ryzen processors.
Memory layout - Daisy chain design
With optimized daisy chain routing, the B550 AORUS ELITE V2 motherboard supports proven speeds up to DDR4-4000+ MHz and high-density modules*. Daisy chain routing eliminates stub effects, and in dual-channel interleaving mode, it pushes one DIMM per channel to achieve higher memory frequencies, providing professional gamers with a high-density, high-speed system memory experience.
Ultimate performance with PCIe 4.0 x4 + PCIe 3.0 x4
The B550 AORUS motherboard offers industry-leading compatibility for NVMe storage, suitable for users demanding high capacity and performance. AORUS's unique design enables data transfer speeds of 6560 MB/s (sequential read) in RAID configurations.
ADVANCED THERMAL SOLUTION
High performance is guaranteed by advanced thermal solutions such as large heatsinks and thermal guards. The B550 AORUS ELITE V2 motherboard keeps MOSFETs and M.2 SSDs cool even under full load.
2.5GbE wired LAN
For durability, GIGABYTE provides heat solutions for M.2 SSD devices. The M.2 Thermal Guard helps dissipate heat before issues occur, preventing throttling and bottlenecks caused by high-speed M.2 SSDs.
High-quality WIMA audio capacitors
The B550 AORUS ELITE V2 motherboard features a combination of Hi-Fi grade WIMA FKP2 capacitors and high-end Chemicon audio capacitors. These high-end audio capacitors are suitable for high-grade audio equipment, providing rich bass and clear high frequencies using the latest technology. WIMA FKP2 capacitors are widely used in premium Hi-Fi systems. Adding this to the proprietary AOURS AMP-UP audio technology creates an ideal onboard sound solution for demanding audiophiles.
Product overview
| Product # |
202505110057510889523023945 |
