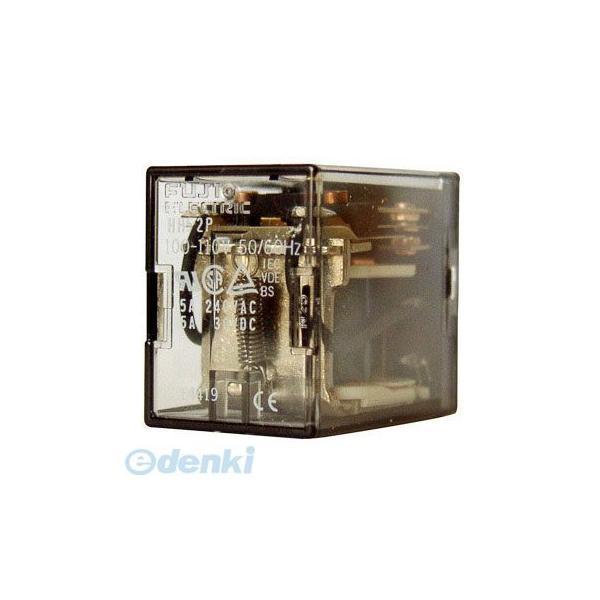

Fuji Electric
Manufacturer contact: 059-382-1395【Product Description】
● Coil rated voltage: AC200V
● Weight (g): approximately 30
● Type: Plug-in
● Number of poles: 4
● Model: HH54P-L
● Operating temperature range (°C): -25 to 60 (at rated voltage 100% applied, provided no freezing or condensation occurs)
● Frequency (Hz): 50/60
● Mounting shape: Standard type
● Standards: UL certified, CSA certified, TÜV certified, compliant with JIS4530
● Contacts: 4c
● Contact configuration: Single contact
● Terminal shape: Plug-in terminal
● Dielectric strength: Coil-contact, and between c contacts, each: AC2000V for 1 minute; contact gap: AC1000V for 1 minute; socket terminal-to-terminal: AC2000V for 1 minute
● Rated insulation voltage (V): 250
● CR circuit: None
● External dimensions (W×D×H) (mm): 21.0×27.8×40.6
● Function: Equipped with operation indicator lamp
● Insulation resistance (MΩ): 100 or more (measured with DC500V megohmmeter)
● Power consumption (VA): 50Hz: approximately 1.2; 60Hz: approximately 1.0/1.2; the power consumption during coil energization is about 1.5 times higher.
● Contact resistance (mΩ): 50 or less (initial value)
● Number of pins: 14
● Diode: None
● Vibration resistance (durability): 10–55Hz, multi-amplitude 1mm in X, Y, Z directions, each for 2 hours, total 6 hours
● Shock resistance (durability): 1000m/s2X, Y, Z directions each 3 times, total 18 times
● Operating time: 20ms or less
● Reset time: 20ms or less
● Compatible sockets: TP514, TP514B, TP514X1, TP514X2
● Reset voltage: 30% or more of rated voltage (at 20°C)
● Operating voltage: 80% or less of rated voltage (at 20°C)
● Maximum continuous applied voltage: 110% of rated voltage
● Vibration resistance (misoperation): 10–55Hz, multi-amplitude 1mm
● Shock resistance (misoperation): 200m/s2
● Mechanical durability: AC rated: over 50 million times
● Minimum suitable load: 1V, 1mA (reference value)
● Coil resistance (Ω): (reference value) 13400 (50Hz)
● Coil inductance (H) / open circuit: (reference value) 46.65 (50Hz)
● Coil inductance (H) / during operation: (reference value) 92.34 (50Hz)
● Coil color: Yellow
● Excitation current (mA): 50Hz: 6; 60Hz: 5/5.5
● Indicator lamp: Yes
● Rated continuous current (A): 3
| Product # | ED1087076 |
|---|
