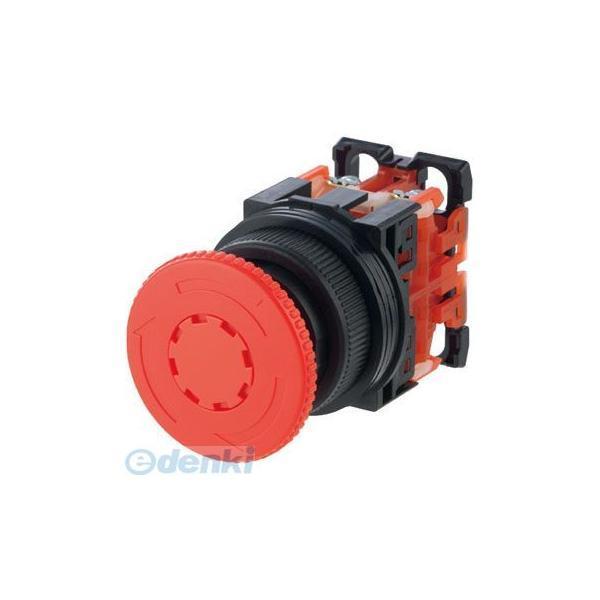

Fuji Electric
Manufacturer Inquiries: 059-382-1395【Product Description】
●Material: Round ring: Resin
●Protection structure: Operating part: IP65 (oil-resistant)
●Contact configuration: 1b
●Frame: Round
●Button color: Red
●Withstand voltage: Between live parts and ground/between different polarity live parts: AC2500V for 1 minute
●Rated insulation voltage (V): AC/DC600
●Terminal screws: M3.5 Phillips/slotted combination screws with square washers (self-lifting type)
●Mounting dimensions (mm): Φ30.5
●Storage temperature (°C): -40 to +80
●Insulation resistance (MΩ): Between live parts and ground/between different polarity live parts: 100 or more (with DC500V megger)
●Relative humidity: Inside panel: 45-85%RH (at -5 to +40°C)
●Operating ambient temperature (°C): -20 to +70
●Reset method: Turn reset
●Vibration: Variable vibration endurance test: Double amplitude 0.5mm, maximum 50m/s²2・Frequency 10-500Hz
●Mechanical durability: 1 million times or more
●Electrical durability: 500,000 times or more at AC220V 6A
1 million times or more at AC220V 3A
●Short-circuit protection device: Fuse 15A
●Conditional short-circuit current: 1000A
●Rated impulse withstand voltage (kV): 6
●Degree of pollution (usage environment): 3
●Operating part shape: Push-lock large type (Φ40/no white arrow)
●Shock (m/s2): Malfunction: 150, Durability: 500
●Switching frequency (times/hour): 1200 (duty cycle 40%)
| Product # | ED1086927 |
|---|
