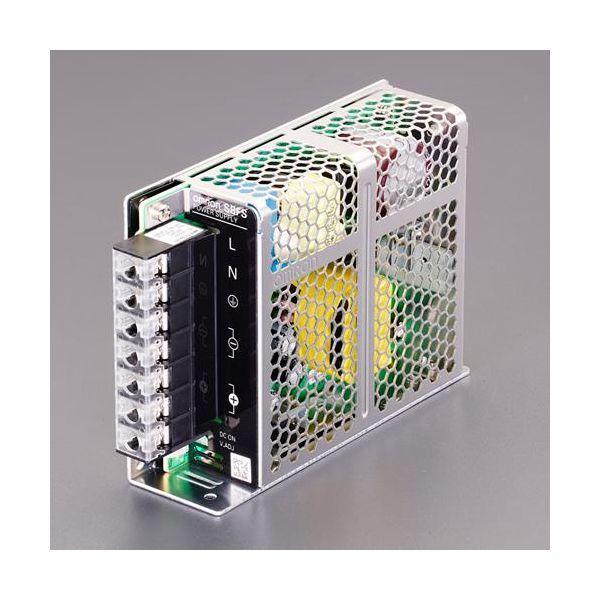

エスコ
メーカーお問い合わせ：06-6532-6226●出力電圧…DC5V
●出力容量…15W
●入力電圧…100～240V(DC80～370V共用)
●入出力接続…端子台
●端子台タイプ…ねじ端子
●効率…80% typ. (AC100V入力時)
80% typ. (AC200V入力時)
80% typ. (AC230V入力時)
●入力電圧許容変動範囲…AC85～264V (単相)
DC80～370V
●周波数…50/60Hz (47～450Hz)
●入力電流…0.32A typ. (AC100V入力時)
0.2A typ. (AC200V入力時)
●リーク電流…0.5mA以下 (AC100V入力時)
1mA以下 (AC200V入力時)
●突入電流…14A typ. (25℃コールドスタートにて) (AC100V入力時)
28A typ. (25℃コールドスタートにて) (AC200V入力時)
●出力電流…3A
●リップルノイズ電圧…40mV(p-p)以下 AC100～240V入力時
●入力変動…0.5%以下
●負荷変動…1%以下
●周囲温度変動…0.05%/℃以下
●起動時間…1000ms以下 (AC100V入力時)
1000ms以下 (AC200V入力時)
●出力保持時間…15ms typ. (AC100V入力時)
75ms typ. (AC200V入力時)
●過電流保護…有、自動復帰
●過電圧保護…有、電断復帰
●過熱保護…無
●過熱保護…無
●直列運転…可 (2台まで接続可能。外付けダイオード要)
●並列運転…不可 (ただしバックアップ運転可能、外付けダイオード要)
●出力表示灯…有（色：緑）
●リモートセンシング
リモートコントロール…無
●耐電圧…(入力端子一括)と(出力端子一括)間: AC3kV 1min カットオフ電流20mA
(入力端子一括)と(PE)間: AC2kV 1min カットオフ電流20mA
(出力端子一括)と(PE)間: AC1kV 1min カットオフ電流20mA
●絶縁抵抗…(出力端子一括)と(入力端子一括・PE)間: 100MΩ以上 DC500V
●耐振動…10～55Hz 最大4.5G 片振幅0.375mm 3方向 各2h
●標高…3000m
●使用周囲温度…-20～70℃(0～90％)
●保存温度…-25～75℃(0～90％)
●期待寿命…10年以上 (定格入力、50%負荷率、周囲温度+40℃以下、標準取りつけ状態にて)
●冷却方式…冷却ファン 無
●質量…約250g
●正面取付けタイプ
●カバー付きタイプ
| Product # | ED3342711 |
|---|
