Code: 4549550177153

Brand: Elecom (ELECOM)

Model: M-XT3DRBK-G

Product color: 1) Wireless Red Ball Gaming Grade Sensor

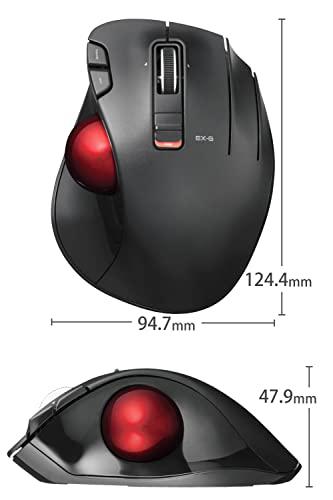

Product size: Height 5.2, Width 21.8, Depth 13.4

Product weight: 128

About this product
This is an evolved thumb-operated wireless trackball equipped with reliable basic performance and unprecedented new features.
The sensor that detects the movement of the trackball is equipped with a gaming-grade high-performance optical sensor, and the outstanding pointer tracking is achieved through the optimization of the new high-performance lens and surrounding optical design.
By adopting a large artificial ruby with a diameter of 2.5mm as the support ball, the control feel is improved. Additionally, the larger support ball reduces the likelihood of being buried in dirt such as fingerprints, lowering maintenance frequency.
Focusing on the skeletal muscles of the six hands that contact during operation, and considering the depressions and bulges in the design, it realizes a new 'Nose Kokochi' that makes it feel as if the shape of the palm is directly reflected, making operation easier.
Includes a speed change switch that can switch the pointer movement speed between 1500/750 counts in two stages.
Equipped with one customizable function button in the place of the ring finger.
› See more Brand: Elecom (ELECOM)
Color 1) Wireless Red Ball Gaming Grade Sensor
Connection technology: USB, 2.4GHz wireless
Features: Ergonomic design, multi-function button
Movement detection technology: Optical
About this product
This is an evolved thumb-operated wireless trackball equipped with a gaming-grade high-performance optical sensor, achieving excellent pointer tracking through the optimization of the new high-performance lens and surrounding optical design.
Adopting a large artificial ruby with a diameter of 2.5mm as the support ball enhances the control feel. The larger support ball also makes it less likely to be buried in dirt such as fingerprints, reducing maintenance frequency.
Focusing on the skeletal muscles of the six hands that contact during operation, and considering the depressions and bulges in the design, it realizes a new 'Nose Kokochi' that makes it feel as if the shape of the palm is directly reflected, making operation easier.
Includes a speed change switch that can switch the pointer movement speed between 1500/750 counts in two stages.
Equipped with one customizable function button in the place of the ring finger.
› See more

Shipping size: Height 21.9, Width 13.5, Depth 6.4

Shipping weight: 290

Specifications
Interface: USB
Connector shape: USB (A) male
Compatible models: Windows OS equipped with USB port, macOS-equipped devices
Supported OS: Windows 10, Windows RT 8.1, Windows 8.1, Windows 7, Windows Vista, macOS X 10.10. Upgrading to the latest versions of each OS and installing service packs may be required. Windows RT 8.1 does not support horizontal scroll function.
Resolution: 750/1500 counts (switchable)
Communication method: GFSK method
Radio frequency: 2.4GHz band
Radio reach: About 3m on magnetic materials (such as iron desks), about 10m on non-magnetic materials (such as wooden desks)
Reading method: Optical sensor method
Emission light type: Invisible wavelength range
Number of buttons: 6 including wheel button
Number of wheels: 1
Horizontal scroll function:
Receiver storage:
Continuous operation time: Low energy mode: about 125 hours, High speed mode: about 76 hours
Continuous standby time: Low energy mode: about 694 days, High speed mode: about 694 days
Expected battery usage period: Low energy mode: about 273 days, High speed mode: about 176 days (assuming 8 hours of computer operation per day with 5% of time allocated to mouse operation)
Power (main unit): 1.5V AA alkaline dry battery, manganese dry battery, or nickel-metal hydride battery
Rated voltage (main unit): 1.5V
Color: Black
Size classification: L size
Mass (mouse main body): approximately 128g (excluding batteries)
External dimensions (receiver): Width 13.1mm, Depth 18.2mm, Height 5.0mm
Mass (receiver): approximately 2g
Accessories: 1 AA alkaline dry battery for operation check, 1 User manual
Warranty period: 6 months
Others: Warranty card is not included. Please keep your receipt or proof of purchase.

Description
This is an evolved thumb-operated wireless trackball equipped with reliable basic performance and unprecedented new features.
The sensor that detects the movement of the trackball is equipped with a gaming-grade high-performance optical sensor, and the outstanding pointer tracking is achieved through the optimization of the new high-performance lens and surrounding optical design.
By adopting a large artificial ruby with a diameter of 2.5mm as the support ball, the control feel is improved. Additionally, the larger support ball reduces the likelihood of being buried in dirt such as fingerprints, lowering maintenance frequency.
Focusing on the skeletal muscles of the six hands that contact during operation, and considering the depressions and bulges in the design, it realizes a new 'Nose Kokochi' that makes it feel as if the shape of the palm is directly reflected, making operation easier.
Equipped with 'Back' and 'Forward' buttons to improve web browsing efficiency. The size and shape of the buttons have been designed for easier access.
Equipped with one customizable function button in the place of the ring finger.
The left and right buttons use OMRON switches, known for high durability and a reliable click feeling.
Features a tilt wheel that allows horizontal scrolling by tilting the wheel. Useful for operating wide screens such as Excel.
Includes a speed change switch that can switch the pointer movement speed between 1500/750 counts in two stages.
Button functions can be changed using the free downloadable 'Elecom Mouse Assistant'.
The ball can be easily removed from the hole on the back, making maintenance of the ball and internal ball socket easy.
Wireless method uses 2.4GHz band, usable within about 10m on non-magnetic materials, and about 3m on magnetic materials such as steel desks. (Our research)
Adopts a micro receiver about the size of a 1-yen coin that can be connected to a laptop's USB port and carried around without concern.
The receiver can be stored inside the main body, making it convenient to carry and reducing the risk of losing the receiver.
The main body has a power switch on the back to prevent battery drain when not in use.
Equipped with a battery level indicator lamp that notifies when to replace the batteries. Brand introduction



We aim to create products and services that solve customer problems, are more enjoyable, more comfortable, and full of ingenuity.

Based on the idea of 'Creating high-value-added products and services to deliver joy to customers worldwide,' we release over 2,000 new products every year.


EX-G TRACKBALL

Design born from the shape of the hand: EX-G

Evolved trackball

Realizes a new 'Nose Kokochi' based on the design focusing on the skeletal muscles of the hand


Pointer tracking performance

The sensor that detects the movement of the trackball is equipped with a gaming-grade high-performance optical sensor, and the outstanding pointer tracking is achieved through the optimization of the new high-performance lens and surrounding optical design.

Only for red ball trackball mouse models


Thumb operation type

Index finger operation type

Other lineup explanations by manufacturer









Fits the palm

Designed focusing on the skeletal muscles of the six hands, realizing a new 'Nose Kokochi'


More user-friendly 'Back' and 'Forward' buttons

Includes 'Back' and 'Forward' buttons to improve web browsing efficiency


Gaming-grade high-performance optical sensor

The sensor that detects the movement of the trackball is equipped with a gaming-grade high-performance optical sensor, and the outstanding pointer tracking is achieved through the optimization of the new high-performance lens and surrounding optical design


Large artificial ruby adopted for the support ball

Adopting a large artificial ruby with a diameter of 2.5mm as the support ball enhances the control feel. The larger support ball also makes it less likely to be buried in dirt such as fingerprints, reducing maintenance frequency

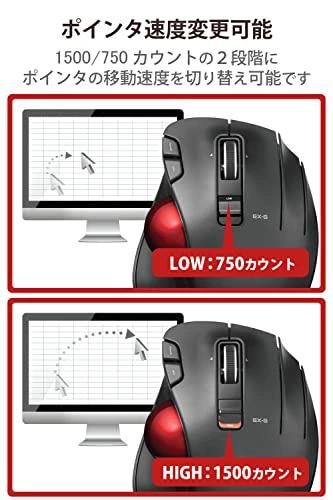

Speed changeable

Includes a speed change switch that can switch the pointer movement speed between 1500/750 counts in two stages


Tilt wheel equipped

Features a tilt wheel that allows horizontal scrolling by tilting the wheel. Useful for operating wide screens such as Excel.

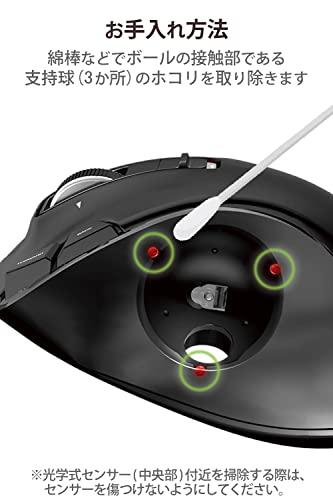

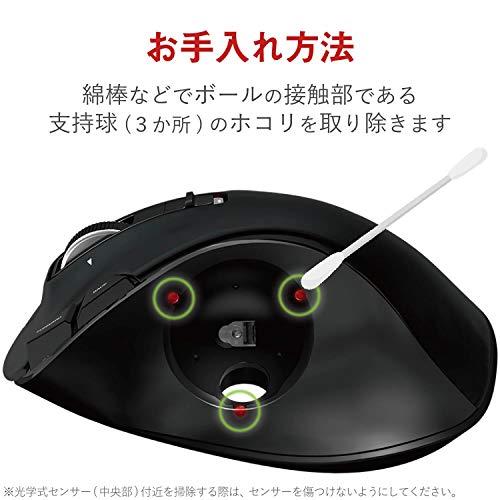

Easy maintenance

The ball can be easily removed from the hole on the back, making maintenance of the ball and internal ball socket easy

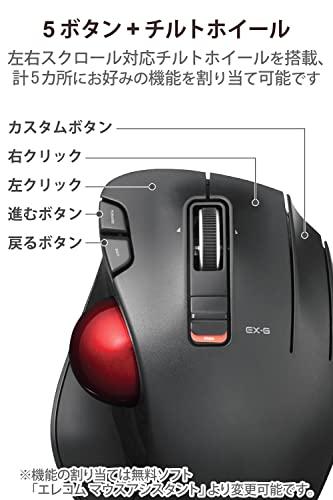

Button assignment possible

Button functions can be changed using the free downloadable 'Elecom Mouse Assistant'
