4953103350137

ELECOM (Elecom)

M-HT1DRXBK

Product color: Black

Size information: Wireless 2.4GHz

Product size: Height 5.7cm, Width 11.5cm, Depth 18.2cm

Product weight: 260g

About this product
Experience an unprecedented level of control with a large 52mm diameter trackball. Equipped with a palm rest to reduce wrist strain during long hours of PC work, this is the HUGE wireless trackball mouse designed for index and middle finger operation.

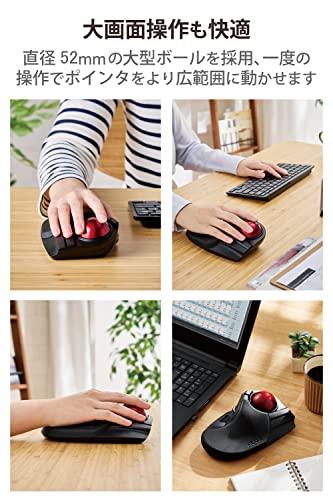

By adopting a large 52mm diameter ball, this wireless trackball mouse allows you to move the pointer over a wider area with each operation, ideal for index and middle finger control.

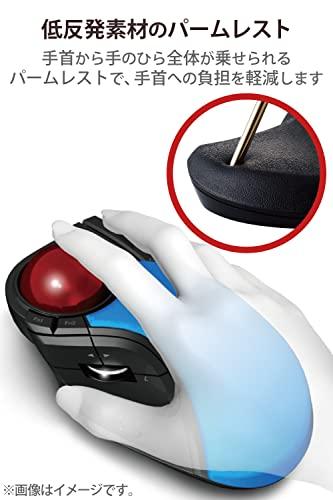

Features a low-rebound material palm rest on the top surface of the main unit, allowing your entire hand and wrist to rest comfortably, reducing fatigue during extended PC use.
Equipped with a gaming-grade high-performance optical sensor to detect the movement of the trackball.
Thoroughly analyzed the color and coating layer thickness suitable for optical sensors, and redesigned the trackball from scratch to achieve ultimate pointer tracking performance.
› See more brands ELECOM (Elecom)
Color: Black
Connection technology: USB, 2.4GHz wireless
Features: Trackball
Features: Trackball
Experience an unprecedented level of control with a large 52mm diameter trackball. Equipped with a palm rest to reduce wrist strain during long hours of PC work, this is the HUGE wireless trackball mouse designed for index and middle finger operation.
By adopting a large 52mm diameter ball, this wireless trackball mouse allows you to move the pointer over a wider area with each operation, ideal for index and middle finger control.
Features a low-rebound material palm rest on the top surface of the main unit, allowing your entire hand and wrist to rest comfortably, reducing fatigue during extended PC use.
Equipped with a gaming-grade high-performance optical sensor to detect the movement of the trackball.
Thoroughly analyzed the color and coating layer thickness suitable for optical sensors, and redesigned the trackball from scratch to achieve ultimate pointer tracking performance.
› See more

Shipping size: Height 21.1cm, Width 15.4cm, Depth 6.5cm

Shipping weight: 450g

Product introduction

Specifications
Interface: USB
Connector shape: USB (A) male
Compatible devices: Windows OS and macOS equipped with USB ports
Supported OS: Windows 11/10/RT8.1/8.1/7/Vista/XP, macOS Sonoma 14/macOS Ventura 13/macOS Monterey 12. Updates or service packs may be required for each OS.
Resolution: 500/1000/1500 counts (switchable)
Communication method: GFSK
Radio frequency: 2.4GHz band
Radio range: Up to 3m on ferromagnetic surfaces (like steel desks), up to 10m on non-magnetic surfaces (like wood desks)
Reading method: Optical sensor
Emission light type: Invisible wavelength range
Number of buttons: 8, including wheel button
Number of wheels: 1
Ball diameter: approximately 52mm
Horizontal scroll function:
Receiver storage:
Continuous operation time: Low energy mode: approx. 235 hours, High-speed mode: approx. 137 hours
Continuous standby time: Low energy mode: approx. 1,851 days, High-speed mode: approx. 1,851 days
Estimated battery usage period: Low energy mode: approx. 534 days, High-speed mode: approx. 325 days (assuming 8 hours of PC operation per day with 5% dedicated to mouse use)
Power source (main unit): 2 x AAA alkaline dry batteries, manganese batteries, or nickel-metal hydride batteries
Rated voltage (main unit): 1.5V
Color: Black

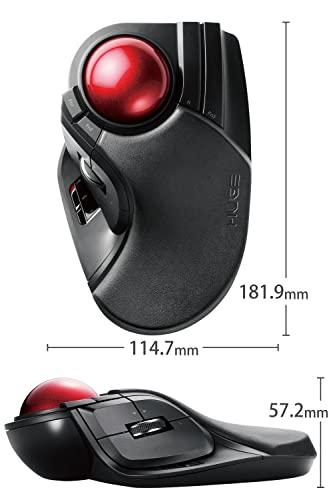

External dimensions (mouse body): Width 114.7mm, Depth 181.9mm, Height 57.2mm
Size classification: LL size
Weight (mouse body): approx. 260g (excluding batteries)
External dimensions (receiver): Width 13.1mm, Depth 18.2mm, Height 5.0mm
Weight (receiver): approx. 2g
Accessories: 2 AAA alkaline batteries for operation check, 1 user manual
VCCI Class B compliant:
Warranty period: 6 months

Description
By adopting a large 52mm diameter ball, this wireless trackball mouse allows you to move the pointer over a wider area with each operation, ideal for index and middle finger control.
Features a low-rebound material palm rest on the top surface of the main unit, allowing your entire hand and wrist to rest comfortably, reducing fatigue during extended PC use.
Equipped with a gaming-grade high-performance optical sensor to detect the movement of the trackball.
Thoroughly analyzed the color and coating layer thickness suitable for optical sensors, and redesigned the trackball from scratch to achieve ultimate pointer tracking performance.
Using a large artificial ruby with a diameter of 2.5mm as the support ball and selecting only those with a smooth surface greatly enhances the control feel. Additionally, the large support ball is less likely to get buried in dirt or fingerprints, reducing maintenance frequency.
Left and right buttons use OMRON switches known for high durability and reliable click feeling.
Equipped with "Forward" and "Back" buttons to improve web browsing efficiency.
Features a tilt wheel that allows horizontal scrolling by tilting, ideal for long horizontal screens like Excel.

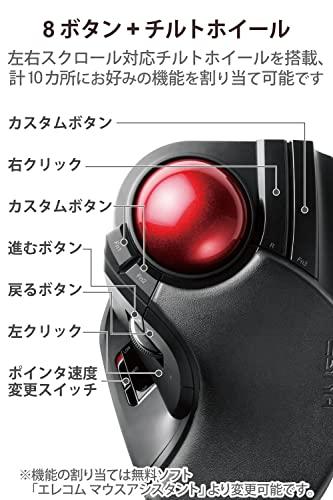

Includes 8 buttons and two-way horizontal scroll, totaling 10 customizable functions. Button functions can be changed using the free "ELECOM Mouse Assistant" software.
Features a speed switch to change pointer movement speed among 500/1000/1500 counts.

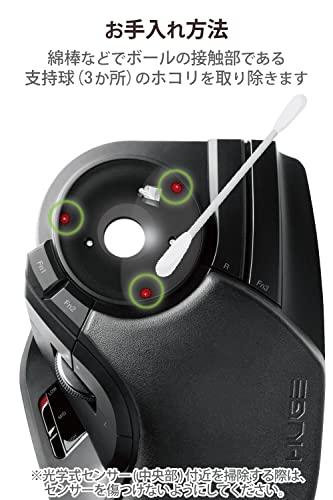

Easy to remove the ball from the back hole for maintenance of the ball and internal ball socket.
Uses 2.4GHz wireless technology, with a range of about 10m on non-magnetic surfaces and about 3m on magnetic surfaces like steel desks (based on our testing).
Employs a micro receiver about the size of a 1-yen coin that can be used without concern when connected to a laptop's USB port and can be carried around attached to the mouse.

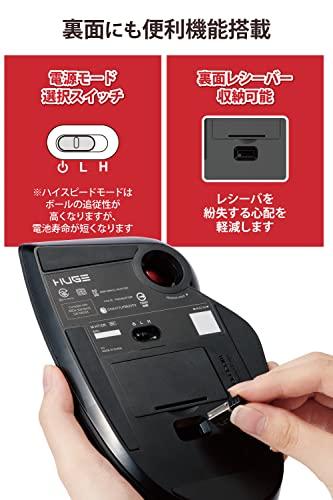

The receiver can be stored inside the mouse body, making it convenient to carry and reducing the risk of losing it.
Has a power switch on the back to prevent battery drain when not in use.
Includes a battery level indicator lamp to notify when batteries need replacing.
No spare balls are included. Please clean the ball and mouse before use. Dirt can impair movement, so regular maintenance is recommended. Cleaning method: use a cleaning cloth.

Product inquiries
ELECOM General Information Center
TEL. 0570-084-465
FAX. 0570-050-012
Service hours: 10:00–19:00, open year-round

Please read the disclaimer and caution

Updating to the latest OS version or installing service packs may be necessary. Horizontal scroll is not available on Windows RT8.1. Brand introduction



We aim to create products and services that solve customer problems, are more enjoyable, more comfortable, and full of ingenuity.

Based on the philosophy of "Creating high-value-added products and services to deliver joy to customers worldwide," we release over 2,000 new products annually.


EX-G TRACKBALL

Design born from the shape of the hand EX-G

Evolved trackball

Designed with focus on the skeletal structure and muscles of the hand, achieving a new "support comfort"


Pointer tracking performance

Uses a gaming-grade high-performance optical sensor to detect trackball movement. Thoroughly analyzed the color and coating layer thickness suitable for optical sensors, enhancing pointer tracking.

Only for red ball trackball mouse models


Thumb operation type

Index finger operation type

Other lineup explanations by manufacturers

Features a low-rebound material palm rest on the top surface of the main unit, allowing your entire hand and wrist to rest comfortably, reducing fatigue during extended PC use.

Using a large artificial ruby with a diameter of 2.5mm as the support ball and selecting only those with a smooth surface greatly enhances the control feel.

Equipped with a gaming-grade high-performance optical sensor to detect trackball movement.

Left and right buttons use OMRON switches known for high durability and reliable click feeling.

Features a tilt wheel that allows horizontal scrolling by tilting, ideal for long horizontal screens like Excel. Includes 8 buttons and two-way horizontal scroll, totaling 10 customizable functions.

Features a speed switch to change pointer movement speed among 500/1000/1500 counts.

Equipped with "Forward" and "Back" buttons to improve web browsing efficiency.

Button functions can be changed using the free "ELECOM Mouse Assistant" software.


EX-G right-handed trackball

EX-G left-handed trackball

EX-G PRO right-handed trackball

bitra right-handed trackball

Relacon media control button equipped stand with silent operation
