Code:4549550205597

Brand: Elecom (ELECOM)

Model: WTC-X1800GC-W

Product color: White

Product size: Height 13, Width 9.3, Depth 5.2

Product weight: 218

About this product

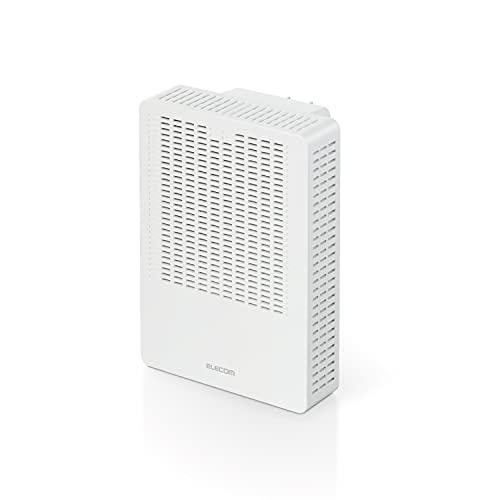

This is a repeater that relays Wi-Fi router signals and expands the Wi-Fi area. It reliably delivers Wi-Fi signals to rooms where internet connection was difficult, making it suitable for telework and online learning.
It is suitable for homes with rooms far from the Wi-Fi router, or homes with reinforced concrete structures, insulation materials, floor heating, etc., which make Wi-Fi signals difficult to pass through, and where customers are troubled by 'Wi-Fi signals not reaching or hard to reach.'
This product can extend the Wi-Fi area not only for standard Wi-Fi routers using fixed lines but also for 5G home routers equipped with Wi-Fi from various carriers.
It supports Wi-Fi 6, enabling more stable high-speed communication. It is strong in simultaneous multiple device connections, making it suitable for telework and online learning.
Features include OFDMA, 1024QAM to increase transmission information, MU-MIMO for multiple simultaneous connections, and TWT for longer smartphone battery life, providing stress-free communication even when the whole family connects to Wi-Fi.
› See more brands Elecom (ELECOM)
Wireless communication standards: 802.11n, 802.11ax, 802.11a, 802.11ac, 802.11g
Data transfer rate: 1775 Megabits per second
Frequency band class: Dual band
Color: White About this product
This is a repeater that relays Wi-Fi router signals and expands the Wi-Fi area. It reliably delivers Wi-Fi signals to rooms where internet connection was difficult, making it suitable for telework and online learning.
It is suitable for homes with rooms far from the Wi-Fi router, or homes with reinforced concrete structures, insulation materials, floor heating, etc., which make Wi-Fi signals difficult to pass through, and where customers are troubled by 'Wi-Fi signals not reaching or hard to reach.'
This product can extend the Wi-Fi area not only for standard Wi-Fi routers using fixed lines but also for 5G home routers equipped with Wi-Fi from various carriers.
It supports Wi-Fi 6, enabling more stable high-speed communication. It is strong in simultaneous multiple device connections, making it suitable for telework and online learning.
Features include OFDMA, 1024QAM to increase transmission information, MU-MIMO for multiple simultaneous connections, and TWT for longer smartphone battery life, providing stress-free communication even when the whole family connects to Wi-Fi.
› See more

Shipping size: Height 21.8, Width 12.8, Depth 8

Shipping weight: 420

Specifications
Supported OS (Windows): Windows 10
Supported OS (Mac): macOS Big Sur 11 / macOS Catalina 10.15 / macOS Mojave 10.14 / macOS High Sierra 10.13 / macOS Sierra 10.12 / OS X El Capitan 10.11 / OS X Yosemite 10.10
Supported OS (iOS): 14 / 13 / 12 / 11
Supported OS (iPadOS): 14 / 13
Supported OS (Android): 11 / 10 / 9 / 8
Setup tool supported browsers: Internet Explorer 11, Edge, Chrome for Android, Safari for Mac OS, Safari for iOS, Safari for iPadOS. Initial setup (internet connection setting) is only supported using the built-in web browsers.
Supported devices (wireless LAN): iPhone series, iPad series, Android devices, various game consoles (Nintendo 3DS/DS series, PlayStation Portable(R) series, PlayStation(R) Vita series, PlayStation(R) 3/4/5, Wii/Wii U, Nintendo Switch(TM), Xbox 360), various wireless LAN-enabled devices.
Wired standards: IEEE802.3ab (1000BASE-T) / IEEE802.3u (100BASE-TX) / IEEE802.3 (10BASE-T) compliant.
Wired connectors: LAN: RJ-45 8-pin 1 port, Auto MDI/MDI-X, Auto-Negotiation supported.
Wired transmission speed: 1000Mbps / 100Mbps / 10Mbps
Wireless standards: IEEE 802.11ax (Draft) / IEEE 802.11ac / IEEE 802.11n / IEEE 802.11a / IEEE 802.11b / IEEE 802.11g
Wireless transmission methods: IEEE 802.11ax (Draft): MIMO-OFDMA / IEEE 802.11ac: MIMO-OFDM / IEEE 802.11n: MIMO-OFDM / IEEE 802.11g: OFDM / IEEE 802.11b: DS-SS / IEEE 802.11a: OFDM
Wireless transmission speed (theoretical): IEEE 802.11ax (Draft): Max 1201Mbps on 5GHz band, Max 574Mbps on 2.4GHz band / IEEE 802.11ac: Max 867Mbps / IEEE 802.11n: Max 400Mbps / IEEE 802.11g: Max 54Mbps / IEEE 802.11b: Max 11Mbps / IEEE 802.11a: Max 54Mbps
Frequency bands: 2.4GHz band: 2,400~2,484MHz, 5.2GHz band (W52): 5,150~5,250MHz, 5.3GHz band (W53): 5,250~5,350MHz, 5.6GHz band (W56): 5,470~5,725MHz
Channels: 2.4GHz band: 1~13ch, 5GHz band (W52/W53/W56): 36/40/44/48/52/56/60/64/100/104/108/112/116/120/124/128/132/136/140/144ch
Wireless security: WPA3 Personal (AES), WPA2 Personal (AES), WPA Personal (TKIP)
Beamforming function: Beamforming Z supported
MU-MIMO function: Supported
Setup method: WPS 2.0 supported, Access method: Infrastructure
Various certifications: VCCI Class B / TELEC / JATE
Supported modes: Normal mode / Detached house mode
Antenna (number): Built-in antennas 2 (shared for 2.4GHz/5GHz)
Supported protocol: TCP/IP (IPv4)
Automatic firmware update: Supported
Input voltage: AC100~240V 10% ~ 0.35A 50/60Hz, Max power consumption: 9.0W
Operating environment: Temperature: 0~40°C, Humidity: 10%~85% (no condensation)
Power connector: AC plug, Installation type: Directly plugged into outlet
External dimensions (Width Depth Height): (W) approx. 93.0 (D) approx. 52.0 (H) approx. 130.0mm (excluding protrusions), Weight: approx. 218g
Accessories: Wi-Fi repeater main unit 1, manuals 2, easy setup sheet 1, Warranty period: 1 year

Description
This is a repeater that relays Wi-Fi router signals and expands the Wi-Fi area. It reliably delivers Wi-Fi signals to rooms where internet connection was difficult, making it ideal for telework and online learning.
It is suitable for homes with rooms far from the Wi-Fi router, or homes with reinforced concrete structures, insulation materials, floor heating, etc., which make Wi-Fi signals difficult to pass through, and where customers are troubled by 'Wi-Fi signals not reaching or hard to reach.'
It supports Wi-Fi 6, enabling more stable high-speed communication. It is strong in simultaneous multiple device connections, making it ideal for telework and online learning.
Features include OFDMA, 1024QAM to increase transmission information, MU-MIMO for multiple simultaneous connections, and TWT for longer smartphone battery life, providing stress-free communication even when the whole family connects to Wi-Fi.

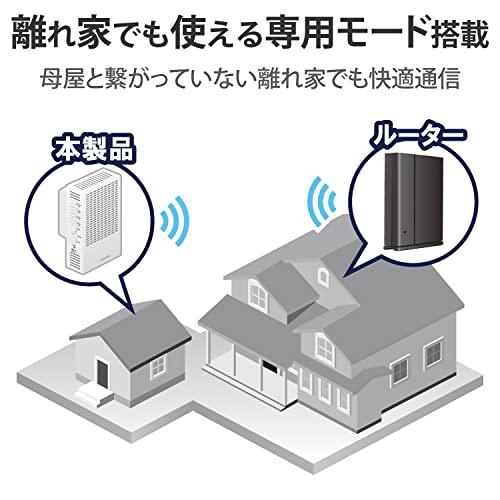

Communication with a detached house not connected to the main building is treated as 'outdoor use,' which could violate radio wave laws if using conventional products that also use radio waves prohibited for outdoor use. This product features a 'detached house mode (patent pending)' that operates only within radio bands approved for outdoor use, allowing safe use in such environments.
Connection to the Wi-Fi router (main unit) is simply done by pressing the WPS button on both the main unit and this product. If the device supports WPS, it can connect to other manufacturers' products as well. For devices without WPS, connection can be made by configuring settings via this product's management screen.

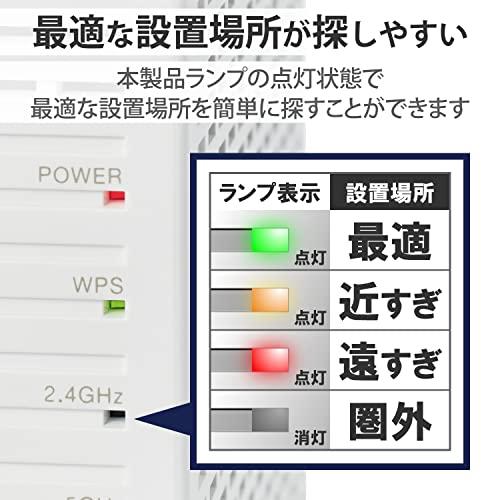

The connection status between this product and the Wi-Fi router (main unit) can be checked by the indicator lamps, allowing easy determination of optimal placement without a dedicated app.

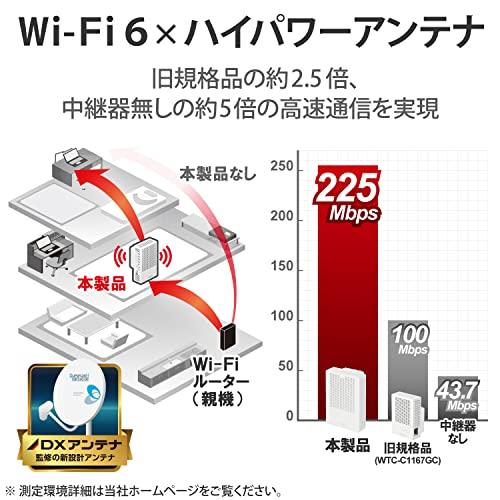

Verification with actual measurements shows about 5 times faster than without a repeater, about 2.5 times faster than the old standard product (WTC-C1167GC), improving communication speed. In a three-story wooden house with a Wi-Fi router on the 1st floor (Wi-Fi 6 2x2), placing this product on the 2nd floor, the 5GHz communication speed at the furthest point from the 1st to 3rd floor was measured.
Stylish design that plugs directly into wall outlets. Since no cable is needed for connection, it can be easily installed at relay points inside the house. Its compact design does not block the other outlet when plugged into a standard double outlet.
Supports high-speed communication with less interference on the 5GHz band (11ax/ac/n/a) at 1201Mbps, and the 2.4GHz band (11ax/n/g/b) at 574Mbps, which is resistant to obstacles like walls and floors (standard values).
Equipped with high-power built-in antennas utilizing know-how from the affiliated DX Antenna, providing a neat appearance while ensuring comfortable communication. The antennas are carefully designed in placement and orientation to achieve omnidirectional sensitivity, enabling reliable connection with smart home appliances (Wi-Fi air conditioners) and IoT devices without blind spots.

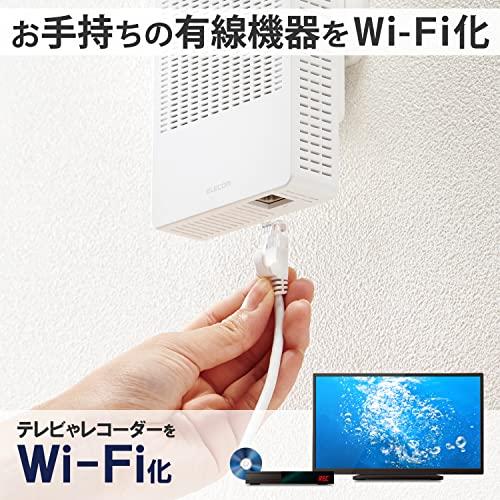

Includes a 1Gbps LAN port, allowing wired devices like TVs and recorders to connect via Wi-Fi, and can also be used as an Ethernet converter.
Features band steering that automatically selects and connects to the more comfortable band (5GHz/2.4GHz).
Using 'Beamforming Z,' which concentrates radio waves, compatible devices like iPhones and Android phones can connect comfortably even from a distance.
Supports MU-MIMO to transmit different data to multiple devices simultaneously.
