Code: 4953103404779

Brand: Elecom (ELECOM)

Model: WTC-300HWH

Product color: White

Size information: 300Mbps

Product size: Height 4.8, Width 5.9, Depth 2.2

Product weight: 100

About this product
Wireless LAN standard: IEEE802.11n/b/g
Transmission speed (theoretical): IEEE802.11n: up to 300Mbps
Frequency (center frequency): 2,400~2,484MHz
Security: SSID, WPA2-PSK, WPA-PSK, WEP
Terminal: AC plug
Supported protocol: TCP/IP (IPv6/IPv4)
› See more brands Elecom (ELECOM)
Wireless communication standards: 802.11n, 802.11b, 802.11g
Data transfer rate: 300 Megabits per second
Frequency band class: Dual band
Color: White, About this product
Wireless LAN standard: IEEE802.11n/b/g
Transmission speed (theoretical): IEEE802.11n: up to 300Mbps
Frequency (center frequency): 2,400~2,484MHz
Security: SSID, WPA2-PSK, WPA-PSK, WEP
Terminal: AC plug
Supported protocol: TCP/IP (IPv6/IPv4)
› See more

Shipping size: Height 22.2, Width 12.9, Depth 5.2

Shipping weight: 180

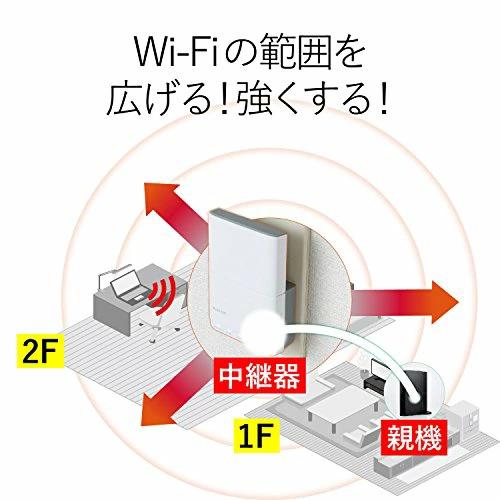

Ideal for customers where Wi-Fi (wireless LAN) signals do not reach or are difficult to reach in bedrooms or children's rooms on different floors separated from the wireless router, or in bathrooms and toilets with structures like reinforced concrete that hinder wireless signals

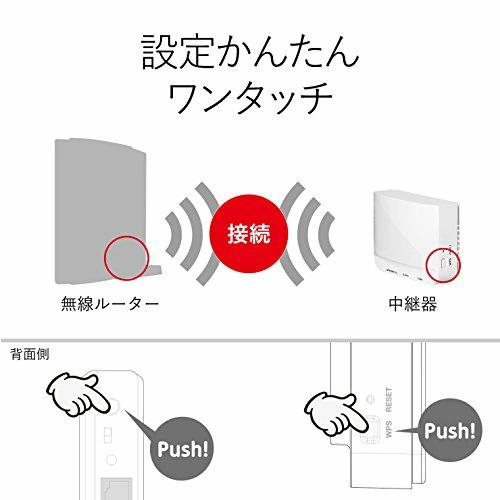

Setup is very simple; just press the WPS button on a WPS-compatible wireless router and this product to complete the connection.
You can connect wirelessly using the SSID and password for management, and by logging into the administrator web UI, you can manually set the connection with the main device.

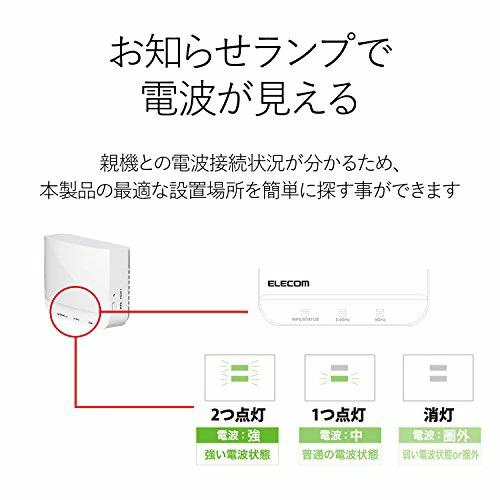

It has a lamp that indicates the wireless signal strength from the wireless router, making it easy to determine the appropriate installation location.
Because it is the industry’s smallest and directly plugs into the outlet, it can be neatly installed simply by inserting it into a wall outlet. Brand introduction surveyed in June 2014
We promise to provide a comfortable Wi-Fi environment at home

Elecom aims to provide home Wi-Fi routers that meet the three criteria of "easy for anyone to use immediately," "always prioritize safety and security," and "operate smoothly at all times."



Elecom is a comprehensive peripheral device manufacturer founded in Osaka in 1986.

We strive to create products and services that solve customer problems, are more enjoyable, more comfortable, and full of ingenuity.

Based on the idea of "creating high-value-added products and services and delivering joy to customers worldwide," we release over 2,000 new products every year.


Stationary router

Access the store


LAN cable

Access the store


Switching hub repeater

Access the store manufacturer’s description
11bgn 300Mbps wireless LAN repeater

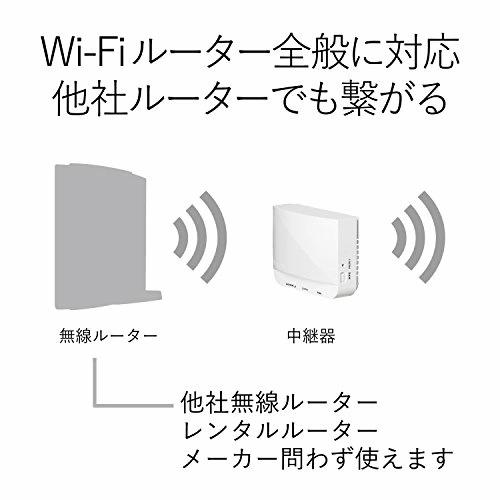

This is a wireless LAN repeater that extends the radio wave from the wireless router to expand the Wi-Fi usage range. It improves weak signals and ensures the signal reaches every corner of the house. It can also be plugged into household electrical outlets without interference from appliances.

Features

Ideal for customers where Wi-Fi signals do not reach or are difficult to reach in bedrooms or children's rooms on different floors separated from the wireless router, or in bathrooms and toilets with structures like reinforced concrete that hinder wireless signals.
Setup is very simple; just press the WPS button on a WPS-compatible wireless router and this product to complete the connection.
You can connect wirelessly using the SSID and password for management, and by logging into the administrator web UI, you can manually set the connection with the main device.
It has a lamp that indicates the wireless signal strength from the wireless router, making it easy to determine the appropriate installation location.
Because it is the directly plug-in type, it can be neatly installed simply by inserting it into a wall outlet.

Specifications

Supported OS Mac: macOS 10.13/10.12, Mac OS X 10.11/10.10/10.9/10.8/10.7/10.6/10.5
Setup tool compatible browsers: Internet Explorer 11, Edge, Chrome for Android, Safari for Mac OS, Safari for iOS, Safari for iPadOS. Initial setup and internet connection settings are supported using the built-in web browsers.
Wireless standards: IEEE802.11n, IEEE802.11b, IEEE802.11g
Wireless transmission methods: IEEE802.11n: MIMO-OFDM, IEEE802.11g: OFDM, IEEE802.11b: DS-SS
Wireless transmission speed (theoretical): IEEE802.11n: up to 300Mbps, IEEE802.11g: up to 54Mbps, IEEE802.11b: up to 11Mbps
Frequency band: 2.4GHz 2400-2484MHz
Channels: 2.4GHz band: 1-13ch
Wireless security: SSID stealth setting available, WPA2-PSK AES, WPA-PSK TKIP/AES, WEP 64bit/128bit
Configuration method: WPS compatible

Number of antennas: Built-in antennas 2, 2.4GHz band: transmit and receive 2
Supported protocol: TCP/IP IPv6/IPv4
Input voltage: AC100-240V 50/60Hz 0.2A
Maximum power consumption: approximately 1.6W
Power connector: AC plug
Power-saving features: LED power saving
External dimensions (W x D x H): approximately 58.5mm x 22mm x 47.5mm
Weight: approximately 40g (main unit only)
Housing material and color: Plastic, White
Operating environment: Temperature: 0-40°C, Humidity: 10-85%, no condensation
Installation type: Directly plug into outlet
