Code: 4549550230278

Brand: ELECOM

Specifications: AD-CHDMI2BK

Product color: 1) Docking station only

Product weight: 63

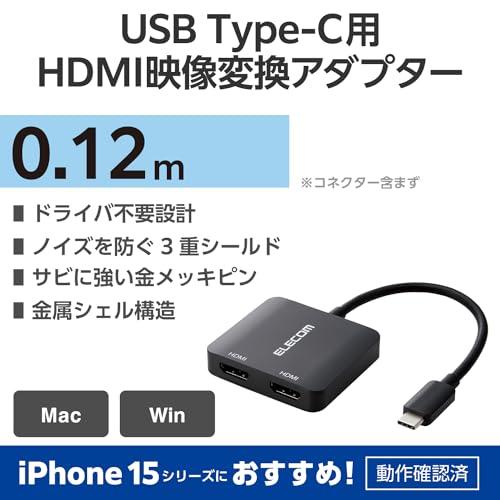

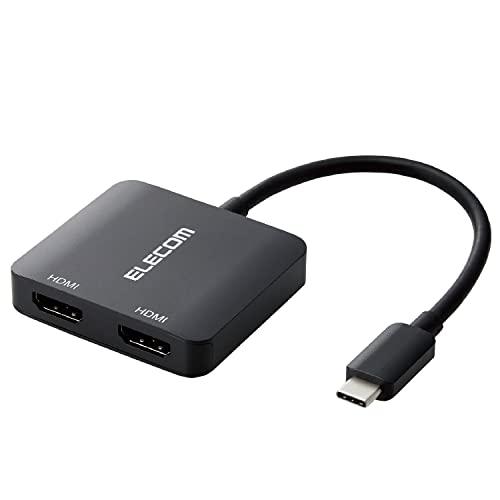

About this product
This is a USB Type-C™ HDMI video converter adapter that converts the video signal of devices equipped with a USB Type-C™ port and outputs to displays such as monitors, TVs, or projectors with HDMI input ports.
Conversion from HDMI to USB Type-C™ is not possible. HDMI supports audio output. If the video is not displayed correctly, try turning the power on/off of the connected display or disconnecting and reconnecting each connector. It may not operate properly depending on the environment and devices. It does not guarantee operation with all devices. When outputting video with this product, ensure that the output device supports DisplayPort Alt Mode. Multiple connections of the conversion adapters may cause video distortion or no video display.
Supports resolution of 4K (3840 x 2160) / 60Hz.
Can output images simultaneously to two displays via two HDMI ports (3840 x 2160 / 60Hz). The connected displays must support (3840 x 2160 / 60Hz).
No driver required; simply connect the devices to use.
Supports HDCP 1.4 / HDCP 2.2, DPCP 1.0 copyright protection technologies.
Supports extended mode, which displays added displays as one screen, and mirror mode, which displays the same screen as the first display. On Mac, maximum of 2 screens can be displayed in extended mode. (The same screen is displayed on external displays.)
Device monitor to increase the number of displayed items
Connector type: HDMI
Color: 1) Docking station only
Brand: ELECOM
Product weight: 63 grams
This is a USB Type-C™ HDMI video converter adapter that converts the video signal of devices equipped with a USB Type-C™ port and outputs to displays such as monitors, TVs, or projectors with HDMI input ports.
Conversion from HDMI to USB Type-C™ is not possible. HDMI supports audio output. If the video is not displayed correctly, try turning the power on/off of the connected display or disconnecting and reconnecting each connector. It may not operate properly depending on the environment and devices. It does not guarantee operation with all devices. When outputting video with this product, ensure that the output device supports DisplayPort Alt Mode. Multiple connections of the conversion adapters may cause video distortion or no video display.
Supports resolution of 4K (3840 x 2160) / 60Hz.
Can output images simultaneously to two displays via two HDMI ports (3840 x 2160 / 60Hz). The connected displays must support (3840 x 2160 / 60Hz).
No driver required; simply connect the devices to use.
Supports HDCP 1.4 / HDCP 2.2, DPCP 1.0 copyright protection technologies.
Supports extended mode, which displays added displays as one screen, and mirror mode, which displays the same screen as the first display. On Mac, maximum of 2 screens can be displayed in extended mode. (The same screen is displayed on external displays.)
Increase the number of displayed items

Shipping size: Height 17.8, Width 8.3, Depth 2.3

Shipping weight: 70

Specifications
Compatible devices: Computers with video output supported USB Type-C™ ports and monitors with HDMI input ports, etc.
Standards: HDCP 1.4 / HDCP 2.2, DPCP 1.0
Connector shape: USB Type-C™ male - HDMI female 2
Cable type: Normal type
Supported resolution: 4K (3840 x 2160) / 60Hz, simultaneous output on 2 ports
Shielding method: Triple-shielded
Plug plating: Shell: Nickel, Pins: Gold-plated
Cable length: 0.12m (excluding connectors)
Cable thickness: 4.3mm
Color: Black
Environmental considerations: Complies with EU RoHS Directive (10 substances)

Description
This is a USB Type-C™ HDMI video converter adapter that converts the video signal of devices equipped with a USB Type-C™ port and outputs to displays such as monitors, TVs, or projectors with HDMI input ports.
Conversion from HDMI to USB Type-C™ is not possible. HDMI supports audio output. If the video is not displayed correctly, try turning the power on/off of the connected display or disconnecting and reconnecting each connector. It may not operate properly depending on the environment and devices. It does not guarantee operation with all devices. When outputting video with this product, ensure that the output device supports DisplayPort Alt Mode. Multiple connections of the conversion adapters may cause video distortion or no video display.
Supports resolution of 4K (3840 x 2160) / 60Hz.
Can output images simultaneously to two displays via two HDMI ports (3840 x 2160 / 60Hz). The connected displays must support (3840 x 2160 / 60Hz).
No driver required; simply connect the devices to use.
Supports HDCP 1.4 / HDCP 2.2, DPCP 1.0 copyright protection technologies.
Supports extended mode, which displays added displays as one screen, and mirror mode, which displays the same screen as the first display. On Mac, maximum of 2 screens can be displayed in extended mode. (The same screen is displayed on external displays.)
The inside of the adapter body adopts a metal shell structure with high shielding effect, making it less susceptible to external noise.
Uses a triple-shielded cable that is less affected by external noise interference.
Uses gold-plated pins that are resistant to rust and reduce signal deterioration.
USB Type-C and USB-C are trademarks of the USB Implementers Forum.
This product is an active type with an IC.
It meets one or more of our internal environmental certification standards and displays the "THINK ECOLOGY" mark.
Committed to environmental conservation, this product's packaging reduces plastic weight by more than 20% compared to our standard products.
The packaging of this product consists only of paper, cardboard, and plastic bags, contributing to environmental preservation.

Customer inquiries about the product
ELECOM General Information Center
TEL. 0570-084-465
FAX. 0570-050-012
Service hours / 10:00~19:00, open year-round


AC charger

Visit the store


Tap

Visit the store


Mobile battery

Visit the store


Mouse

Visit the store


Keyboard

Visit the store



ELECOM Corporation's mission is to enrich and make the lifestyles of customers more comfortable through peripheral devices such as smartphones, tablets, and PCs. Manufacturer's description
A video conversion adapter that outputs video signals from devices equipped with a USB Type-C port to displays with HDMI input ports.

Supports audio output.
If the video is not displayed correctly, try turning the power on/off of the connected display or disconnecting and reconnecting each connector.
It may not operate properly depending on the environment and devices.
It does not guarantee operation with all devices.
When outputting video with this product, ensure that the output device supports DisplayPort Alt Mode. 80 Conversion from HDMI connector to USB Type-C connector is not possible.
Conversion from HDMI connector to USB Type-C connector is not possible.

Features

Supports 4K (3840 x 2160) / 60Hz resolution

Supports resolution of 4K (3840 x 2160) / 60Hz.

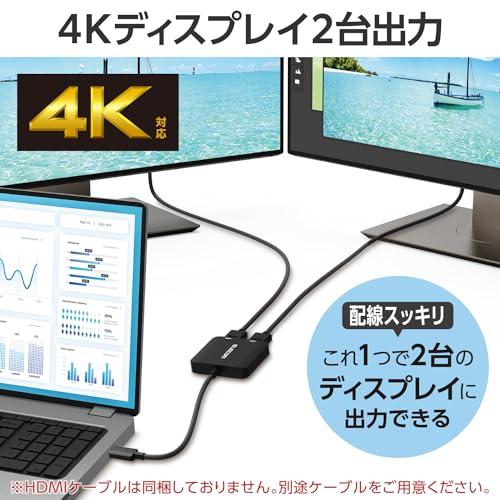

Capable of dual 4K display output

Allows each of two 4K displays to output at 3840 x 2160 / 60Hz.

Enables high-resolution viewing of videos and other content on external monitors.

The connected display must support (3840 x 2160 / 60Hz).

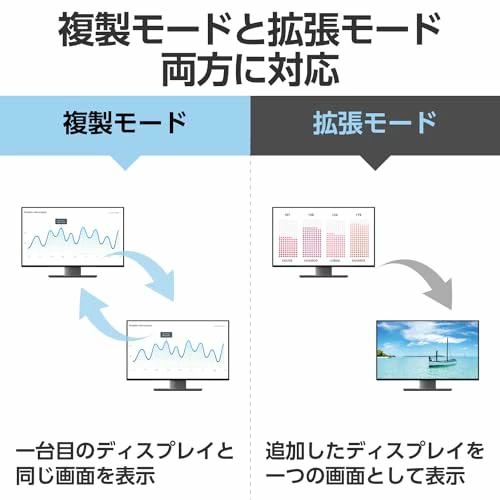

Supports extended mode and mirror mode.

Supports extended mode, which displays added displays as one screen, and mirror mode, which displays the same screen as the first display. On Mac, maximum of 2 screens can be displayed in extended mode. (The same screen is displayed on external displays.)

Maximum of 2 screens can be displayed in extended mode on Mac. (The same screen appears on external displays.)

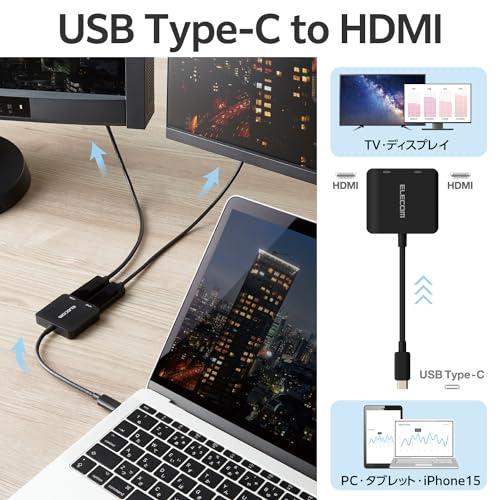

Connecting diagram
