Code: 4549550337878

Brand: Elecom (ELECOM)

Model: ECAD-CHDMI015B

Product color: Black

Size information: 0.15m

About this product

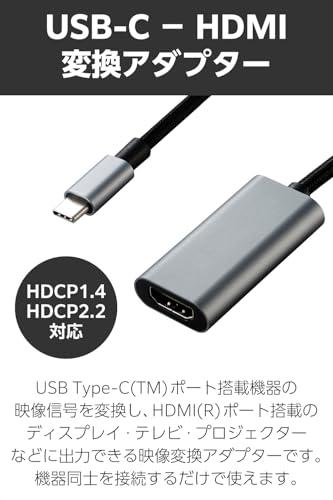

This is a video conversion adapter that converts the video signal of devices equipped with a USB Type-C(TM) port and outputs it to displays, TVs, projectors, etc., with an HDMI(R) port. It displays images vividly at a high resolution of 4K30Hz. The outer shell uses a highly durable mesh material.
This is a video conversion adapter that converts the video signal of devices equipped with a USB Type-C(TM) port and outputs it to displays, TVs, projectors, etc., with an HDMI(R) port. It displays images vividly at a high resolution of 4K30Hz. The outer shell uses a highly durable mesh material.
It can be used simply by connecting the devices. No driver installation or setup is required.
Supports HDCP1.4/HDCP2.2 copyright protection technology.
Displays images vividly at a high resolution of 4K2K (3840 2160/30Hz).
› See more compatible devices: USB Type-C plug side: DisplayPort(TM) Alt Mode compatible USB Type-C port-equipped computers, etc.
Product usage: Use with TV, headphones, speakers
Connector types: USB Type-C, HDMI
Color: Black
Brand: Elecom (ELECOM) About this product
This is a video conversion adapter that converts the video signal of devices equipped with a USB Type-C(TM) port and outputs it to displays, TVs, projectors, etc., with an HDMI(R) port. It displays images vividly at a high resolution of 4K30Hz. The outer shell uses a highly durable mesh material.
This is a video conversion adapter that converts the video signal of devices equipped with a USB Type-C(TM) port and outputs it to displays, TVs, projectors, etc., with an HDMI(R) port. It displays images vividly at a high resolution of 4K30Hz. The outer shell uses a highly durable mesh material.
It can be used simply by connecting the devices. No driver installation or setup is required.
Supports HDCP1.4/HDCP2.2 copyright protection technology.
Displays images vividly at a high resolution of 4K2K (3840 2160/30Hz).
› See more

Shipping size: Height 13, Width 11.6, Depth 1.4

Shipping weight: 20

Specifications
Connector shape 1: USB Type-C plug
Connector shape 2: HDMI(R) port (Type A 19-pin)
Compatible devices: USB Type-C plug side: DisplayPort Alt Mode compatible USB Type-C port-equipped computers, etc.
Compatible devices: HDMI port side: HDMI cable / display, projector, etc.
Maximum supported resolution: 4K (3840 x 2160px) / 30Hz
Cable type: Mesh type
Cable length: approximately 15cm (excluding connectors)
Cable diameter: approximately 4.5mm
Color: Black
Packaging: Bag + Seal
Environmental considerations: Complies with EU RoHS Directive (10 substances), THINK ECOLOGY mark

Description
This is a video conversion adapter that converts the video signal of devices equipped with a USB Type-C port and outputs it to displays, TVs, projectors, etc., with an HDMI port. It displays images vividly at a high resolution of 4K30Hz. The outer shell uses a highly durable mesh material.
It can be used simply by connecting the devices. No driver installation or setup is required.
Supports HDCP1.4/HDCP2.2 copyright protection technology.
Displays images vividly at a high resolution of 4K2K (3840 x 2160/30Hz).
Supports multi-display (screen extension) to display added displays as one screen, and mirroring (screen duplication) to display the same screen as the first display.

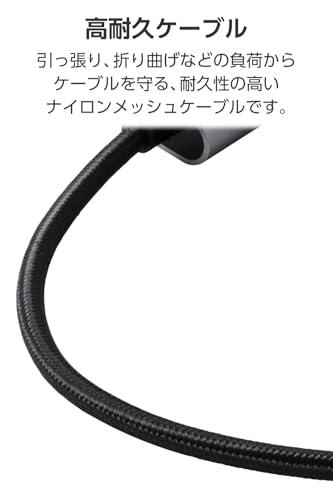

Made of durable nylon mesh cable that protects against pulling, bending, and other stresses.

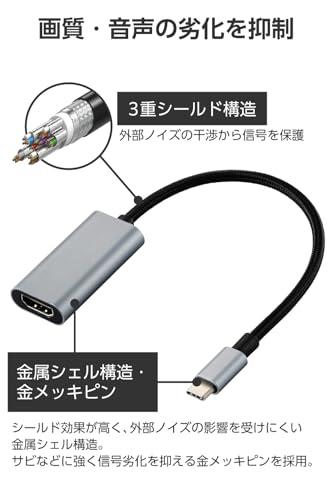

Inside the adapter body, a metal shell structure with high shielding effect is adopted to resist external noise interference.
Uses a triple-shielded cable that is less susceptible to external noise interference.
Features gold-plated pins that are resistant to rust and reduce signal deterioration.
This product is an active type with an IC. No video conversion cable is included with this product. Please prepare a separate HDMI cable. Conversion from HDMI to USB Type-C is not possible. Supports audio output. If the image is not displayed correctly, try turning the connected display on/off or disconnecting and reconnecting the connectors. May not operate properly depending on the environment and devices. Does not guarantee operation with all devices. When using this product for video output, ensure that the output device supports DisplayPort Alt Mode. Video app testing on iPhone, remote play testing on PS5, and connection testing with car navigation systems have not been performed. USB Type-C and USB-C are trademarks of USB Implementers Forum.
This product complies with the EU RoHS Directive (10 substances), making it environmentally friendly.
This product meets at least one of our internal environmental standards and displays the 'THINK ECOLOGY' mark.
This product is environmentally conscious, with packaging that reduces plastic weight by more than 20% compared to our standard products.
This product is environmentally conscious, with packaging made only of paper, cardboard, or plastic bags.

Product inquiries
Elecom General Information Center
TEL. 0570-084-465
FAX. 0570-050-012
Hours: 10:00 - 19:00, open year-round
Chat support is also available. For details, see 8056.jp. Brand introduction



Top 4 popular keyboards


Top 4 popular chargers and mobile batteries


Top 4 popular mice with manufacturer explanations

Supported devices list

Smartphones

Apple iPhone 15, iPhone 15 Plus, iPhone 15 Pro, iPhone 15 Pro Max, iPhone 16, iPhone 16 Plus, iPhone 16 Pro, iPhone 16 Pro Max

Google Pixel 8a, Pixel 9, Pixel 9 Pro, Pixel 9 Pro Fold, Pixel 9 Pro XL

Motorola edge 50s pro

Samsung Galaxy Z Flip6, Galaxy Z Fold6, Galaxy S24 (SC-51E), S24 Ultra (SC-52E), Z Flip6 (SC-54E), Z Fold6 (SC-55E), S23 FE (SCG24), S24 (SCG25)

SONY Xperia 1 VI (SO-51E), Xperia 1 VI (SOG13), Xperia 1 VI

SHARP AQUOS R9 (SH-51E)

Fujitsu arrows We2 Plus (F-51E)

Others: LEITZ PHONE 3 (Android 14), Xiaomi 14 Ultra

Tablet PCs

Apple iPad Pro (6th generation), iPad mini (A17 Pro)

Chromebooks

Chromebook Flip C214MA, Chromebook 311 (C721-N14N), Chromebook S330, Chromebook x360

OS

macOS 14 (macOS 14 Sonoma)

Windows 10, Windows 11

Unsupported models list

Smartphones

Apple iPhone 16e

Motorola razr 40s, razr 50s, moto g24, g64 5G, g64y 5G, edge 40 neo

OPPO A79 5G, Reno 11 A

Samsung Galaxy A55 5G (SC-53E), A55 5G (SCG27)

SHARP Aquos wish4 (SH-52E)

SONY Xperia 10 VI (SO-52E), Xperia 10 VI (SOG14)

Fujitsu arrows We2 (F-52E), arrows We2 (FCG02)

Others:安心ファミリースマホ, DuraForce EX, DuraForce EX (KY-51D), Libero 5G IV, Libero Flip, Nothing Phone (2a), nubia Flip 5G, nubia Ivy, Orbic JOURNEY Pro 4G

Tablets

aiwa AIWA Tab AB10L, AB10L-2

Galaxy Galaxy Tab S9 FE+ 5G (SCT22)

Google Google Pixel Tablet

Lenovo Lenovo TAB7, Tab M10a 5G (LET02)

NEC LAVIE Tab T10d

Orbic Orbic TAB10R 4G, TAB8 4G
