Code: 4549550301947

Brand: ELECOM (エレコム)

Model: DST-W05

Product color: Silver

About this product

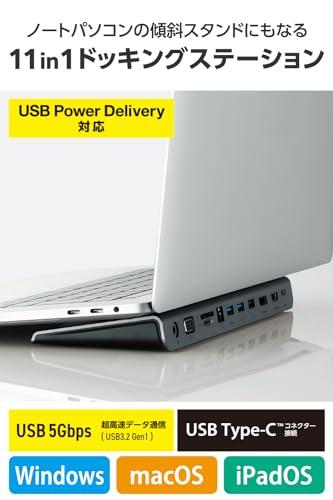

This is a docking station that can also serve as a tilt stand for a laptop.
It has anti-slip pads on both the front and back surfaces of the main body. It can be used reversibly to match the position of the laptop's USB Type-C(TM) connector.

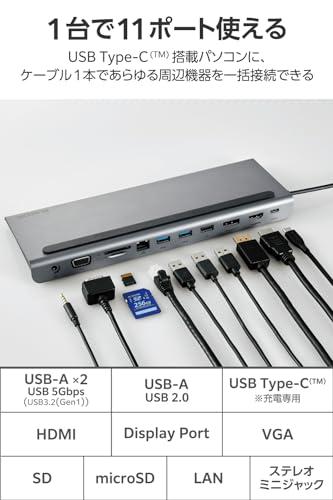

With a single cable, it allows you to connect all peripherals to a computer equipped with a USB Type-C connector. In addition to USB ports, it features LAN port, SD card slot, 3.5mm 4-pole stereo mini jack, and video output ports.
Video output includes HDMI, DisplayPort(TM), and VGA ports. It also supports USB Power Delivery.
It connects to the computer with support for USB 5Gbps (USB3.2 (Gen1)), enabling ultra-high-speed data transfer at up to 5Gbps (theoretical value).
It has one USB Type-C port that supports USB Power Delivery.
It supports USB Power Delivery, capable of supplying up to 100W of power to devices or the main unit via the USB Type-C connector.
Increases display options, brand ELECOM (エレコム)
Color: Silver
Hardware interfaces: VGA, HDMI, USB 3.2 Gen 1, USB-C, DisplayPort
Supported devices: MacBook, iPad Air, MacBook Pro, iPad, Windows 11/10
Total USB ports: 4
Number of ports: 11
Total HDMI ports: 1
Manufacturer: ELECOM
About this product
This is a docking station that can also serve as a tilt stand for a laptop.
It has anti-slip pads on both the front and back surfaces of the main body. It can be used reversibly to match the position of the laptop's USB Type-C(TM) connector.
With a single cable, it allows you to connect all peripherals to a computer equipped with a USB Type-C connector. In addition to USB ports, it features LAN port, SD card slot, 3.5mm 4-pole stereo mini jack, and video output ports.
Video output includes HDMI, DisplayPort(TM), and VGA ports. It also supports USB Power Delivery.
It connects to the computer with support for USB 5Gbps (USB3.2 (Gen1)), enabling ultra-high-speed data transfer at up to 5Gbps (theoretical value).
It has one USB Type-C port that supports USB Power Delivery.
It supports USB Power Delivery, capable of supplying up to 100W of power to devices or the main unit via the USB Type-C connector.
Increase display options

Shipping size: Height 31cm, Width 13.2cm, Depth 3.1cm

Shipping weight: 440g

Specifications
Supported OS (Windows): Windows 11/10
Supported OS (mac): macOS Sonoma 14 / macOS Ventura 13 / macOS Monterey 12
Supported OS (iPadOS): iPadOS 17/16
Supported OS notes: May require updates to the latest versions of each OS or installation of service packs.
Supported devices: iPad / iPad Air / MacBook / MacBook Pro
Connector specifications (upstream): USB Type-C(TM) connector, supports USB 5Gbps (USB3.2 (Gen1)), supports USB Power Delivery (max input 100W / max output 85W), supports DisplayPort(TM) Alt mode (when connected via USB2.0, operates compatibly with USB2.0 (video output not supported in USB2.0 mode))
Downstream USB ports: 1: USB Type-C port, max output 85W, charging only, supports USB Power Delivery
Downstream USB ports: 2: USB-A port, supports USB 5Gbps (USB3.2 (Gen1)), total power supply: 15W (5V/1.5A) for 2 ports
Downstream USB ports: 3: USB-A port, supports USB 2.0, power supply: 5W (5V/1A)
Note: This product is designed to expand USB ports. It is not recommended to use it to charge smartphones or tablets.
Video output port (downstream): 1: HDMI, supports maximum resolution 4K/60Hz
Video output port (downstream): 2: DisplayPort(TM), supports maximum resolution 4K/60Hz
Video output port (downstream): 3: VGA, supports maximum resolution 1920x1080/60Hz
When HDMI and DisplayPort are connected simultaneously, maximum resolution for HDMI is 4K/30Hz, for DisplayPort is 1920x1080/60Hz.
When HDMI and VGA are connected simultaneously, maximum resolution for HDMI is 4K/30Hz, for VGA is 1920x1080/60Hz.
When DisplayPort and VGA are connected simultaneously, maximum resolution for DisplayPort is 4K/30Hz, for VGA is 1920x1080/60Hz.
When HDMI, DisplayPort, and VGA are connected simultaneously, maximum resolution for all is 1920x1080/60Hz.
In case of connection via VGA, the maximum resolution for macOS is 1920x1080/60Hz.
LAN port (downstream): RJ-45 (supports 1000BASE-T/100BASE-TX/10BASE-T)
SD card reader (downstream): 1: SD memory card, supported media: SD (HighSpeed / ProHighSpeed / Class2 / 4 / 6 / 10), SDHC (Class2 / 4 / 6 / 10 / UHS-I), SDXC (Class10 / UHS-I)
Micro SD card reader (downstream): 2: microSD memory card, supported media: microSD, microSDHC (Class2 / 4 / 6 / 10 / UHS-I), microSDXC (Class10 / UHS-I)
Audio port (downstream): 3.5mm 4-pole stereo mini jack (CTIA standard)
Power supply method: Bus-powered
Cable length: approximately 15cm, excluding connectors
Color: Silver

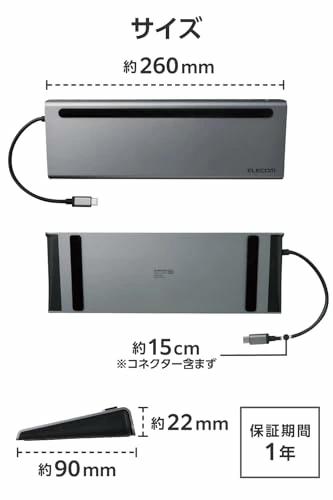

External dimensions: approximately 260mm width, 90mm depth, 22mm height, excluding cable
Operating environment: Temperature 5~40°C, Humidity 30~80%, no condensation
Warranty period: 1 year

Description
This is a docking station that can also serve as a tilt stand for a laptop.
It has anti-slip pads on both the front and back surfaces of the main body. It can be used reversibly to match the position of the laptop's USB Type-C(TM) connector.
With a single cable, it allows you to connect all peripherals to a computer equipped with a USB Type-C connector. In addition to USB ports, it features LAN port, SD card slot, 3.5mm 4-pole stereo mini jack, and video output ports.
Video output includes HDMI, DisplayPort(TM), and VGA ports. It also supports USB Power Delivery.
It connects to the computer with support for USB 5Gbps (USB3.2 (Gen1)), enabling ultra-high-speed data transfer at up to 5Gbps (theoretical value).
It has one USB Type-C port that supports USB Power Delivery.

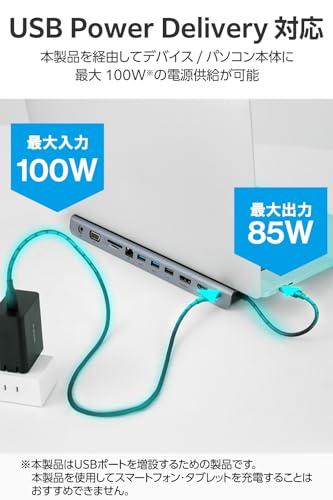

It supports USB Power Delivery, capable of supplying up to 100W of power to devices or the main unit via the USB Type-C connector.
By connecting a USB Type-C power adapter, you can charge the main unit through this product.
Since it consumes up to 15W as the drive power for the product itself, the actual output power is up to 85W.
If 85W power delivery is required, please prepare a 100W output charger.

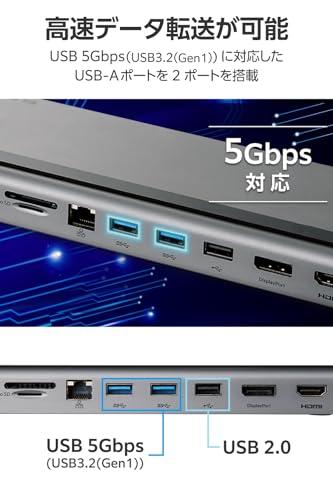

It has two USB-A ports supporting USB 5Gbps (USB3.2 (Gen1)) and one USB-A port supporting USB 2.0.
This product is designed to expand USB ports. It is not recommended to use the USB ports for data transfer to charge smartphones or tablets.

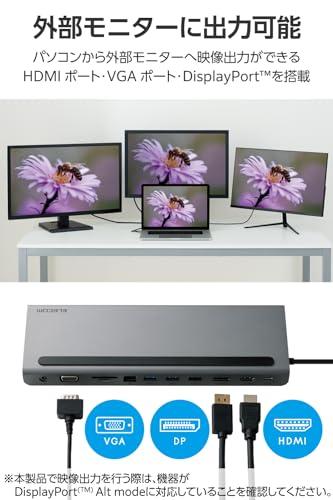

It features HDMI, VGA, and DisplayPort for video output from the computer to external monitors.
When using this product for video output, ensure that the device supports DisplayPort Alt mode.
When HDMI and DisplayPort are connected simultaneously, maximum resolution for HDMI is 4K/30Hz, for DisplayPort is 1920x1080/60Hz.
When HDMI and VGA are connected simultaneously, maximum resolution for HDMI is 4K/30Hz, for VGA is 1920x1080/60Hz.
When DisplayPort and VGA are connected simultaneously, maximum resolution for DisplayPort is 4K/30Hz, for VGA is 1920x1080/60Hz.
When HDMI, DisplayPort, and VGA are connected simultaneously, maximum resolution for all is 1920x1080/60Hz.
In case of connection via VGA, the maximum resolution for macOS is 1920x1080/60Hz.
It is equipped with a LAN port for wired network connection to a computer.
It has SD card slots supporting SDXC/SDHC and microSD cards.
It features a 3.5mm 4-pole stereo mini jack for headphones/microphone, commonly used in smartphones.
The USB Type-C connector is reversible, allowing insertion without regard to orientation.
It can only be used with computers that have a standard USB Type-C connector.
It uses an aluminum chassis with excellent heat dissipation and noise resistance, giving it a premium feel.
The cable is a fixed type, approximately 15cm long, so there is no risk of losing it.
If the main unit does not support charging via the USB Type-C connector, charging the main unit through this product's USB Type-C connector is not possible.
