Code:4953103356078

Brand:ELECOM

Standard: TK-TDP019BK

Product color: Black

Size information: Single item

Product size: Height 2.2cm, Width 9cm, Depth 12.8cm

Product weight: 181.4g

About this product
This wireless slim keypad features a thickness of only 6.5mm at its thinnest part, allowing use regardless of location.
It adopts a "scissor mechanism" key type, which can be pressed with the same light force as a laptop keyboard.
By embedding a metal plate under each key top, it provides a firm typing feel and stability.
Despite its compact size, it uses a key pitch of 19mm, making it easy to type.
Each key is independently designed with an "isolation design," making it less likely for long nails to get caught and enabling comfortable typing.
› See more brands ELECOM
Compatible devices: Windows OS equipped with USB ports, macOS-equipped machines
Connection technology: USB-A
Keyboard description: Scissor mechanism
Product recommended use: for computers
Features: Slim design
Color: Black
Number of keys: 20
Style: Wireless 2.4GHz
Product dimensions: 12.8cm length x 9cm width x 2.2cm height
About this product
This wireless slim keypad features a thickness of only 6.5mm at its thinnest part, allowing use regardless of location.
It adopts a "scissor mechanism" key type, which can be pressed with the same light force as a laptop keyboard.
By embedding a metal plate under each key top, it provides a firm typing feel and stability.
Despite its compact size, it uses a key pitch of 19mm, making it easy to type.
Each key is independently designed with an "isolation design," making it less likely for long nails to get caught and enabling comfortable typing.
› See more

Shipping size: Height 24.5cm, Width 13cm, Depth 3.5cm

Shipping weight: 180g

Specifications
Interface: USB
Connector shape: USB-A male
Supported models: Windows OS equipped with USB ports, macOS-equipped machines
Supported OS: Windows 11, Windows 10, Windows 8.1, Windows 7, Windows XP, macOS High Sierra (10.13). Updates to the latest versions of each OS and service pack installation may be required.
Color: Black
Communication method: GFSK
Radio frequency: 2.4GHz
Radio reach: About 3m when used on ferromagnetic surfaces (iron desks, etc.), about 10m when used on non-ferromagnetic surfaces (wooden desks, etc.). These are test values in our environment and not guaranteed.
Key type: Scissor mechanism
Key layout: 20 keys
Key pitch: 19.0mm
Key stroke: 2.0mm
Power source (keyboard main unit): One AAA alkaline dry cell, one AAA manganese dry cell, or one AAA nickel-metal hydride secondary battery
Expected battery usage period: Approx. 1 year with alkaline batteries (our test value)
External dimensions (keyboard main unit): Width 89.6mm, Depth 127.5mm, Height 21.5mm
Weight (keyboard main unit): About 100g (excluding batteries)
External dimensions (receiver): Width 19.5mm, Depth 15.7mm, Height 6.5mm
Weight (receiver): About 2g
Accessories: User manual 1, One AAA alkaline dry battery for operation check 1, Receiver unit 1

Explanation
This wireless slim keypad features a thickness of only 6.5mm at its thinnest part, allowing use regardless of location.
It adopts a "scissor mechanism" key type, which can be pressed with the same light force as a laptop keyboard.
By embedding a metal plate under each key top, it provides a firm typing feel and stability.
Despite its compact size, it uses a key pitch of 19mm, making it easy to type.
Each key is independently designed with an "isolation design," making it less likely for long nails to get caught and enabling comfortable typing.
Equipped with a Tab key, useful for work in Excel, and a 00 key, convenient for entering numbers.
Features an LED indicator that shows the ON/OFF status of Num Lock at a glance.
Easy setup by simply connecting the included receiver to a computer's USB port; wireless and cable-free for a clean setup.
Uses a super-compact micro receiver that is less likely to interfere when connected to a laptop or similar device's USB port.
Has a power ON/OFF switch on the front of the main body.
Includes a battery level indicator lamp that notifies when it's time to replace the batteries.
No need to install dedicated drivers; just connect to a computer's USB port and start using immediately.

Customer inquiries about the product
ELECOM General Information Center
TEL. 0570-084-465
FAX. 0570-050-012
Reception hours: 10:00~19:00, open year-round



ELECOM Corporation's mission is to enrich and make our customers' lifestyles more comfortable through peripheral devices for smartphones, tablets, and computers.



Wireless 2.4GHz, Bluetooth connection, wired connection without batteries, and a variety of options such as silent, slim, scissor mouse sets are available to suit your preferences.


Bluetooth connection wireless keyboard

Wireless 2.4GHz connection wireless keyboard

Wired keyboard

Explanation by keypad manufacturer

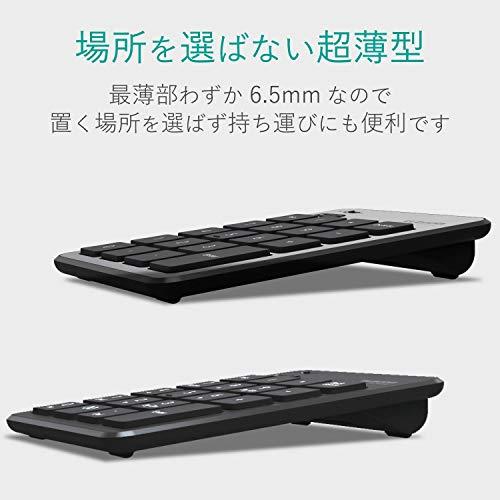

Thin design with a thinnest part of 6.5mm, wireless slim keypad that can be used anywhere

Thin design with a thinnest part of 6.5mm, wireless slim keypad that can be used anywhere

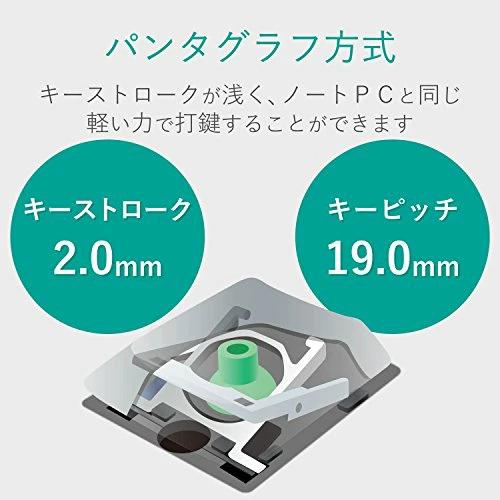

Adopts a scissor mechanism

Key type adopts a "scissor mechanism" that can be pressed with the same light force as a laptop keyboard.

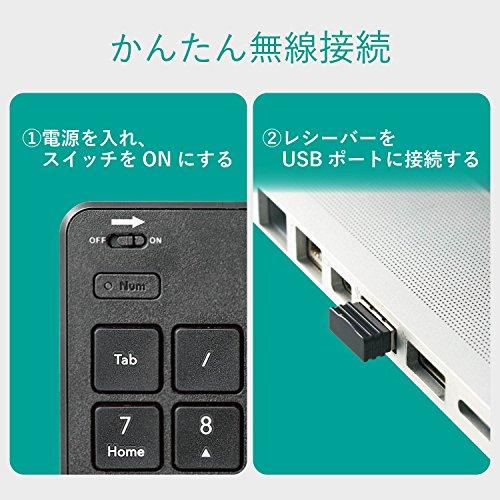

Cable-free, tidy wireless type

Easy setup by connecting the included receiver to a computer's USB port; wireless and cable-free for a clean setup. Uses a super-compact micro receiver that is less likely to interfere when connected to a laptop or similar device's USB port.

Uses a key pitch of 19mm, easy to type

Despite its compact size, it features a key pitch of 19mm for comfortable typing.

Power ON/OFF switch

Equipped with a power ON/OFF switch on the front of the main body.

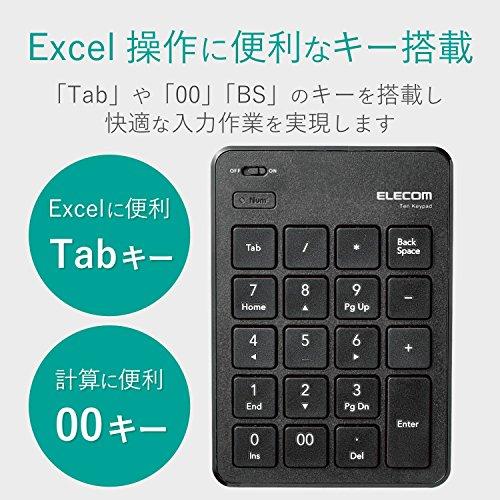

Includes Tab key and 00 key

Equipped with a Tab key for work in Excel and a 00 key for convenient number input.
