Code: 4549550143745

Brand: ELECOM

Model: SP-PCBS01UWH

Product Color: White

Product Dimensions: 3.3 x 9.1 x 2.6 inches

Product Weight: 460

About this product

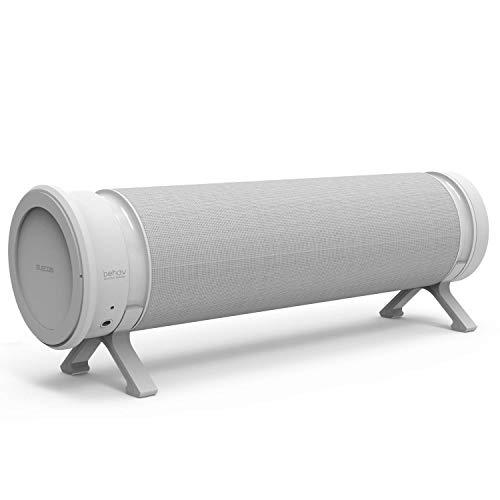

This is the Behav (Behave) mini soundbar speaker that can be used in various scenes regardless of the connected device such as PCs, smartphones/tablets, and TVs.

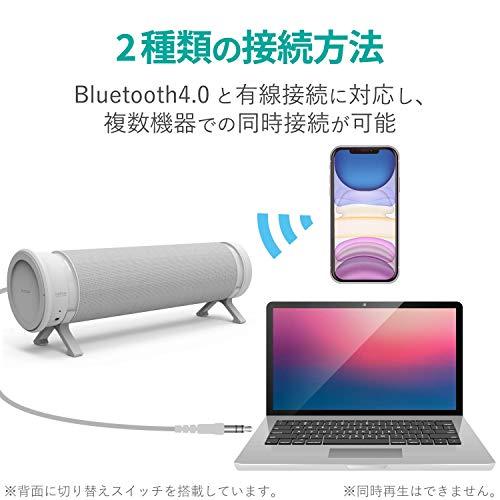

Music playback supports both wired (stereo mini plug) and Bluetooth(R) connections, allowing playback from multiple devices such as PCs and smartphones. Simultaneous playback via wired and Bluetooth(R) is not possible.

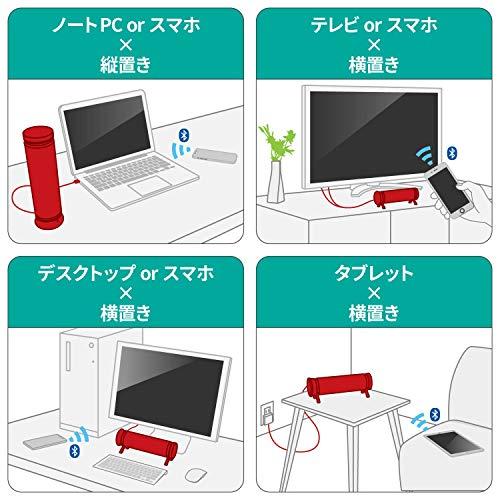

Supports both vertical and horizontal placement, allowing for setup according to the scene. For horizontal placement, attach the dedicated stand.

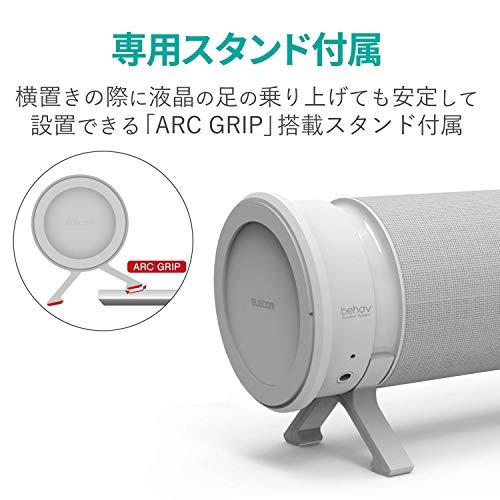

The dedicated stand has anti-slip features to secure the speaker.

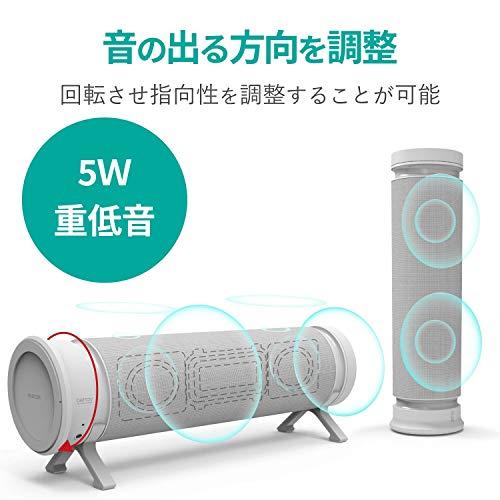

When placed horizontally, the direction of sound can be adjusted by rotating the main unit on the stand, allowing for directional adjustment.
› See more Brand ELECOM
Connectivity Technology Bluetooth, USB
Mounting Type Tabletop Mount
Model Name SP-PCBS01UWH
Speaker Type Soundbar About this product
This is the Behav (Behave) mini soundbar speaker that can be used in various scenes regardless of the connected device such as PCs, smartphones/tablets, and TVs.
Music playback supports both wired (stereo mini plug) and Bluetooth(R) connections, allowing playback from multiple devices such as PCs and smartphones. Simultaneous playback via wired and Bluetooth(R) is not possible.
Supports both vertical and horizontal placement, allowing for setup according to the scene. For horizontal placement, attach the dedicated stand.
The dedicated stand has anti-slip features to secure the speaker.
When placed horizontally, the direction of sound can be adjusted by rotating the main unit on the stand, allowing for directional adjustment.
› See more

Shipping Weight: 10.1 ounces

Shipping Weight: 460

Specifications
Speaker unit: φ43mm full range x 2
Speaker type: Sealed (passive radiator system)
Practical maximum output: 5W (2.5W + 2.5W)
Impedance: 4Ω
Frequency response: 140Hz-20kHz
Input terminal shape: Power input: USB-A male connector / Signal input: Φ3.5 stereo mini plug
Cable length: USB (power) cable: approx. 100cm / Φ3.5 (audio) cable: approx. 100cm
Output shape: Φ3.5 stereo mini jack (for headphones) 4-pole plug not supported
Communication method: Bluetooth standard Ver. 5.0
Output: Bluetooth power class 2
Maximum communication distance: Approx. 10m (line of sight)
Frequency band used: 2.4GHz band
Supported profiles: A2DP
Supported codecs: SBC
Content protection: SCMS-T
Transmission band (A2DP): 20Hz-20kHz (at 44.1kHz sampling)
Maximum number of registered devices: 8
Multi-point: Not supported
External dimensions: W: 230 D: 66 H: 66mm (85mm with stand attached)
Warranty period: 6 months
Legal compliance: TELEC
Conforming standard: BQB
Accessories: 2 dedicated stands, instruction manual

Description
This is the Behav (Behave) mini soundbar speaker that can be used in various scenes regardless of the connected device such as PCs, smartphones/tablets, and TVs.
Music playback supports both wired (stereo mini plug) and Bluetooth(R) connections, allowing playback from multiple devices such as PCs and smartphones. Simultaneous playback via wired and Bluetooth(R) is not possible.
Supports both vertical and horizontal placement, allowing for setup according to the scene. For horizontal placement, attach the dedicated stand.
The dedicated stand has anti-slip features to secure the speaker.
When placed horizontally, the direction of sound can be adjusted by rotating the main unit on the stand, allowing for directional adjustment.
Equipped with 2.5W+2.5W amplifiers and two φ43mm drivers, it reproduces balanced and stable sound.
Equipped with a passive radiator, it reproduces powerful low bass despite its compact size.
Does not support calls as it does not have a microphone.
Requires USB power supply for operation as it does not have a built-in battery.

Inquiries about the product
ELECOM General Information Center
TEL. 0570-084-465
FAX. 0570-050-012
Reception hours / 10:00-19:00 Year-round Brand introduction


AC adapter

Visit Store


Power strip

Visit Store


Mobile battery

Visit Store


Mouse

Visit Store


Keyboard

Visit Store



ELECOM Co., Ltd. aims to enrich and improve the lifestyles of its customers through peripheral devices such as smartphones, tablets, and PCs. Manufacturer's description

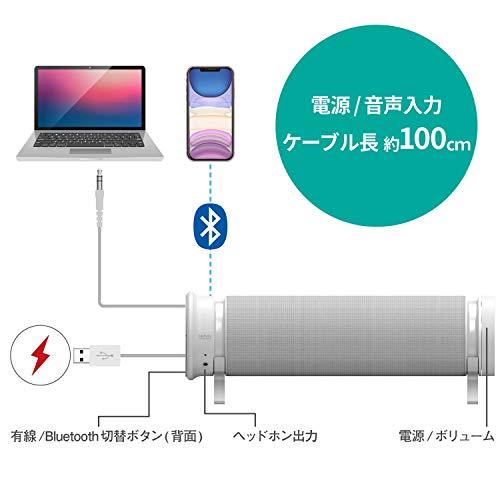

Wired connection method

STEP 1

Connect the USB connector for power to

a USB charger or USB port and

turn on the power switch.

Output 1.5A or higher recommended

STEP 2

Connect the 3.5mm stereo mini plug to the audio source device's jack.

STEP 3

Press the mode switching button for 1 second to complete pairing.

Bluetooth connection method

STEP 1

Connect the USB connector for power to

a USB charger or USB port and

turn on the power switch.

Output 1.5A or higher recommended

STEP 2

Press and hold the mode switching button for 3 seconds or more to enter pairing mode.

STEP 3

Select "SP-PCBS01U" from the connected device such as a smartphone.

STEP 4

Pairing is complete when the LED lamp flashes twice every 5 seconds.
